AIRBAG, ECM/PSM, HVAC/IPC IGN 1, TRANS/IGN 1 Fuses

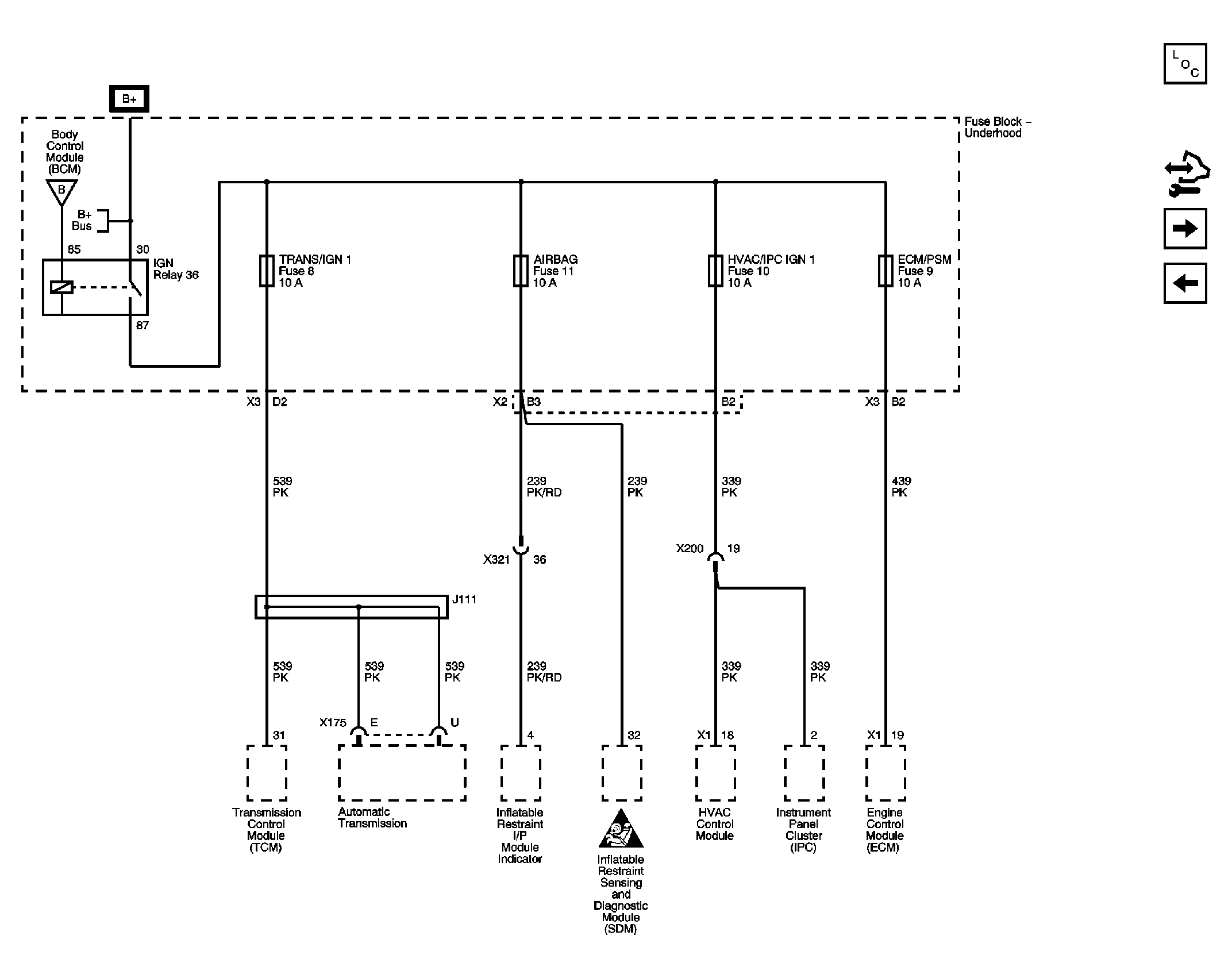

Fig 1: AIRBAG, ECM/PSM, HVAC/IPC IGN 1, TRANS/IGN 1 Fuses Wiring Schematic

GM2398596

Courtesy of GENERAL MOTORS COMPANY
