AIR PUMP, AIR SOL, ECM/CRNK, EMIS DEV, FUEL INJ ODD Fuses

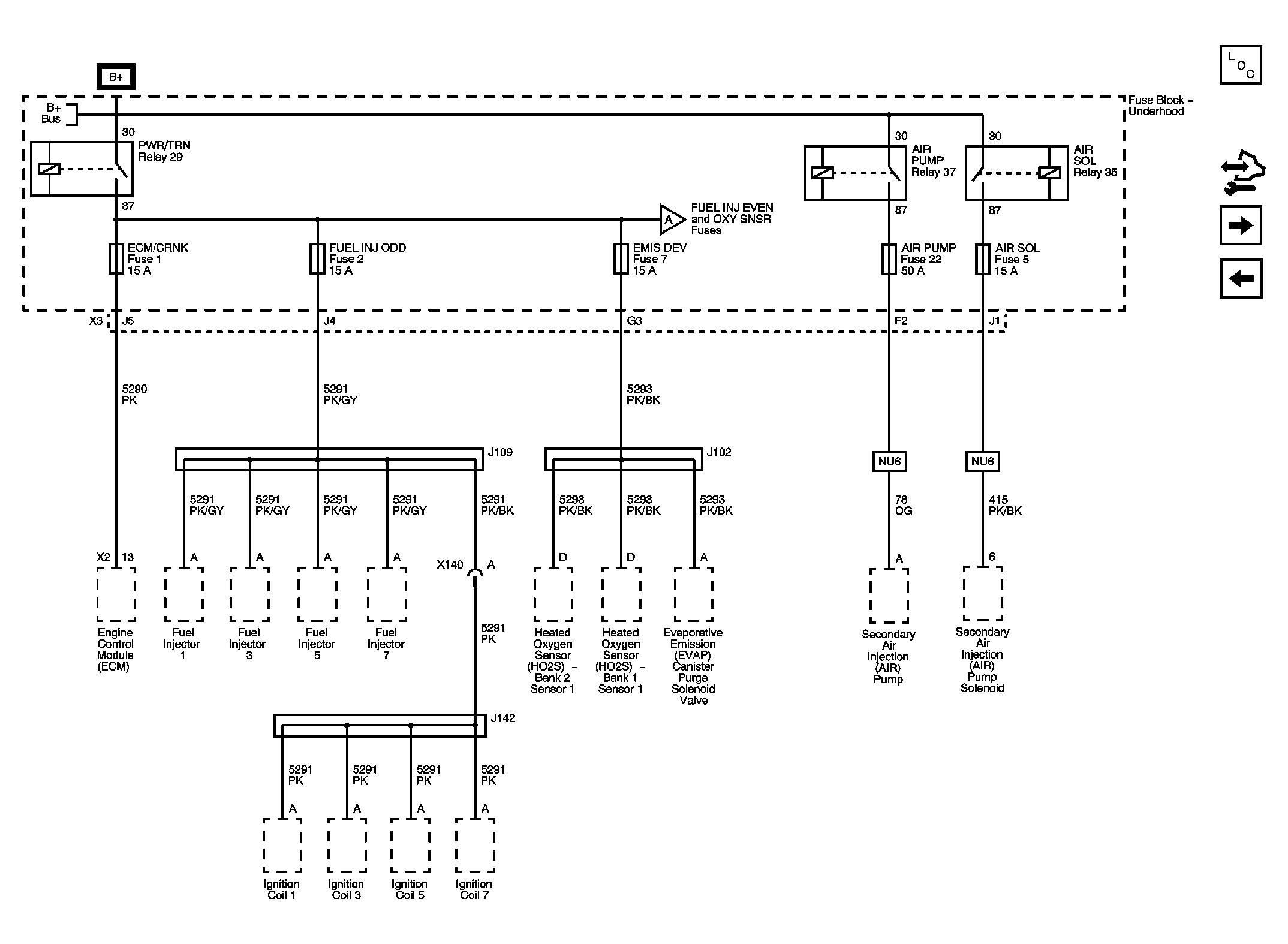

Fig 1: AIR PUMP, AIR SOL, ECM/CRNK, EMIS DEV, FUEL INJ ODD Fuses Wiring Schematic

GM2398598

Courtesy of GENERAL MOTORS COMPANY
