ABS, ABS MTR, HORN, LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM, WSW HTD, WSW MTR Fuses

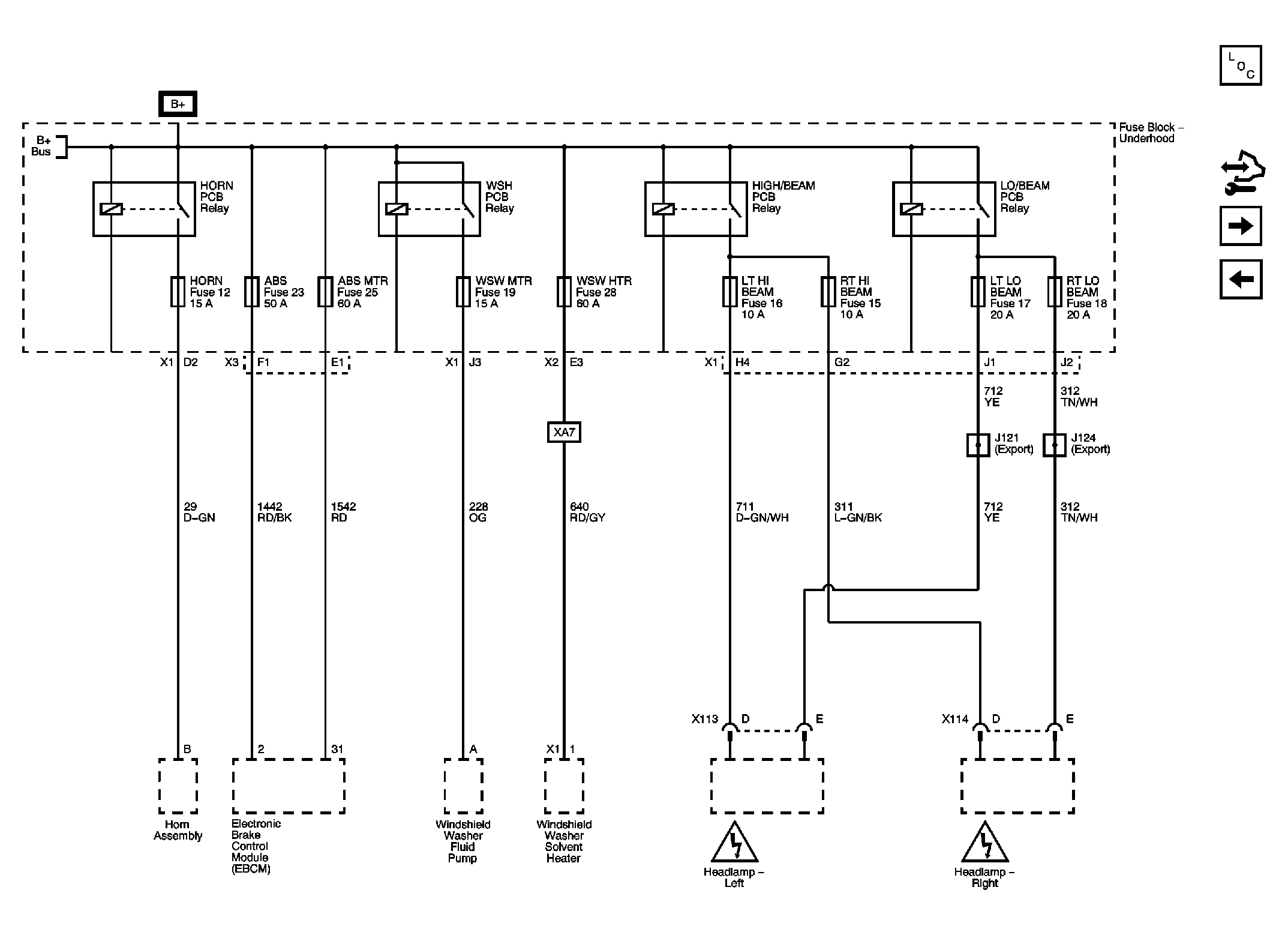

Fig 1: ABS, ABS MTR, HORN, LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM, WSW HTD, WSW MTR Fuses Wiring Schematic

Courtesy of GENERAL MOTORS COMPANY
