Ground Distribution Wiring Schematics: G403

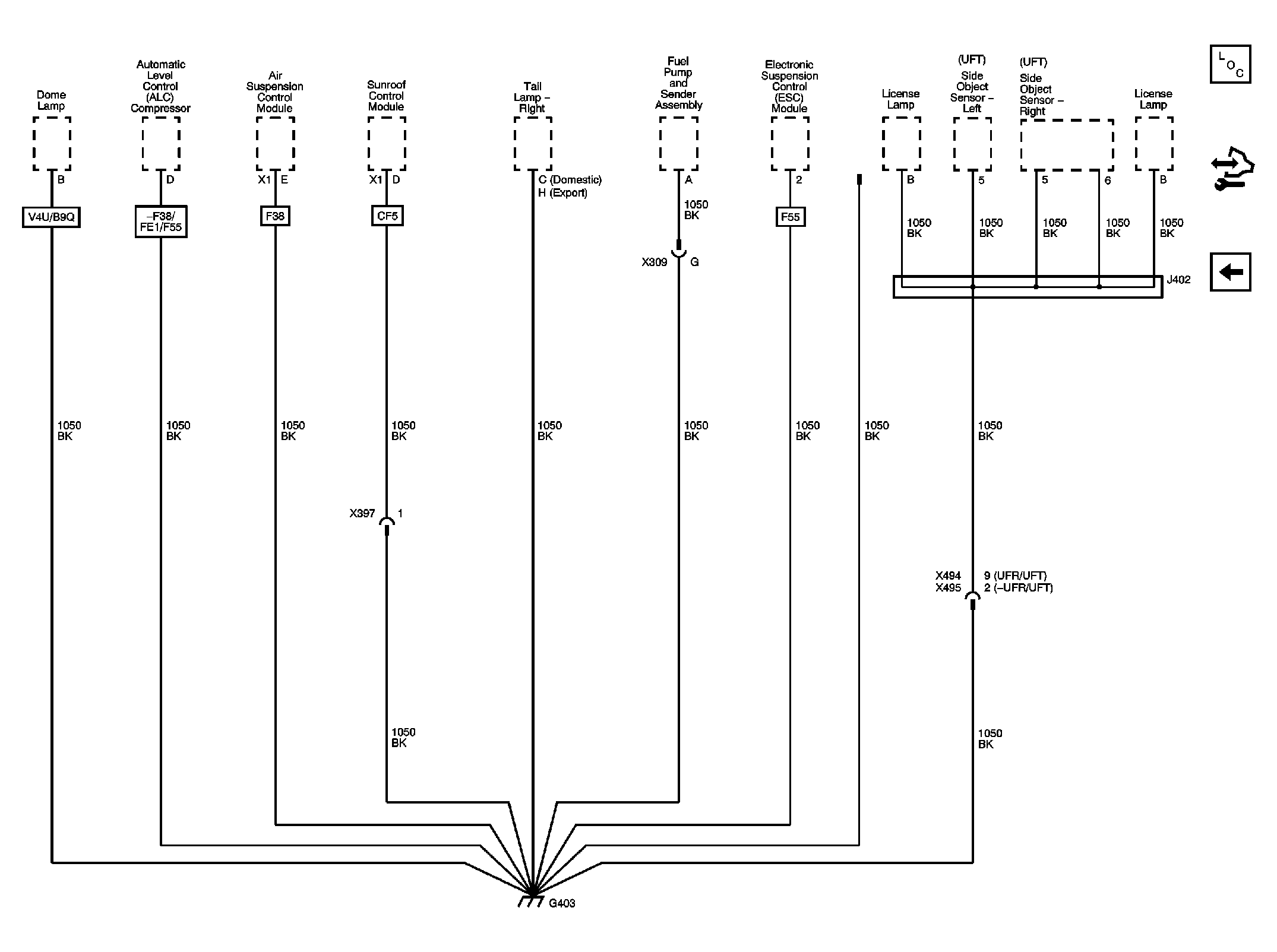

Fig 1: G403 Wiring Schematic

GM2398754

Courtesy of GENERAL MOTORS COMPANY
