Ground Distribution Wiring Schematics: G402

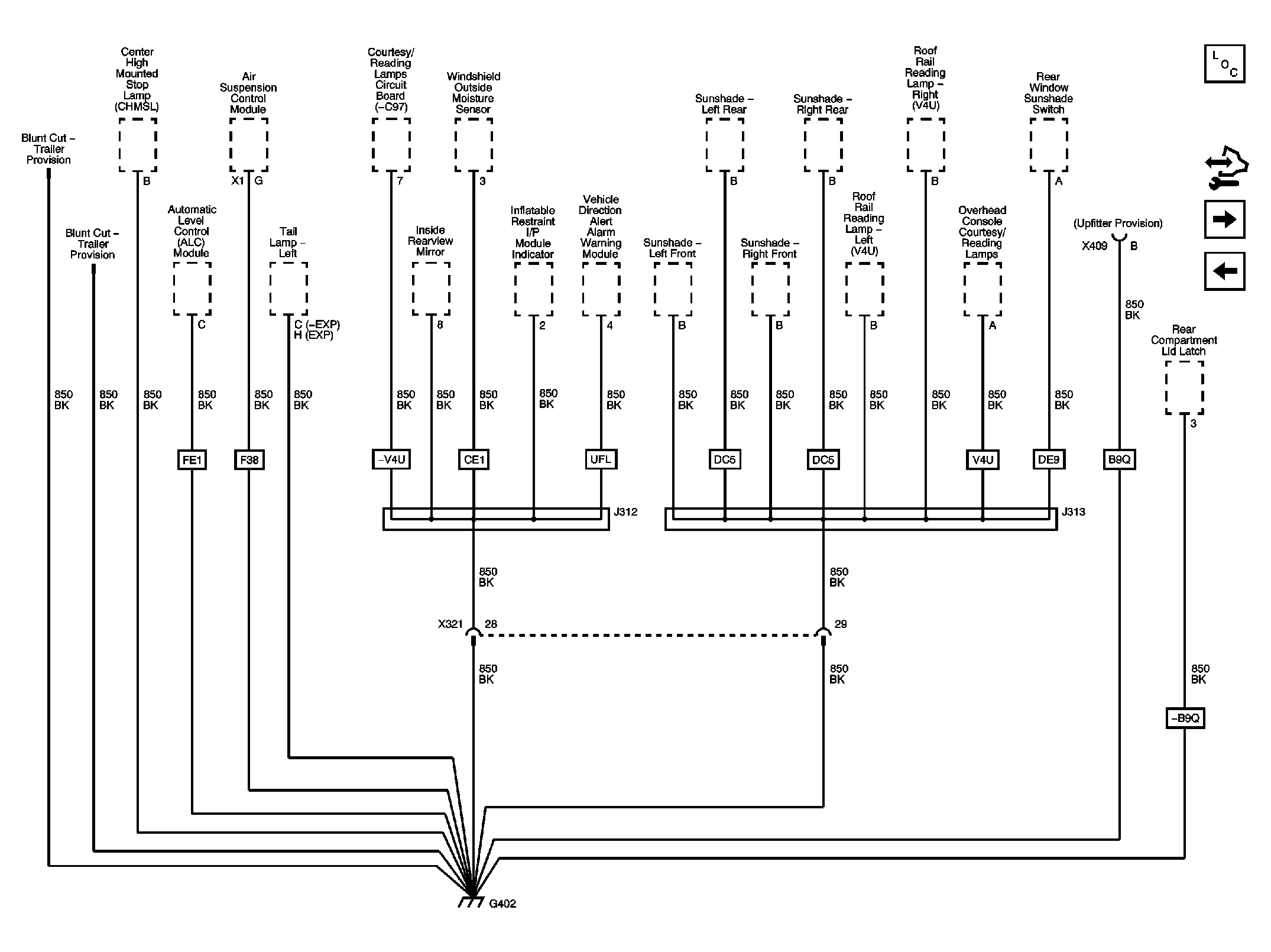

Fig 1: G402 Wiring Schematic

GM2398750

Courtesy of GENERAL MOTORS COMPANY
