Ground Distribution Wiring Schematics: G301

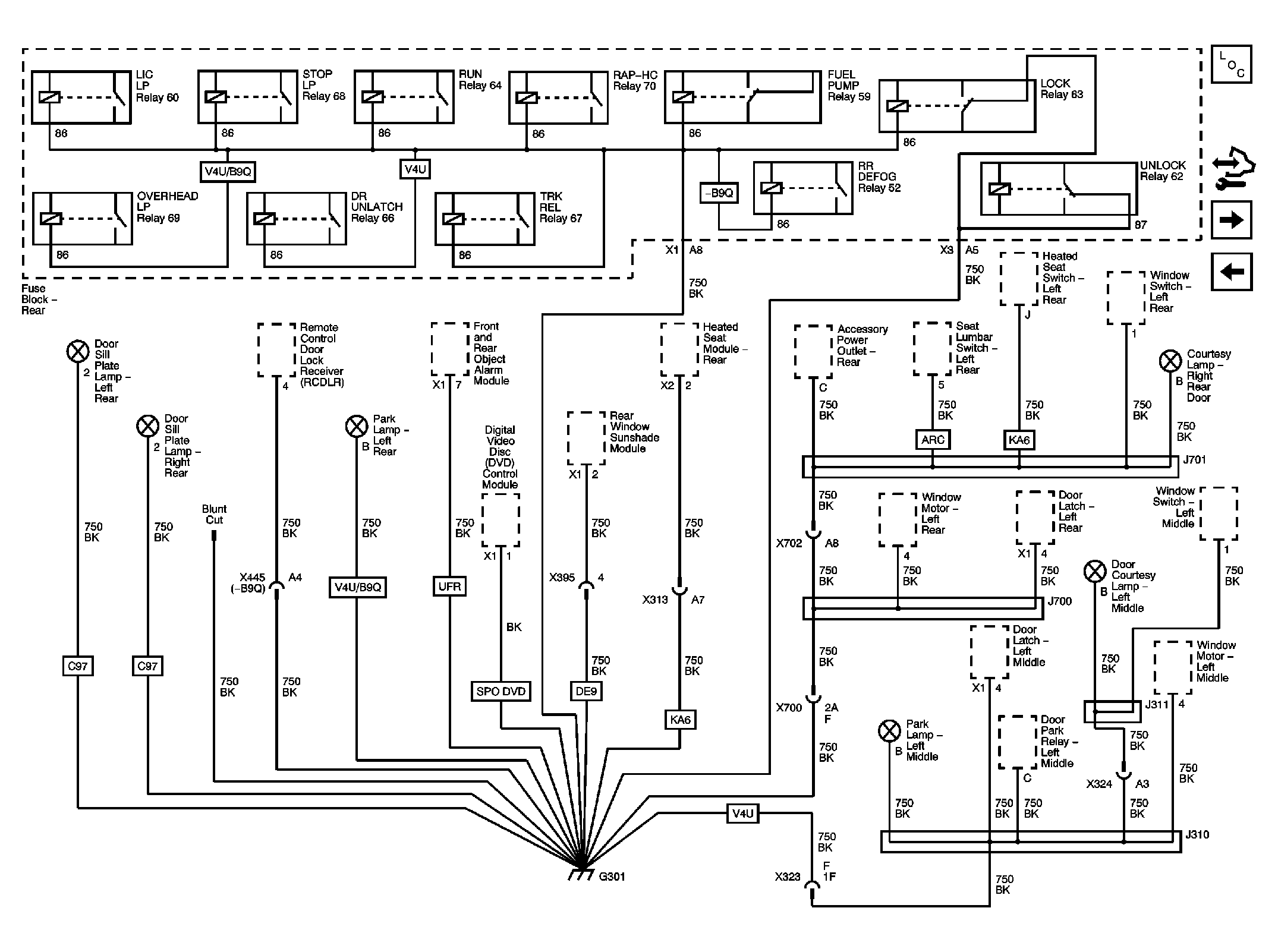

Fig 1: G301 Wiring Schematic

GM2398735

Courtesy of GENERAL MOTORS COMPANY
