Ground Distribution Wiring Schematics: G104

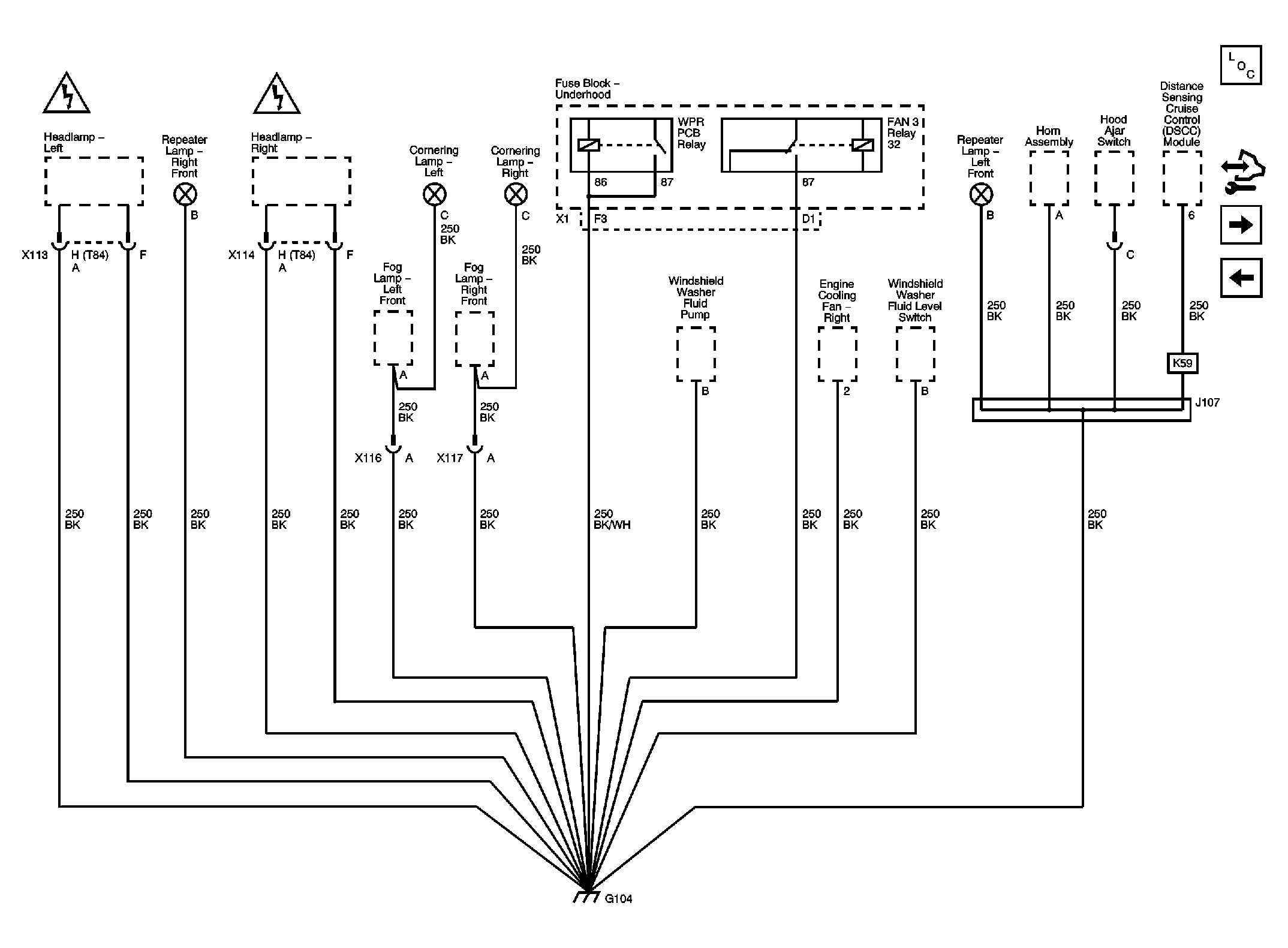

Fig 1: G104 Wiring Schematic

GM2398716

Courtesy of GENERAL MOTORS COMPANY
