Removal Procedure

    WARNING:

    When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

  1. Open and support the hood.

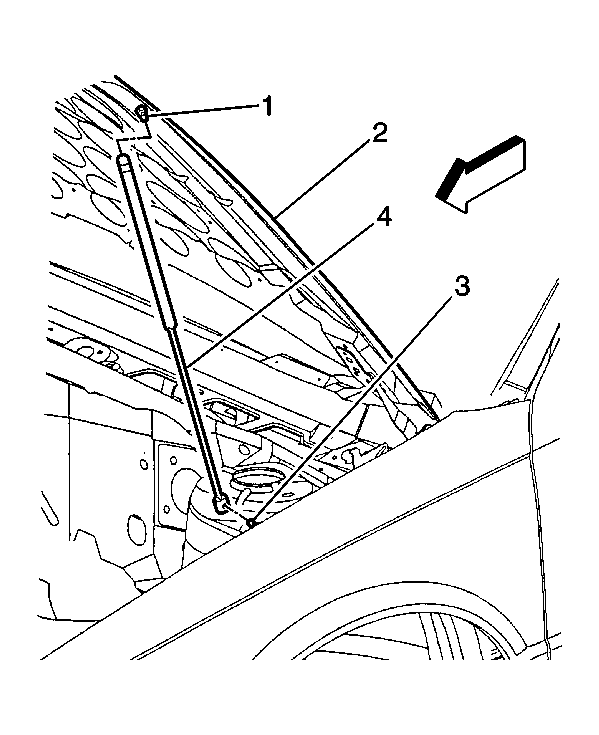

    2. Fig 1: View Of Hood Assist Rod & Components
    GM130511Courtesy of GENERAL MOTORS COMPANY
  2. Release the clip retaining the hood assist rod (4) to the lower assist rod ball stud (3).
    3. CAUTION:

    Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

  3. Release the clip retaining the hood assist rod (4) to the upper assist rod ball stud (1).
  4. Remove the hood assist rod (4) from the vehicle.
