Front Side Door Check Link Replacement

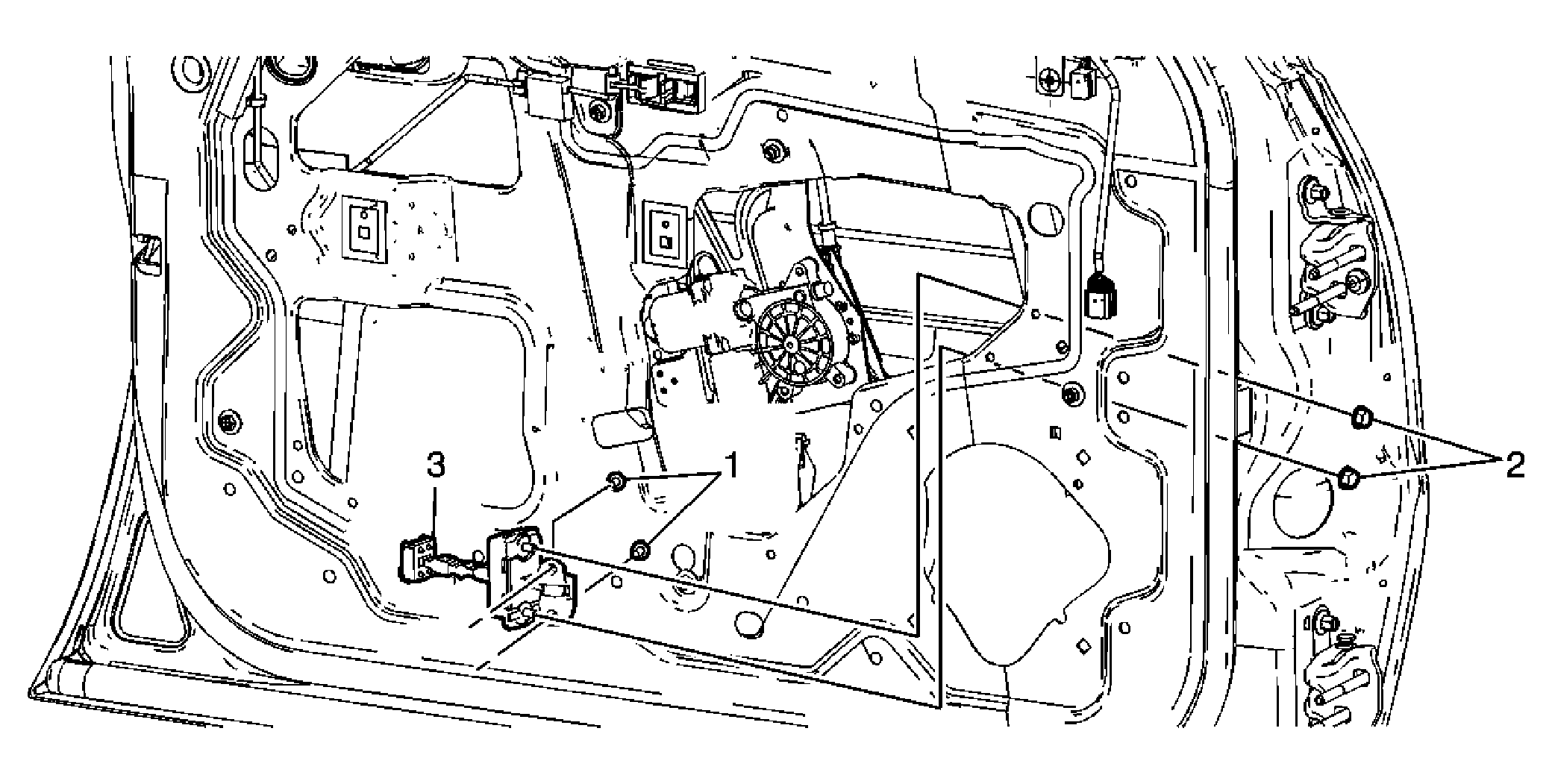

Fig 1: Front Door Check Link & Components
GM1583925Courtesy of GENERAL MOTORS COMPANY
Front Side Door Check Link Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
  3. Move the window to the full up position.
1 Front Side Door Check Link Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Front Side Door Check Link Nut (Qty: 2)
Tighten
9 N.m (80 lb in)
3 Front Side Door Check Link Assembly
TIP:  Remove the check link from the inside of the door.
