26. 1-2-3-4 Clutch Backing Plate Retaining Ring Measurement

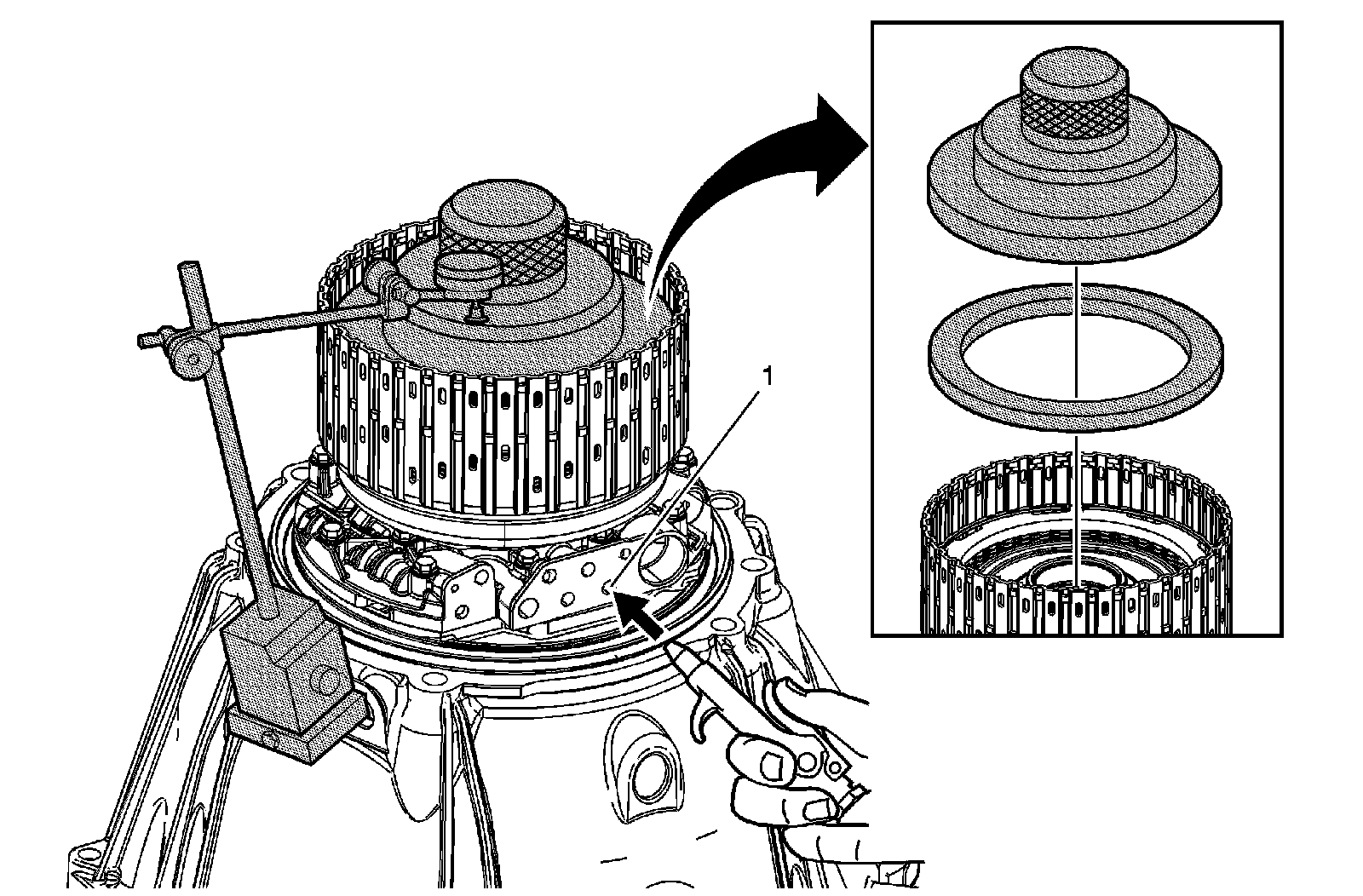

1-2-3-4 Clutch Backing Plate Retaining Ring Measurement

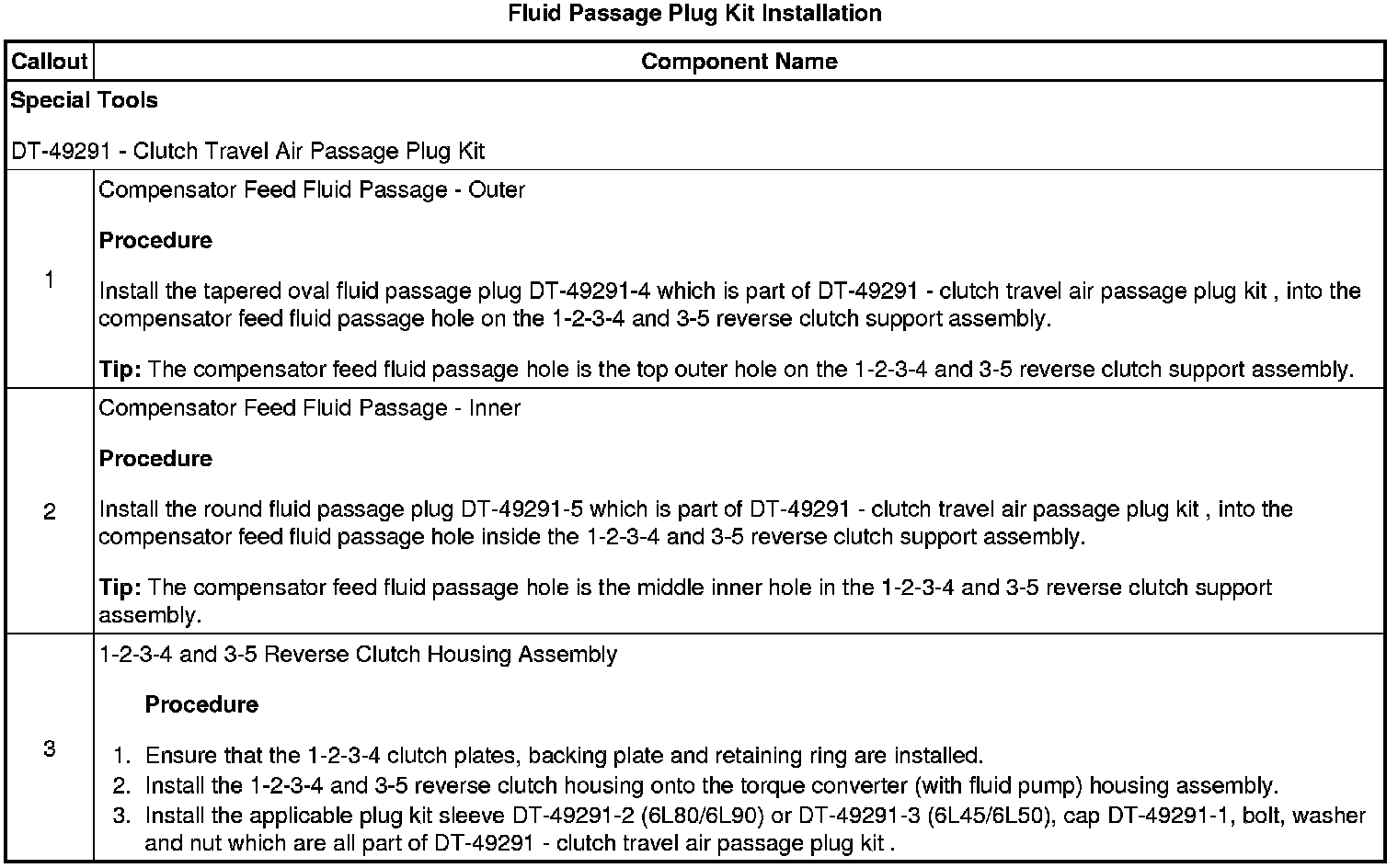

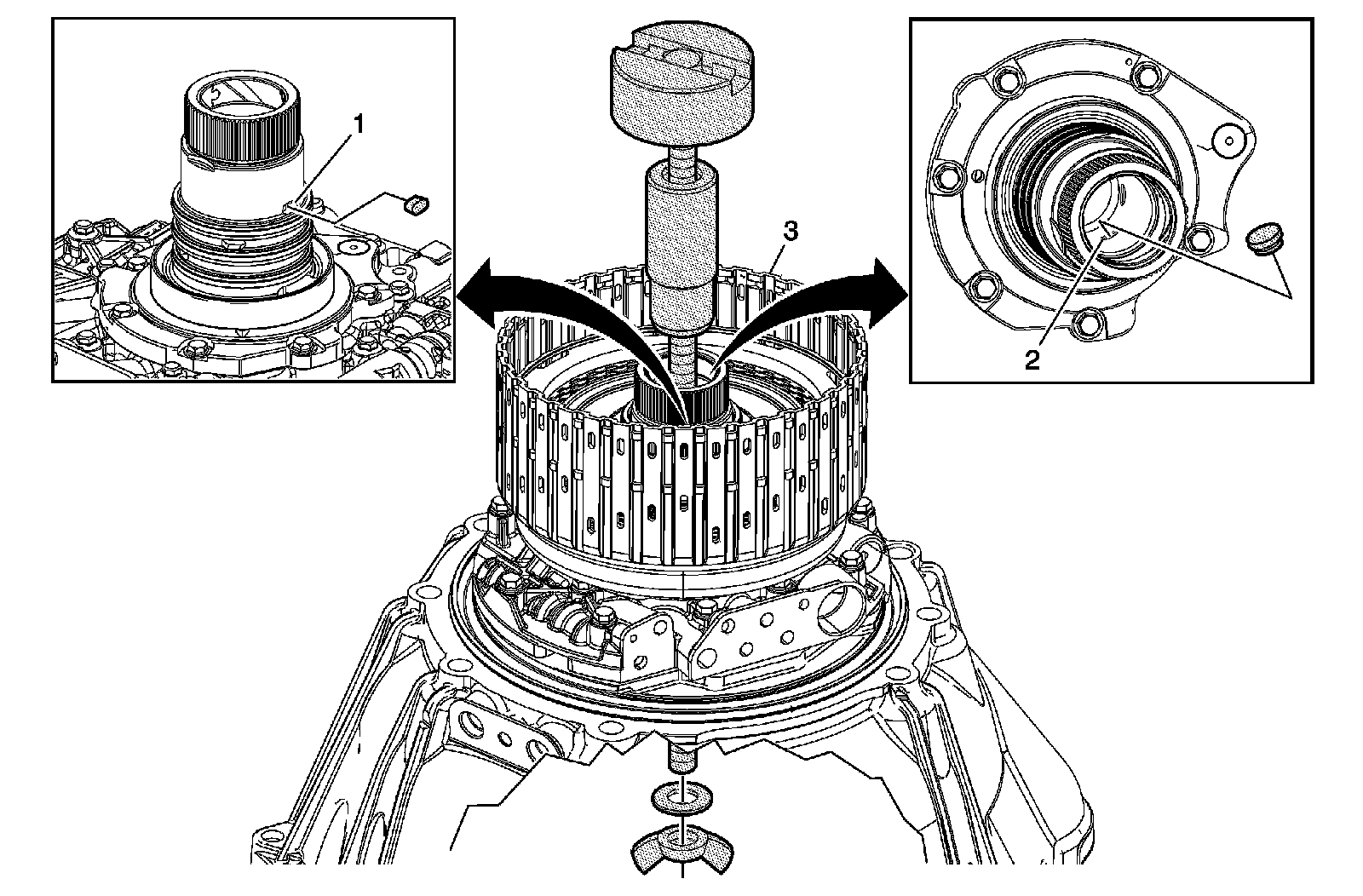

Fluid Passage Plug Kit Installation

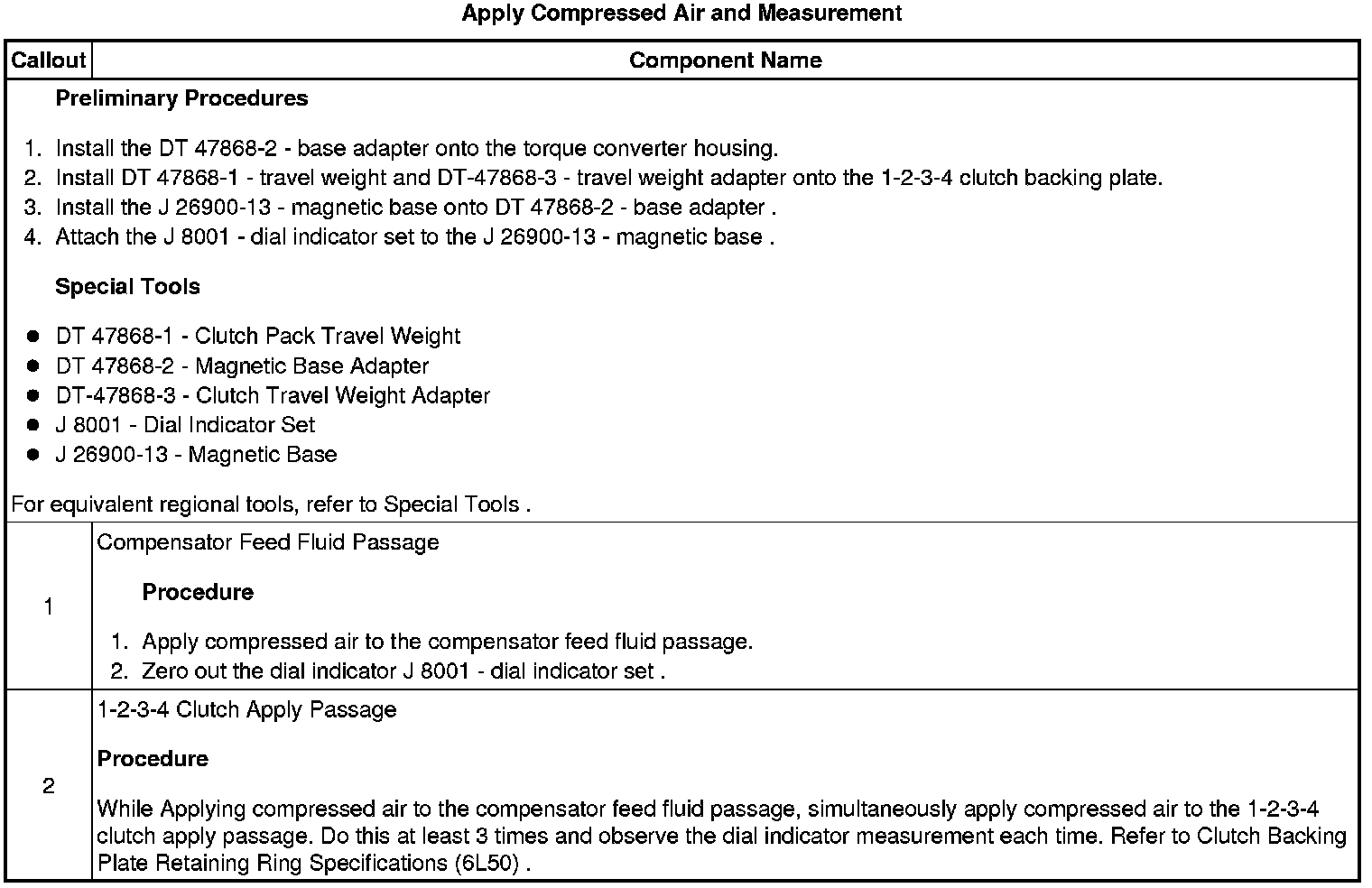

Apply Compressed Air and Measurement
