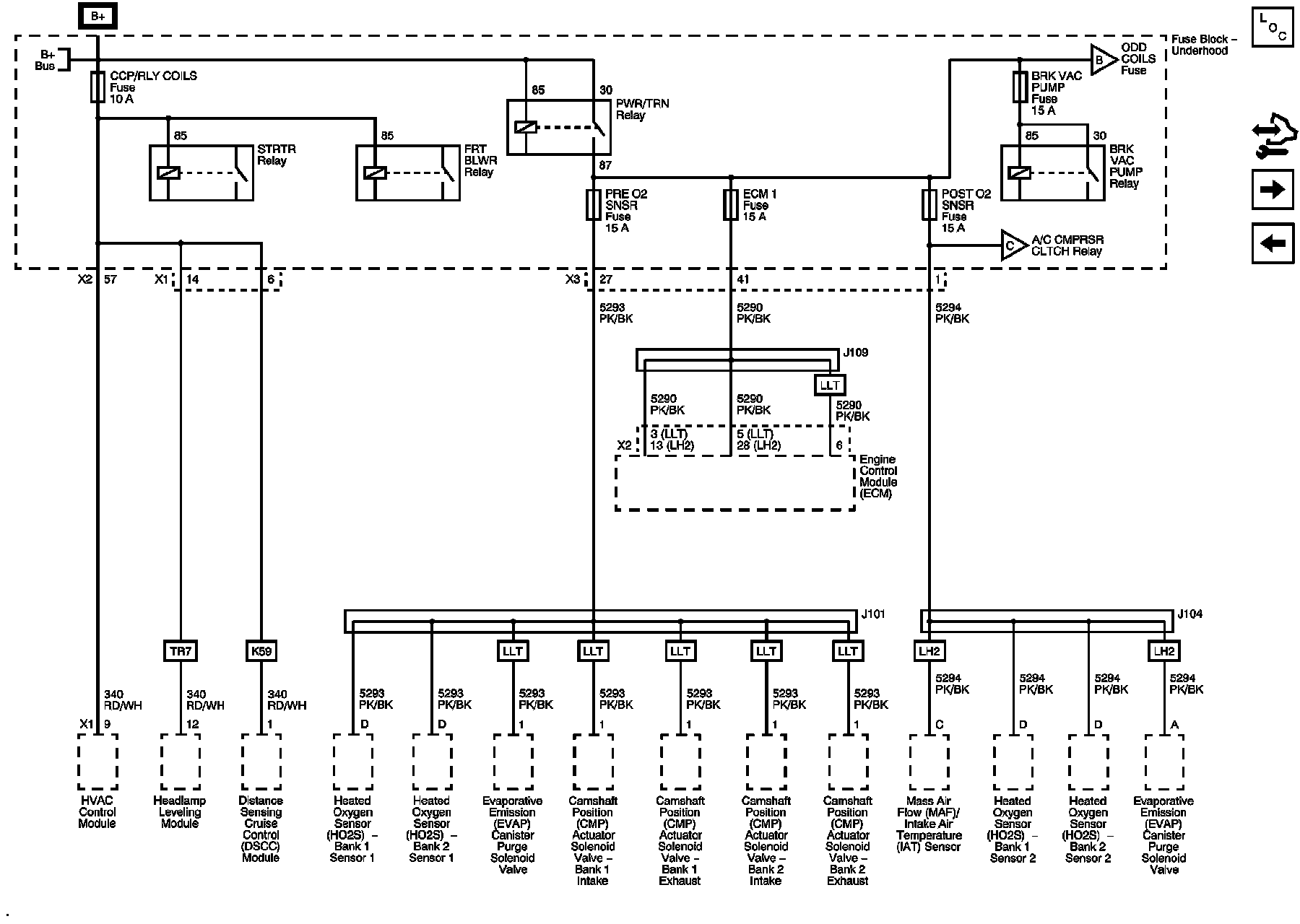

Home >> Cadillac >> 2010 >> STS AWD V8-4.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Schematics >> Power Distribution Schematics 7
