Evaporative Emission Control Canister: Locations

Wheels/Vehicle Underbody Component Views

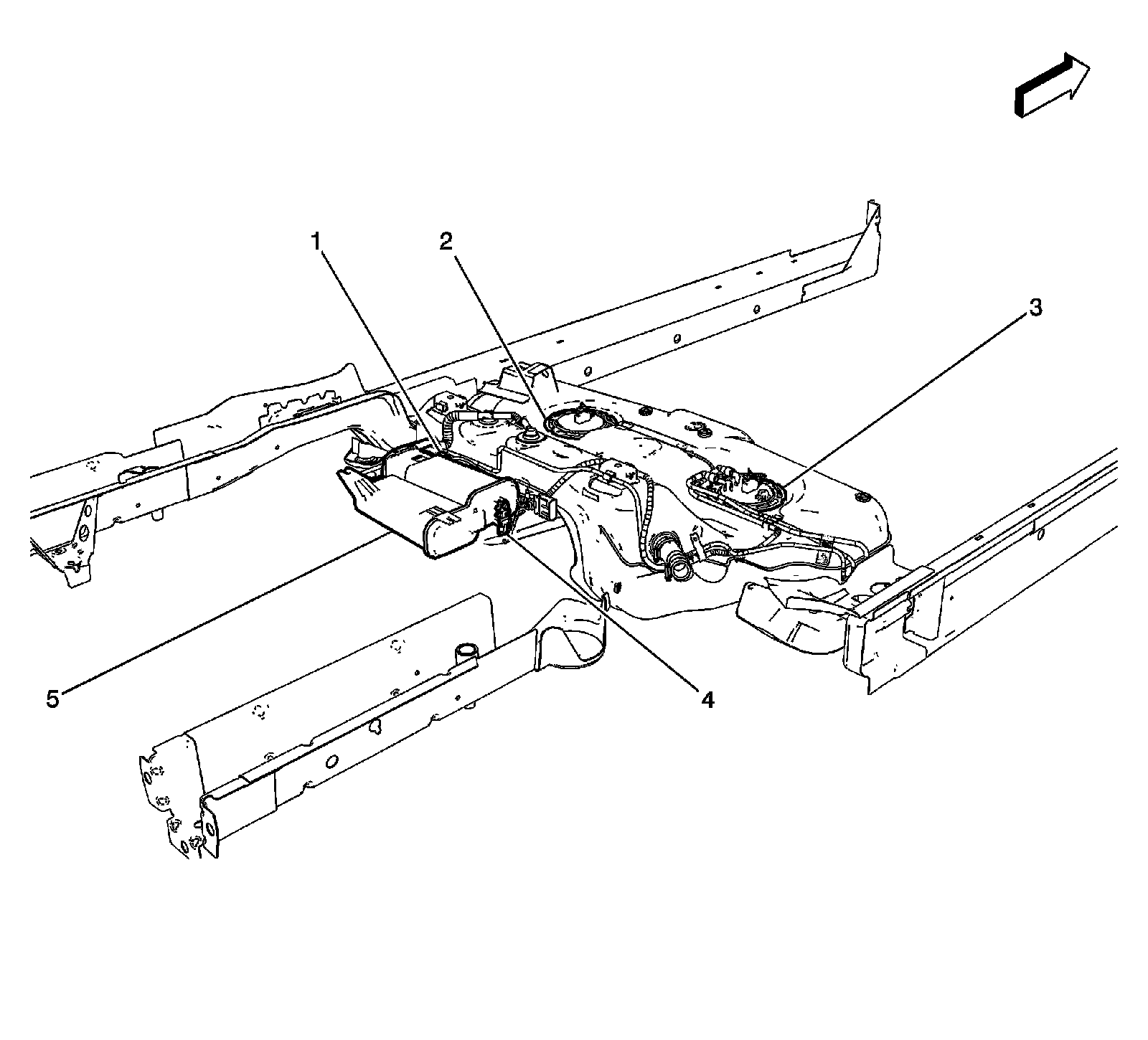

Fuel Tank Components




1 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
2 - Fuel Level Sensor - Secondary
3 - Fuel Pump and Sender Assembly
4 - Fuel Tank Pressure (FTP) Sensor
5 - EVAP Canister
