Power Distribution Schematics

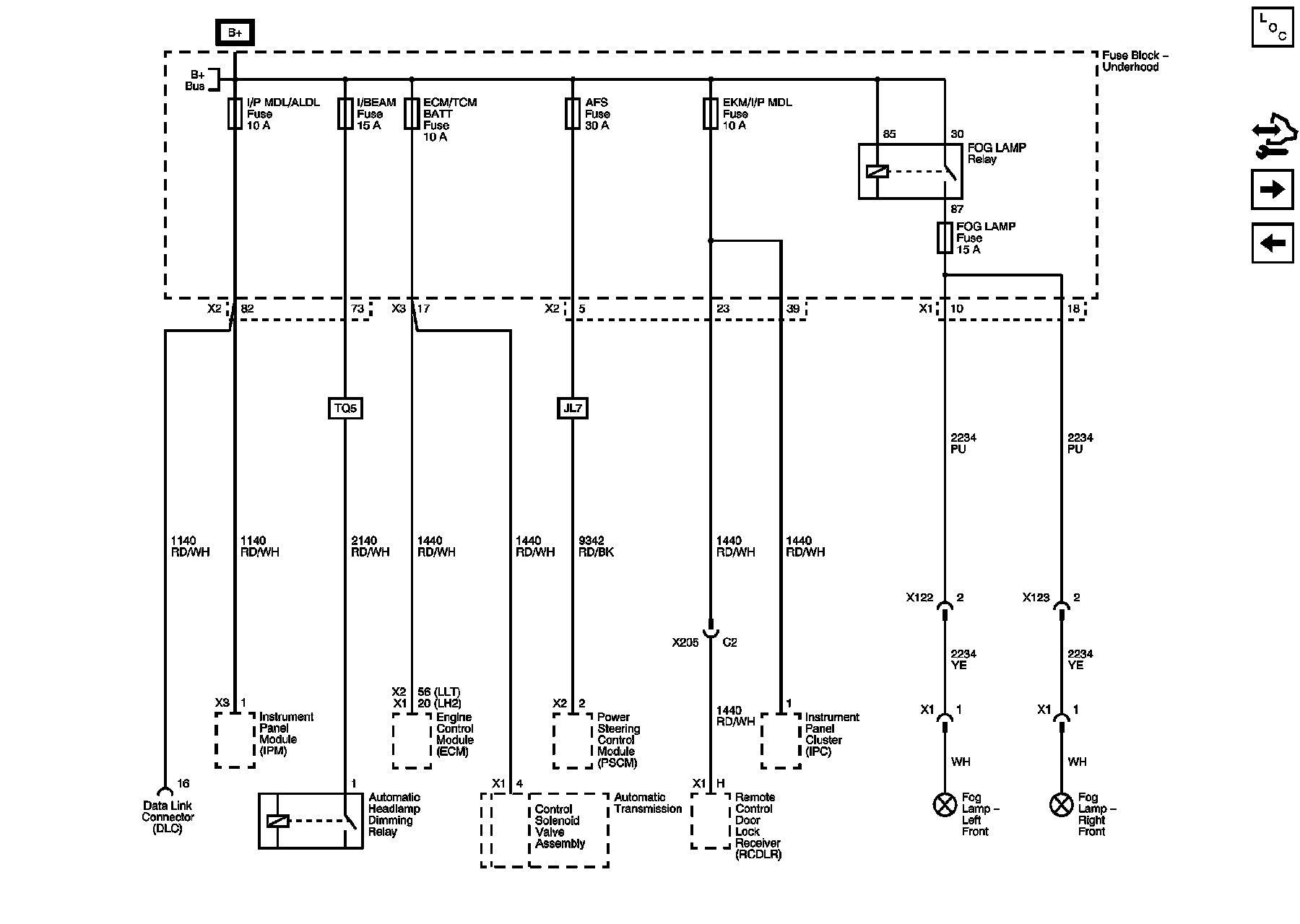

AFS, ECM/TCM BATT, EKM/I/P MDL, FOG LAMP, HORN, I/BEAM, I/P MDL/ALDL, and WPR Fuses
