Home >> Cadillac >> 2010 >> STS AWD V8-4.6L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Lane Sensing System Chime / Buzzer >> Diagrams

Lane Sensing System Chime / Buzzer: Diagrams

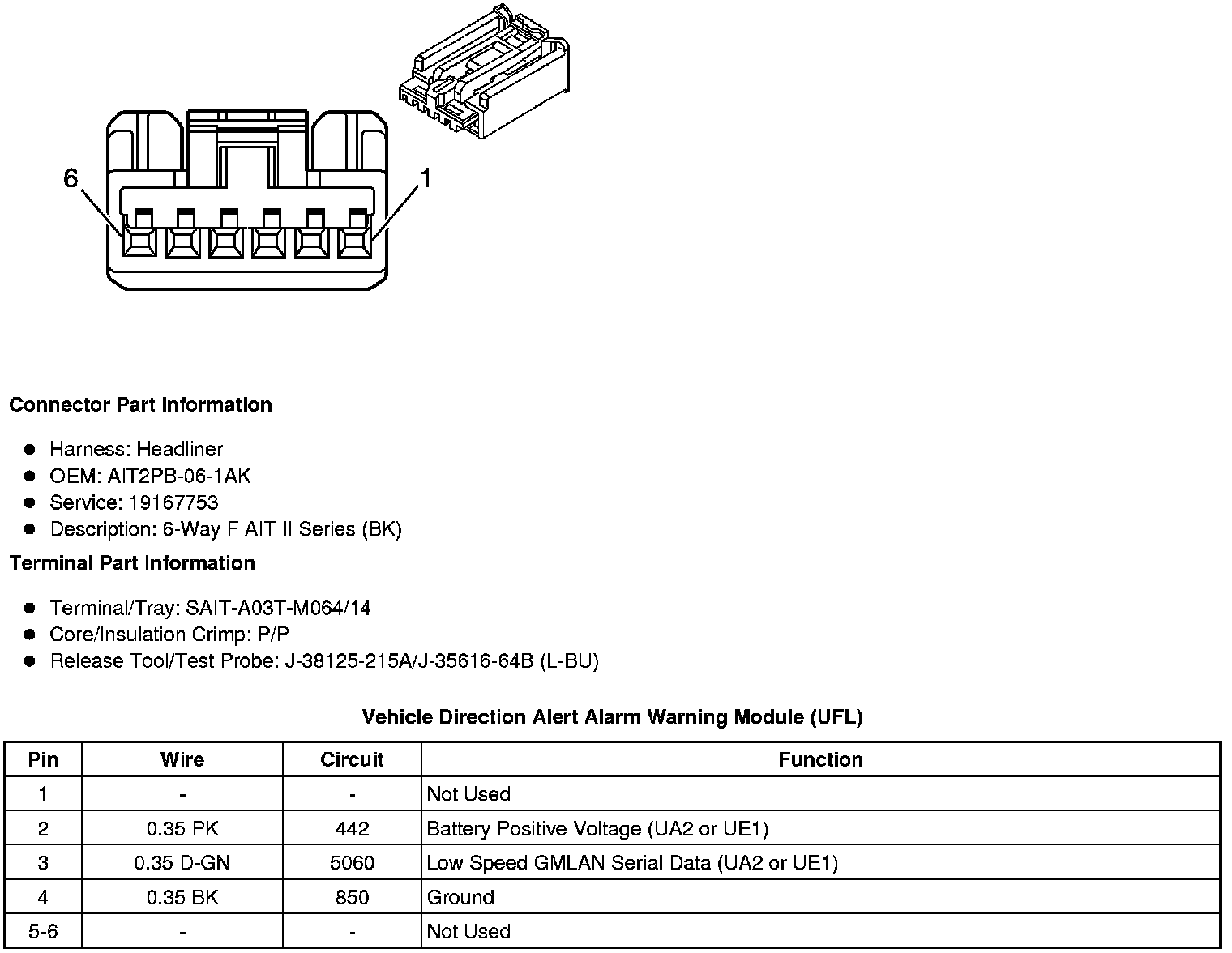

Component Connector End Views

Vehicle Direction Alert Alarm Warning Module (UFL)
