30. Primary Camshaft Intermediate Drive Chain Removal

Primary Camshaft Intermediate Drive Chain Removal

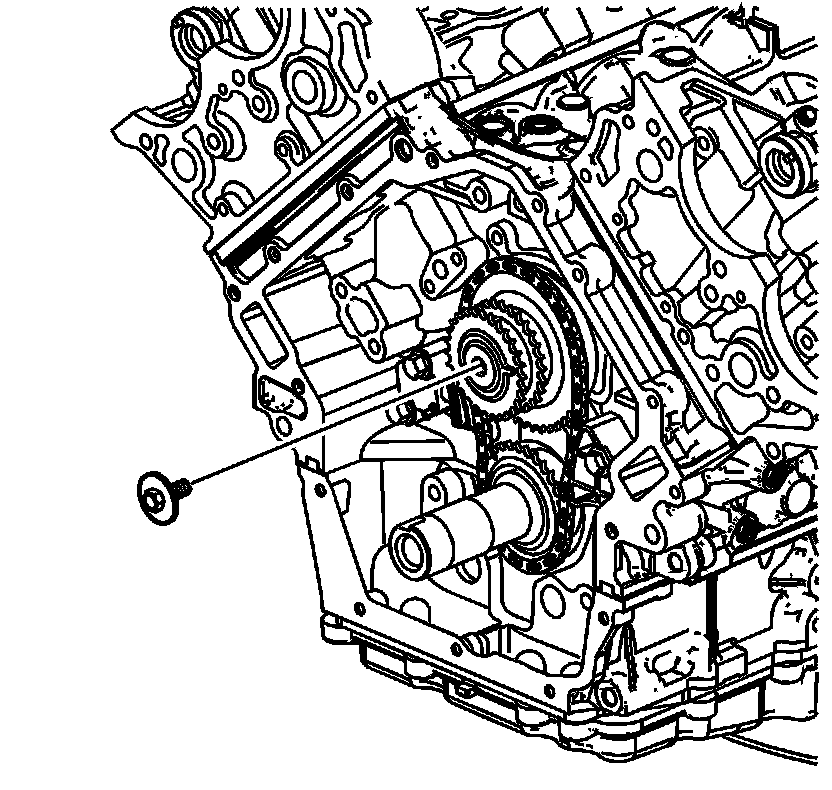

1. Remove the camshaft intermediate drive shaft sprocket bolt.

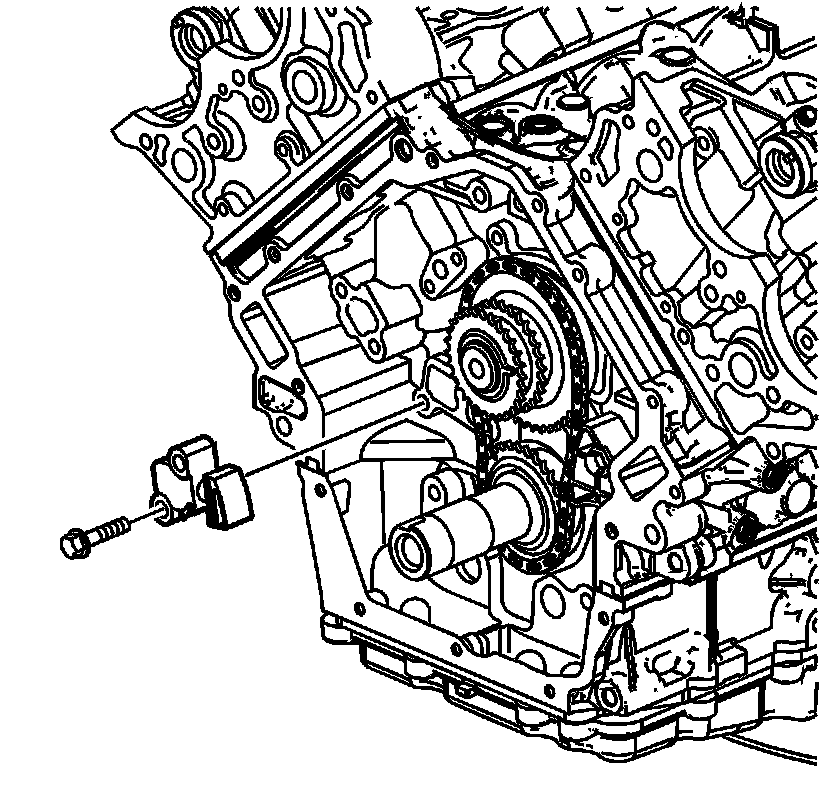

2. Remove the primary camshaft drive chain tensioner bolts.
3. Remove the primary camshaft drive chain tensioner.

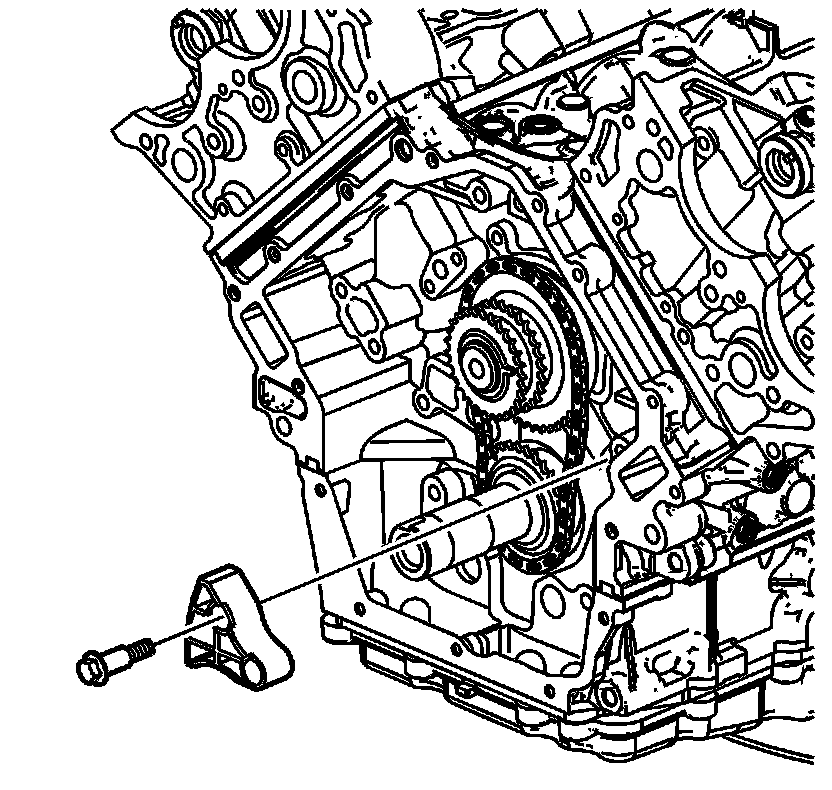

4. Remove the primary camshaft drive chain guide bolts.
5. Remove the primary camshaft drive chain guide.

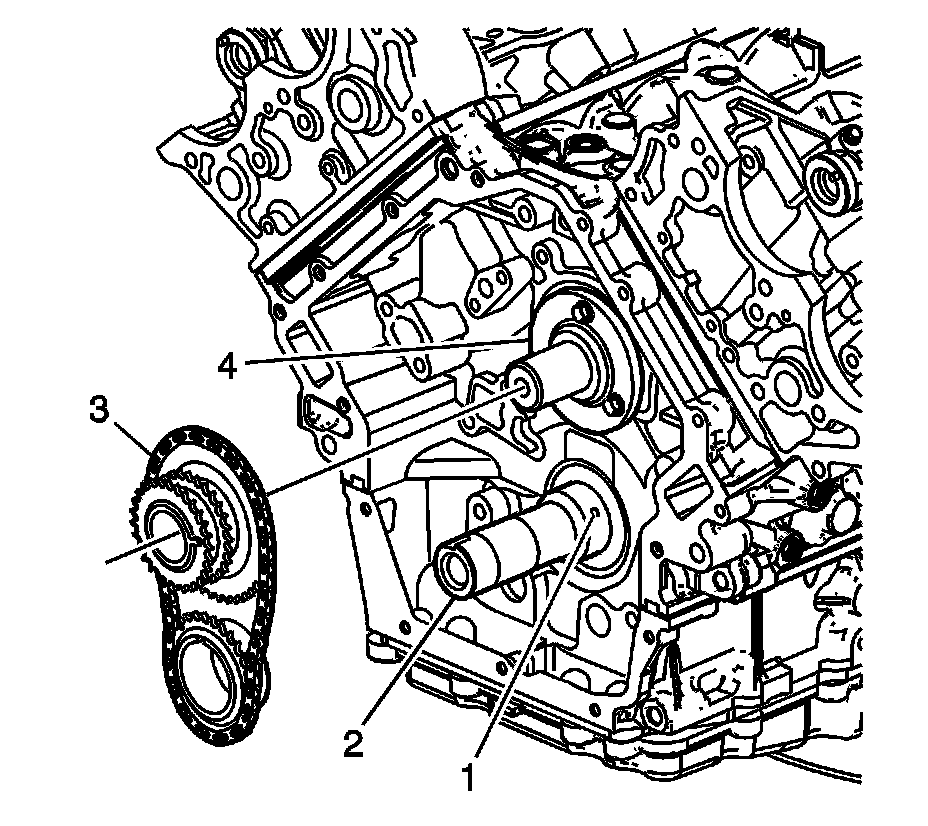

6. Remove the camshaft intermediate drive shaft sprocket, primary camshaft drive chain and crankshaft sprocket (3) as an assembly.
