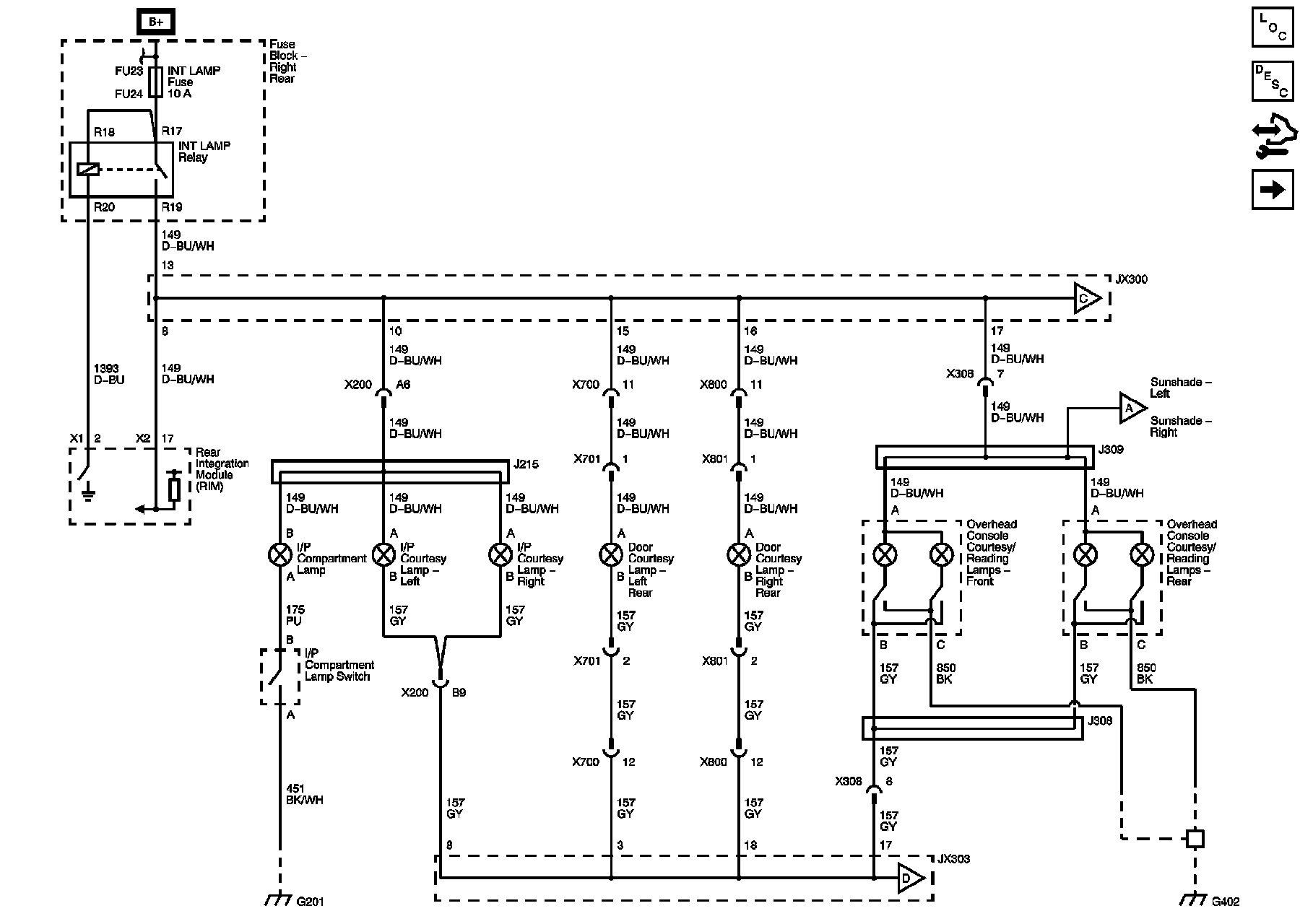

Home >> Cadillac >> 2010 >> STS AWD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights Schematics >> Interior Lights Schematics 1
