Ignition Coil




Component Connector End Views

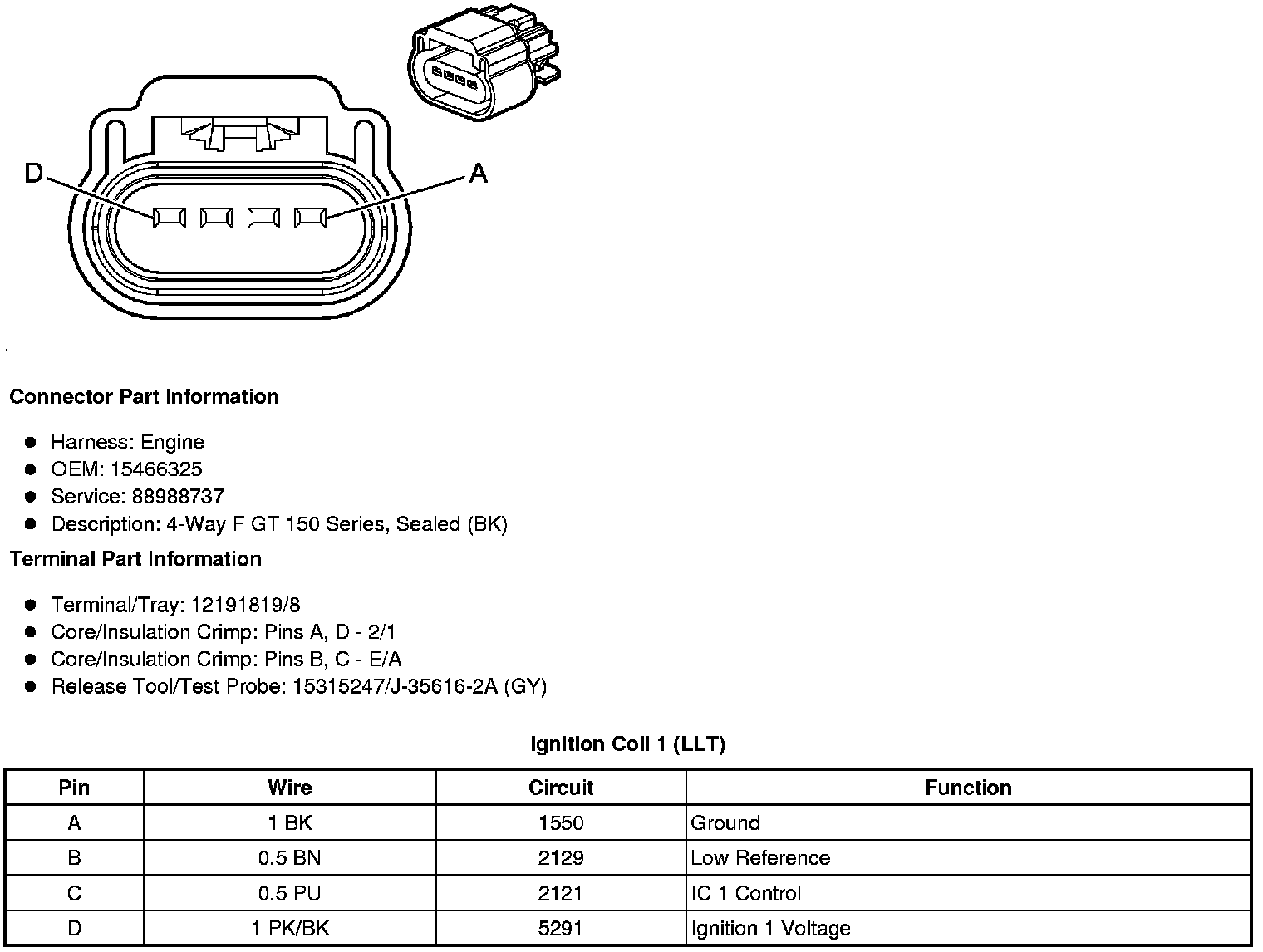

Ignition Coil 1 (LLT)





Ignition Coil 2 (LLT)





Ignition Coil 3 (LLT)

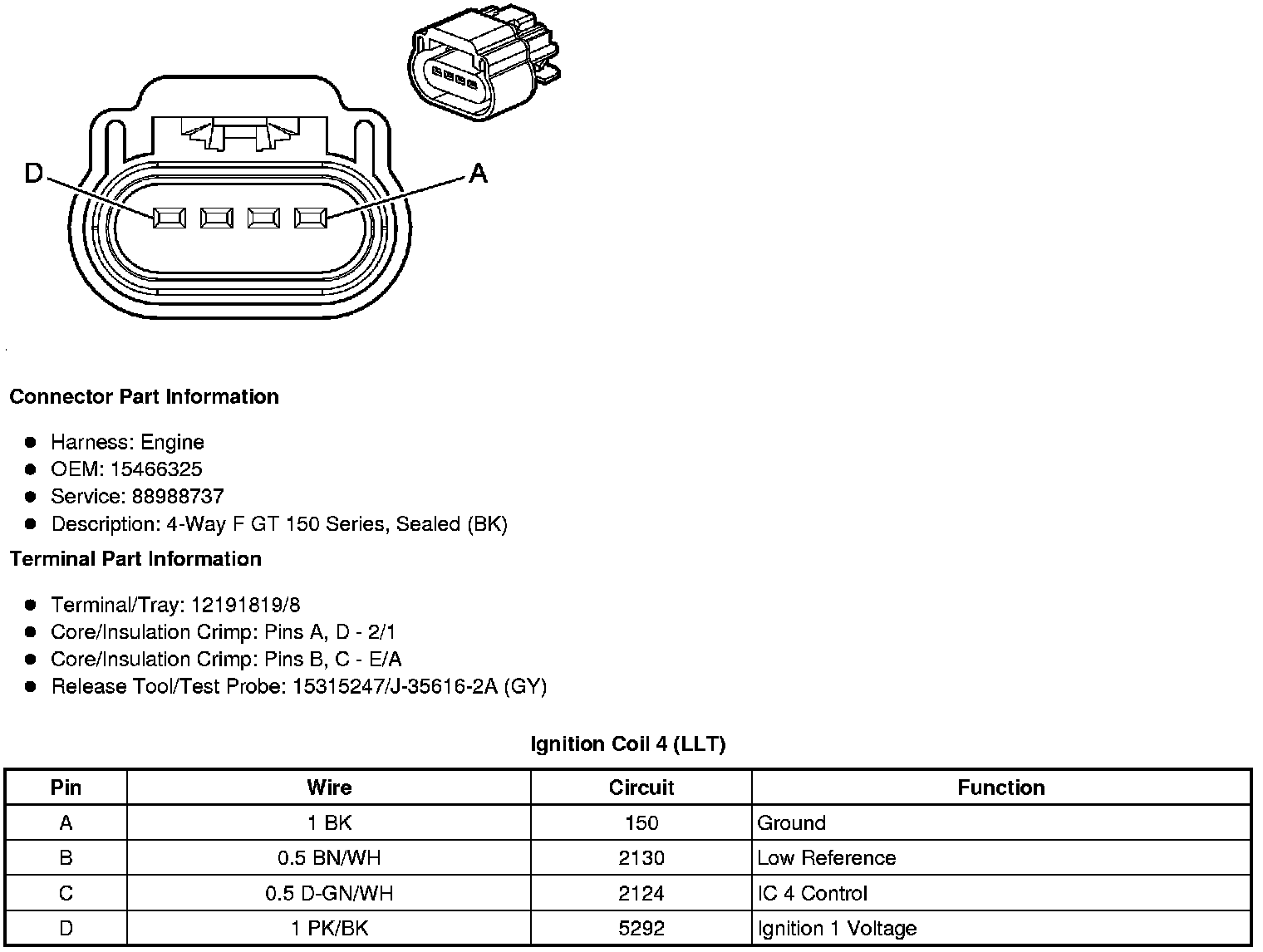

Ignition Coil 4 (LLT)

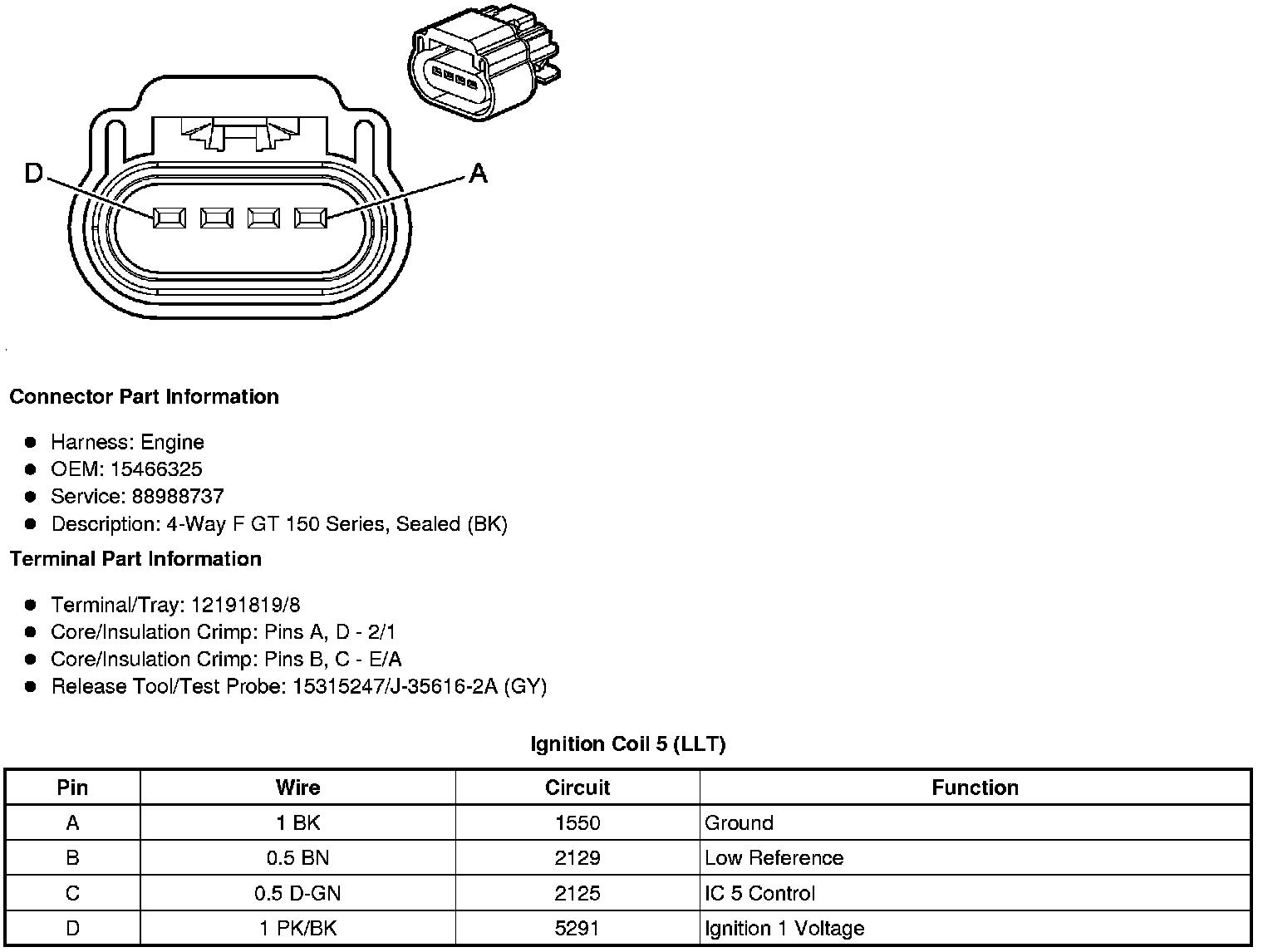

Ignition Coil 5 (LLT)





Ignition Coil 6 (LLT)





Ignition Coil 1 (LH2)





Ignition Coil 2 (LH2)





Ignition Coil 3 (LH2)





Ignition Coil 4 (LH2)





Ignition Coil 5 (LH2)

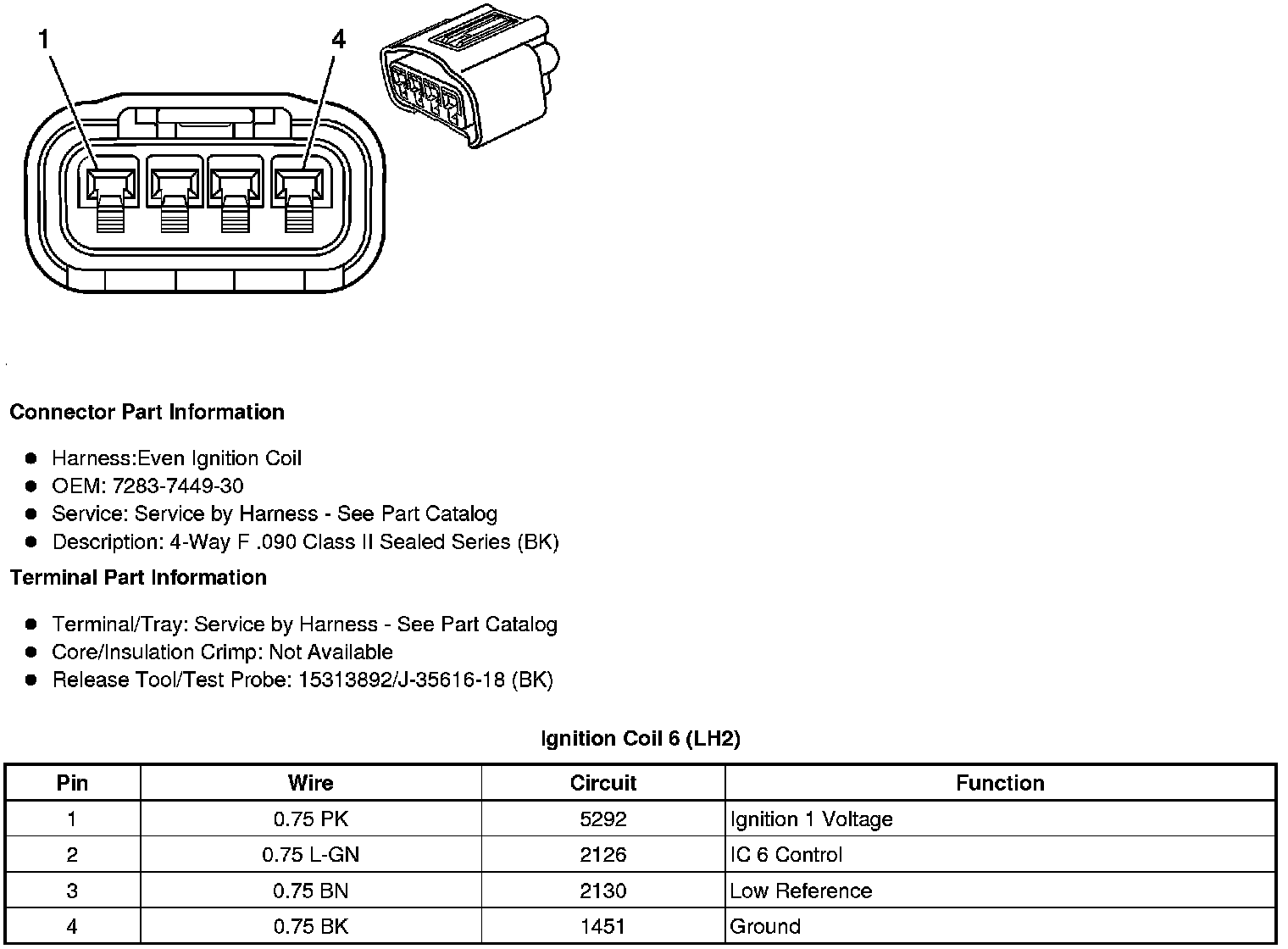

Ignition Coil 6 (LH2)





Ignition Coil 7 (LH2)

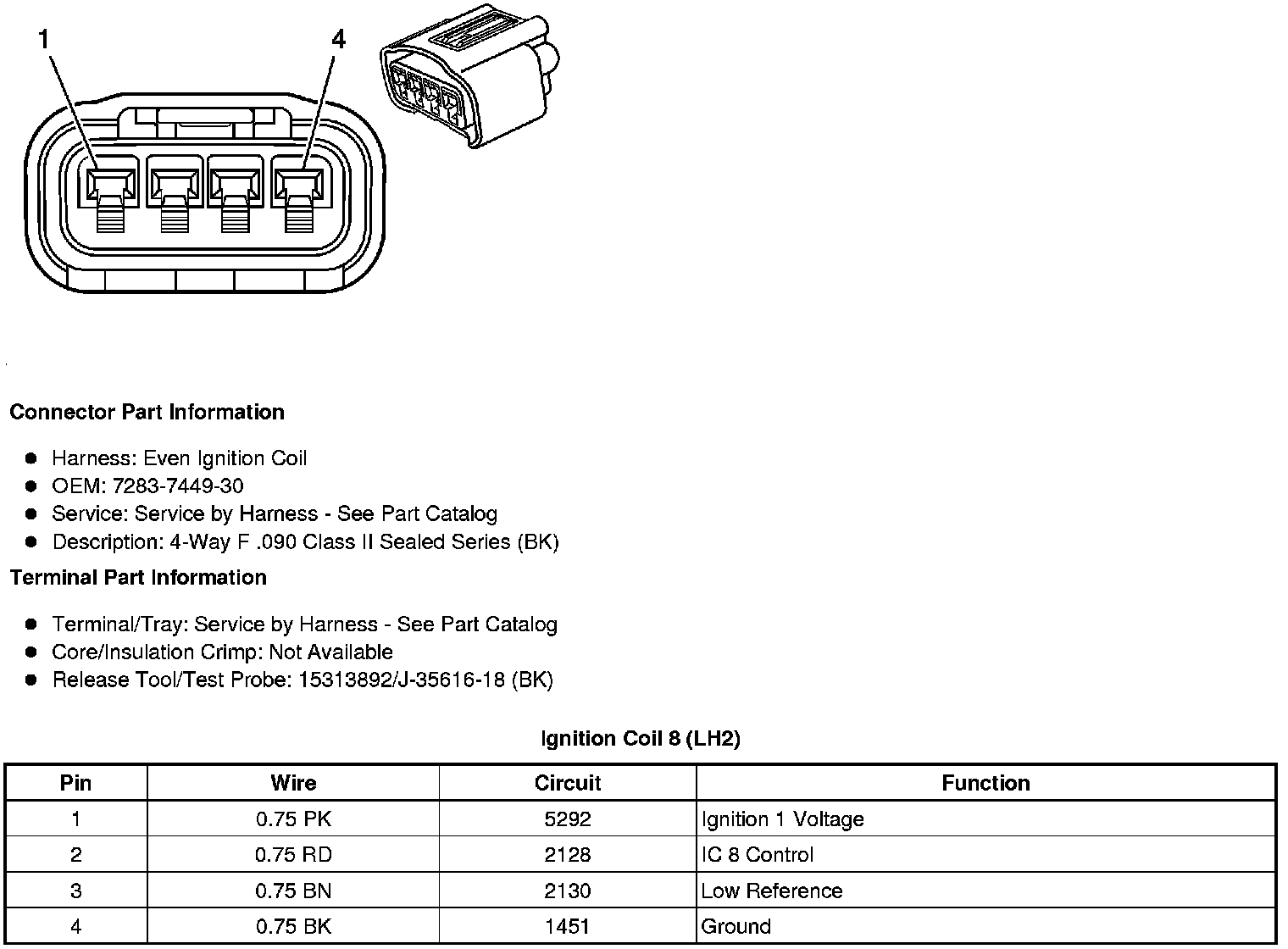

Ignition Coil 8 (LH2)
