Crankshaft Position Sensor




Component Connector End Views

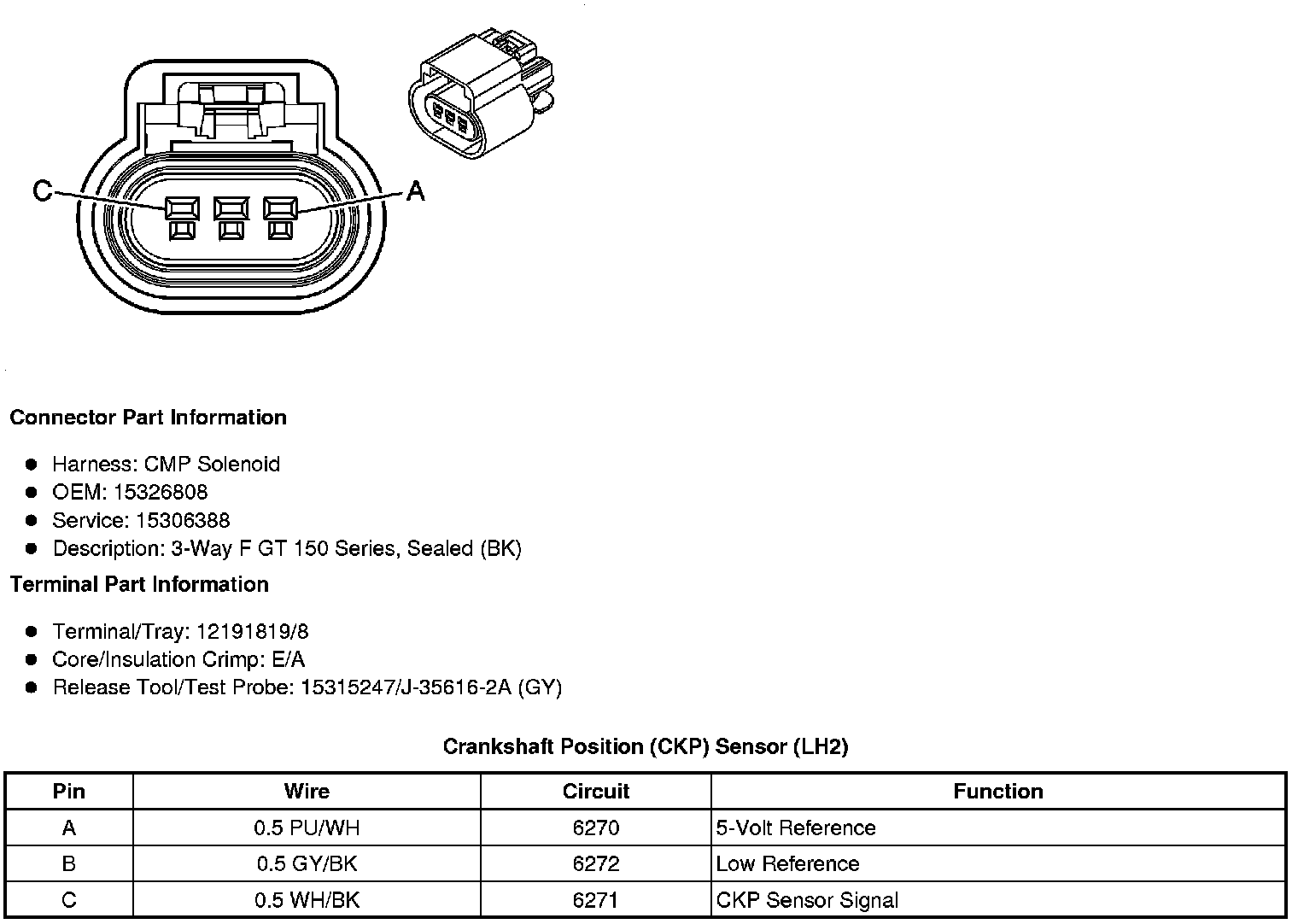

Crankshaft Position (CKP) Sensor (LH2)

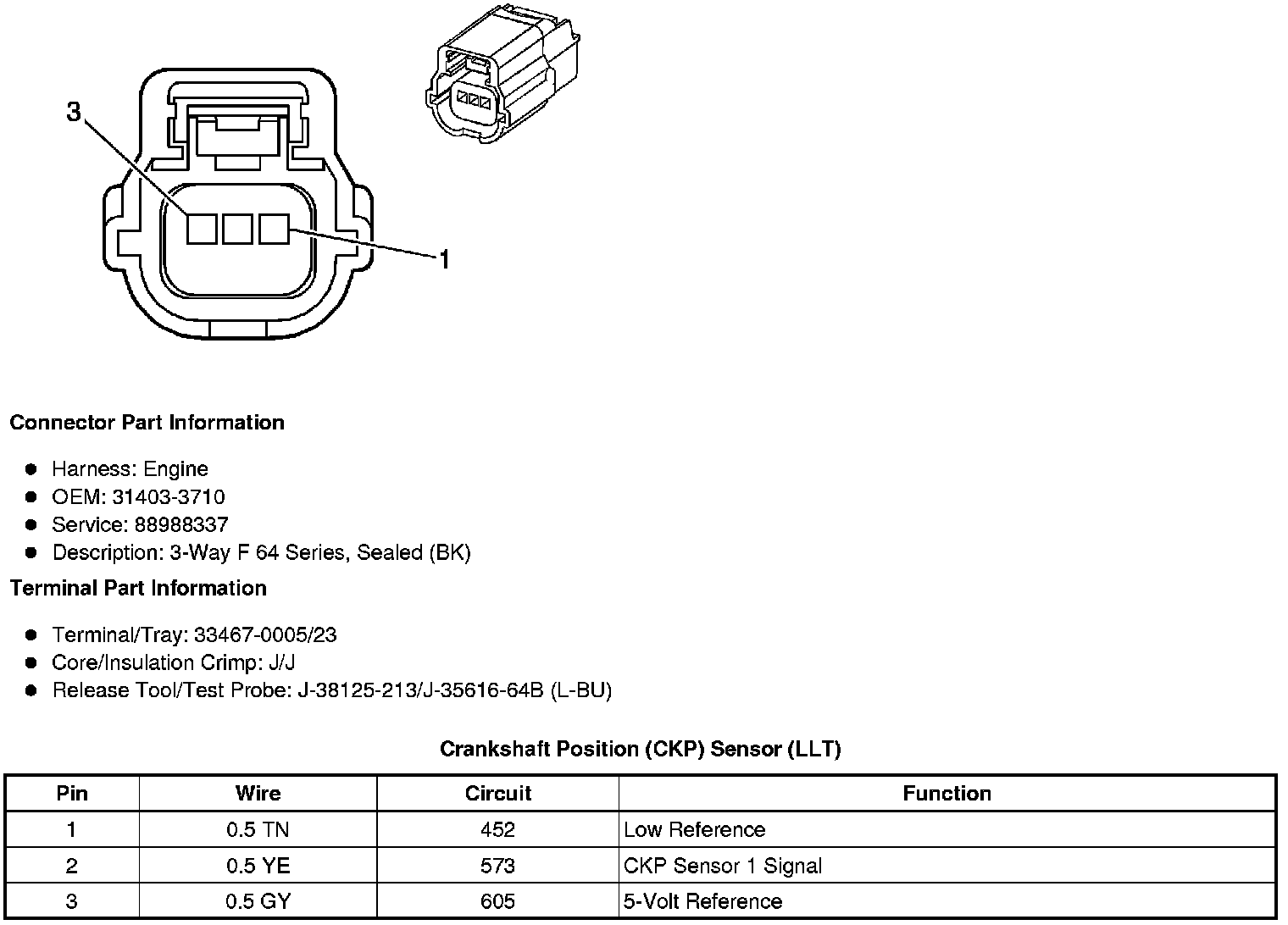

Crankshaft Position (CKP) Sensor (LLT)
