X601
X601
Inline Harness Connector End Views

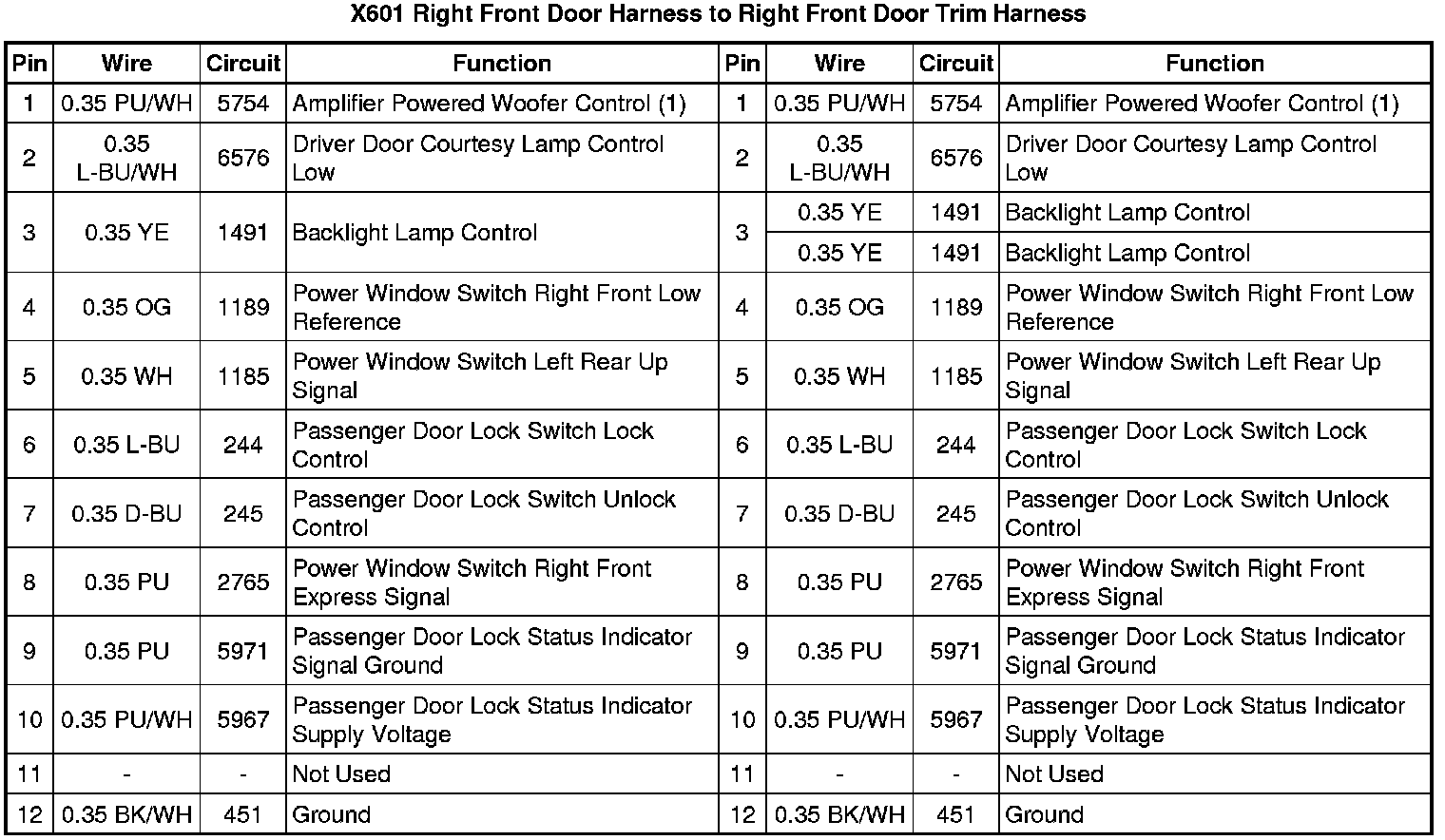

X601 Right Front Door Harness to Right Front Door Trim Harness
