Rear Energy Absorber Replacement

Rear Energy Absorber Replacement












2.Lower the rear of the exhaust system. Refer to Exhaust System Replacement .

3.Remove ALC Compressor, if equipped. Refer to Air Compressor Replacement

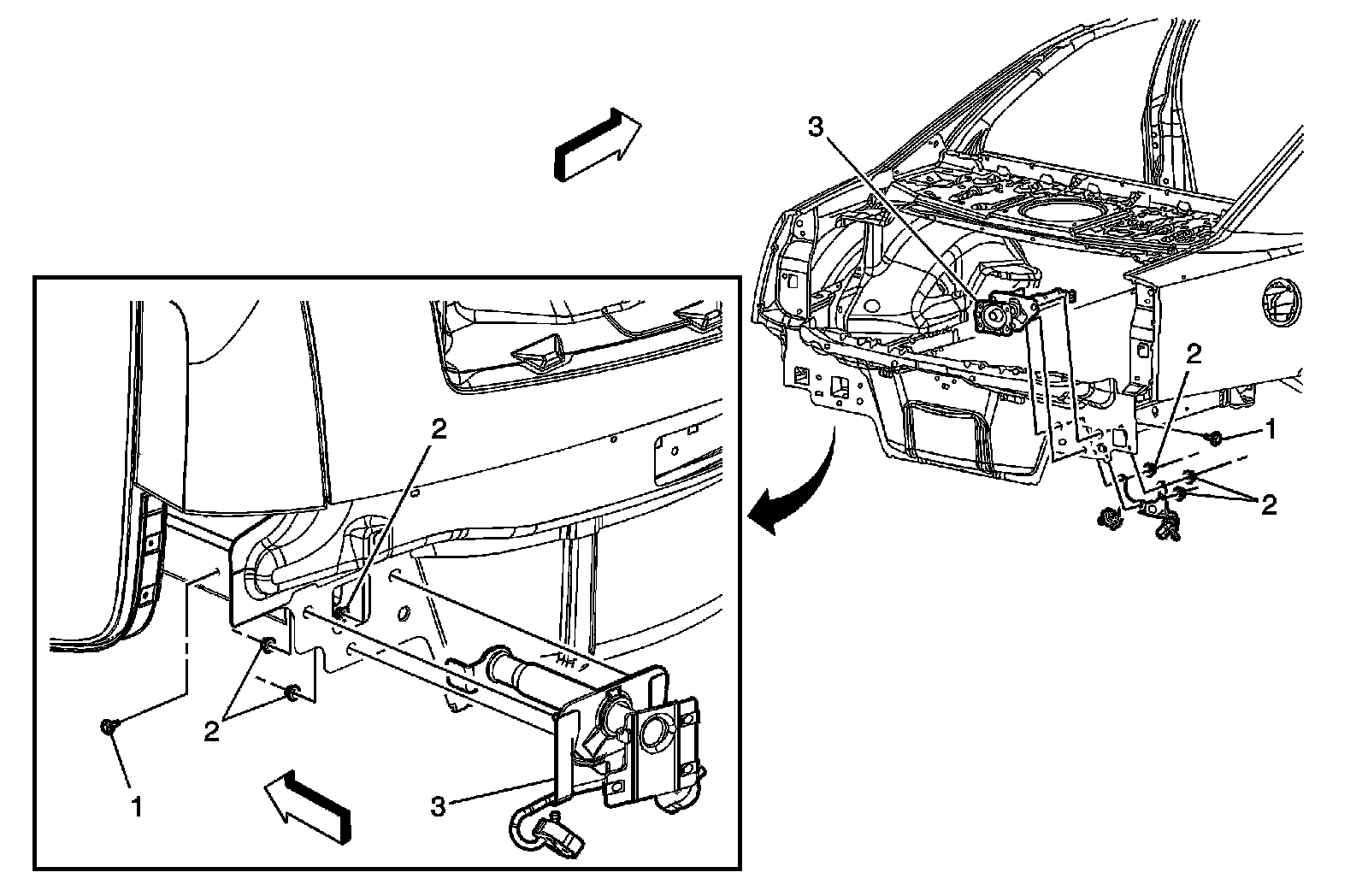

1Rear Energy Absorber Bolt (Qty: 1)
Caution:Refer to Fastener Caution .
Tighten 25 N �m (18 lb ft)

2Rear Energy Absorber Nut (Qty: 3)Tighten 25 N �m (18 lb ft)

3Rear Energy Absorber
