Rear Bumper Fascia Replacement (Wagon)

Rear Bumper Fascia Replacement (Wagon)












2.Disconnect the rear object sensor harness, right side inner fascia.

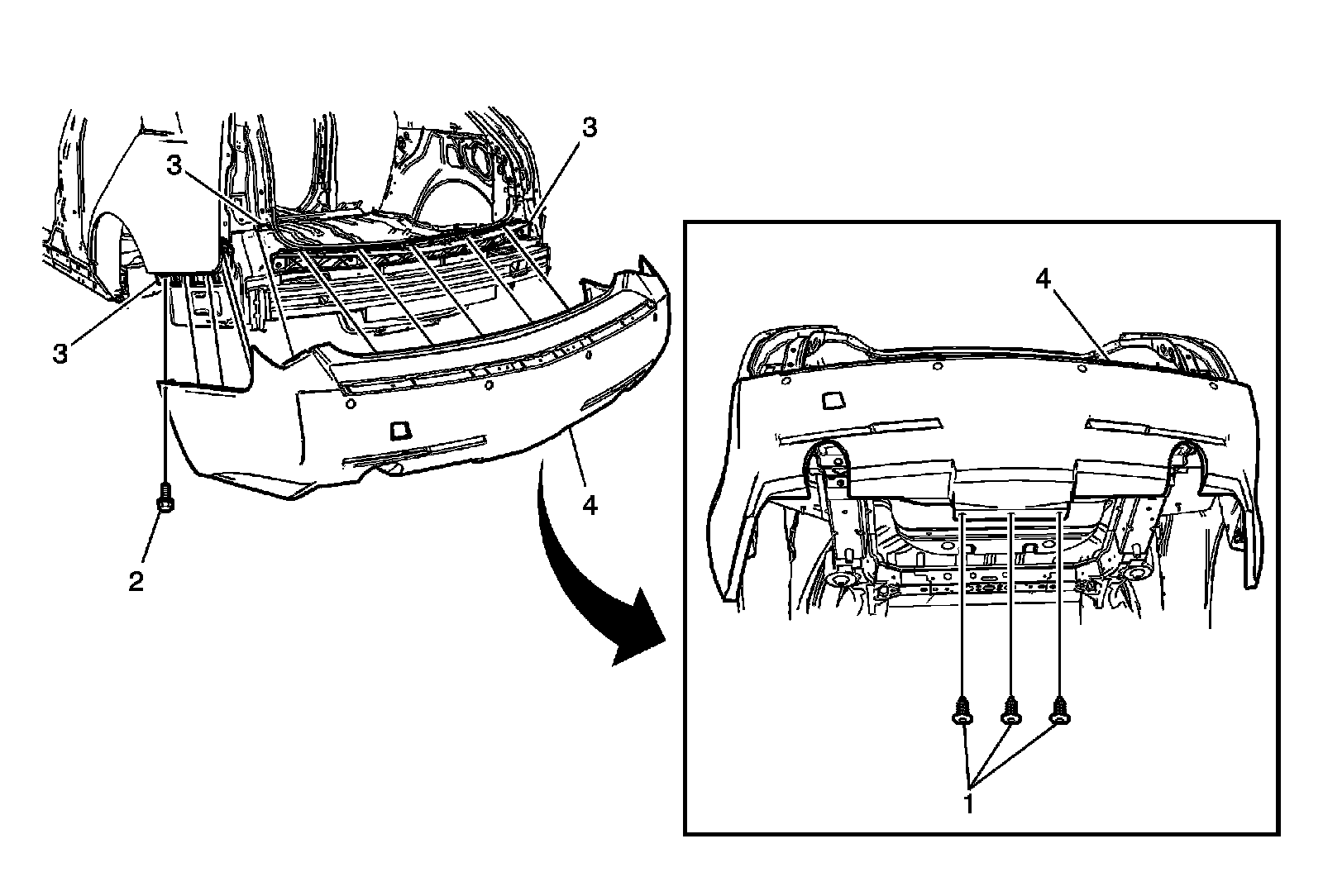

1Rear Fascia Lower Push-In Retainer (Qty: 3)

2Rear Fascia Bolt
Caution:Refer to Fastener Caution .
Tighten 10 N �m (89 lb in)

3Rear Fascia Support Retainer

Procedure
Carefully push a small nylon wedge between the fascia and the rear fascia retainers. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia retainers.

4Rear Fascia

Procedure
Transfer parts as needed.
