Rear Bumper Fascia Energy Absorber Replacement

Rear Bumper Fascia Energy Absorber Replacement












2.Remove the rear bumper fascia molding. Refer to Rear Bumper Fascia Molding Replacement .

3.Disconnect the rear object sensor harness from the rear bumper fascia energy absorber.

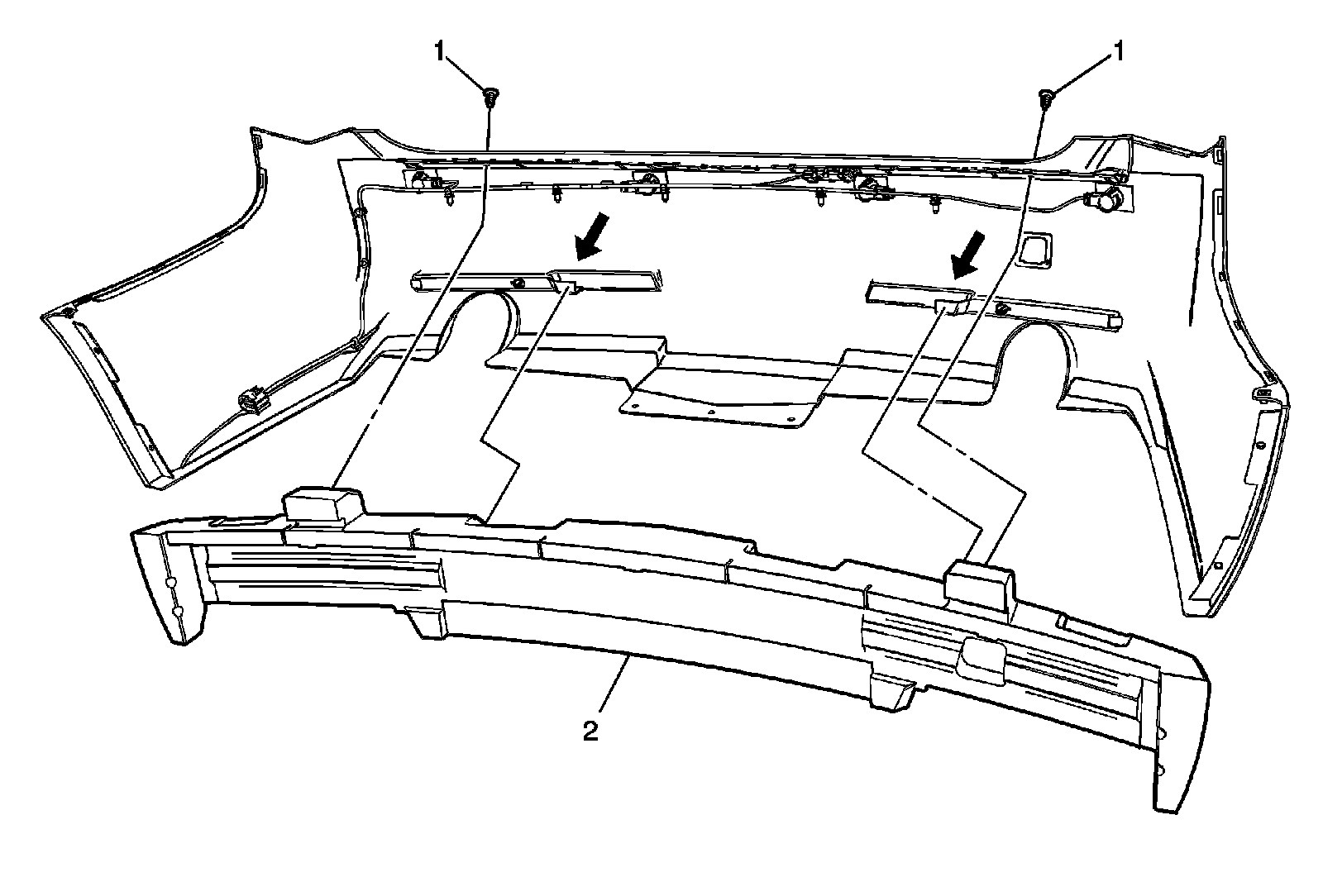

1Rear Bumper Fascia Energy Absorber Push-In Retainer (Qty: 2)

2Rear Bumper Fascia Energy Absorber

Procedure
Lift the bumper fascia energy absorber from the retainer supports.
