Radio/Navigation System Schematics




Radio/Navigation System Schematics

Radio Power, Ground, DLC and Audio Communications

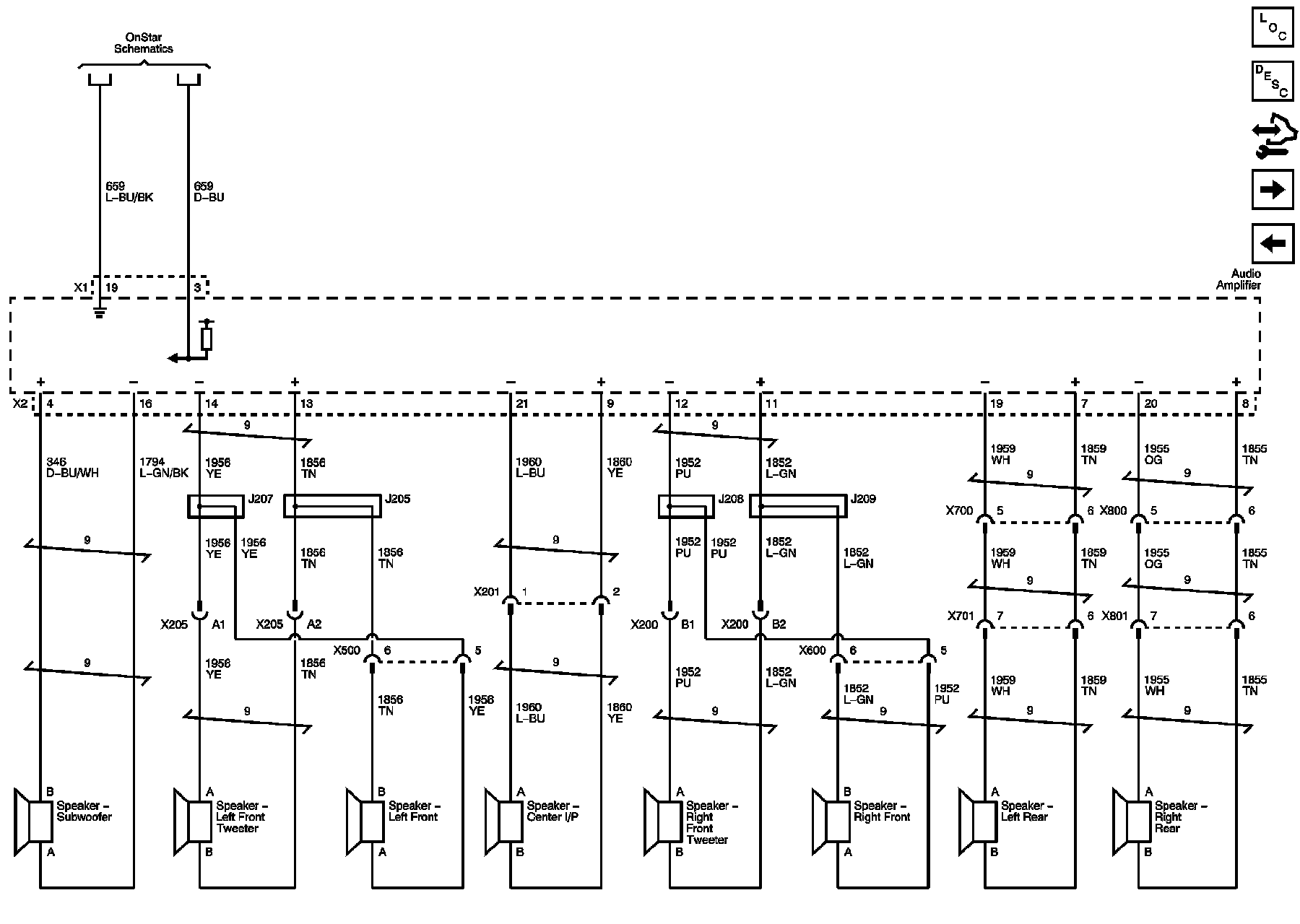

Speakers (UX8)

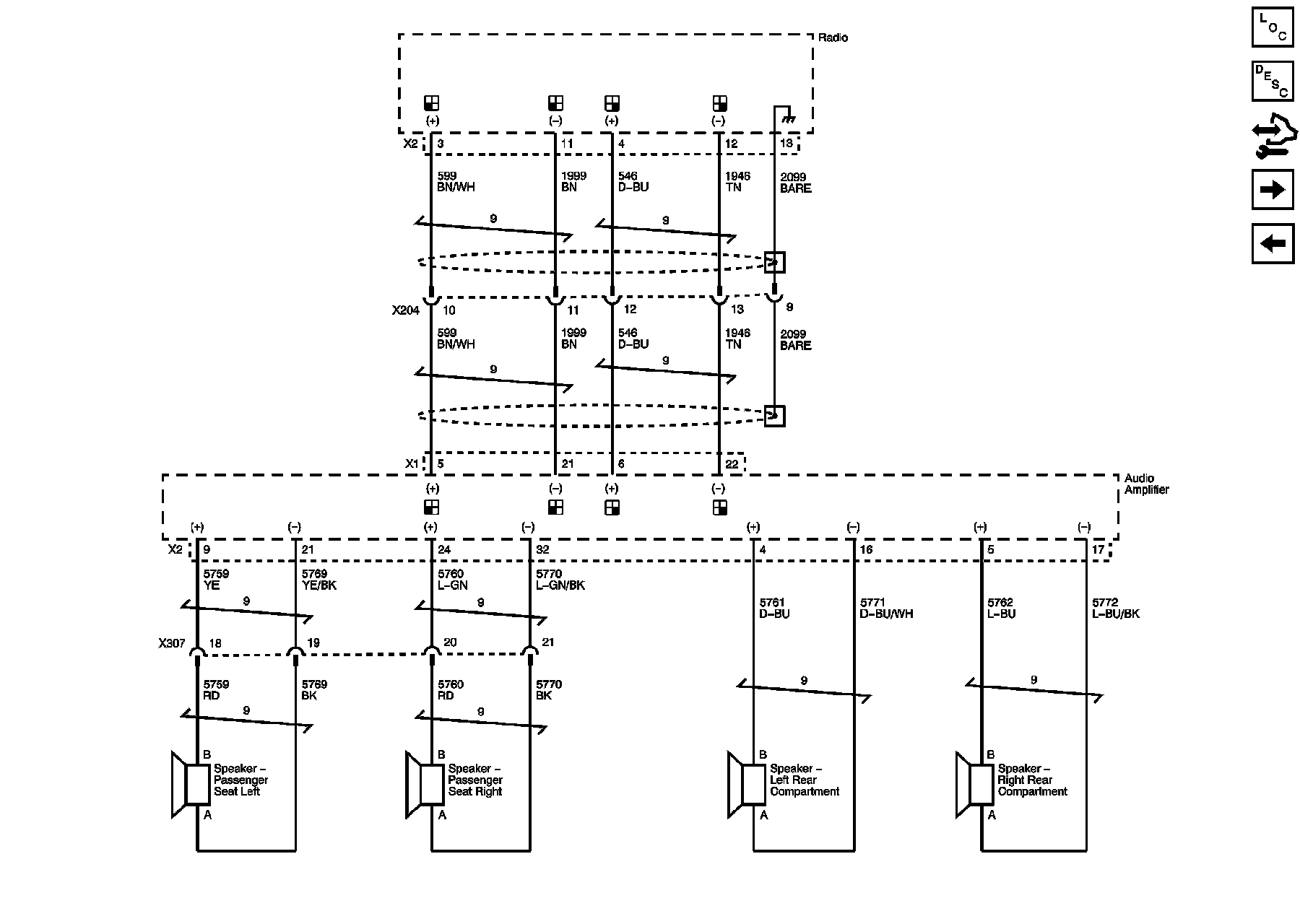

Speakers (UY5) (1 of 3)

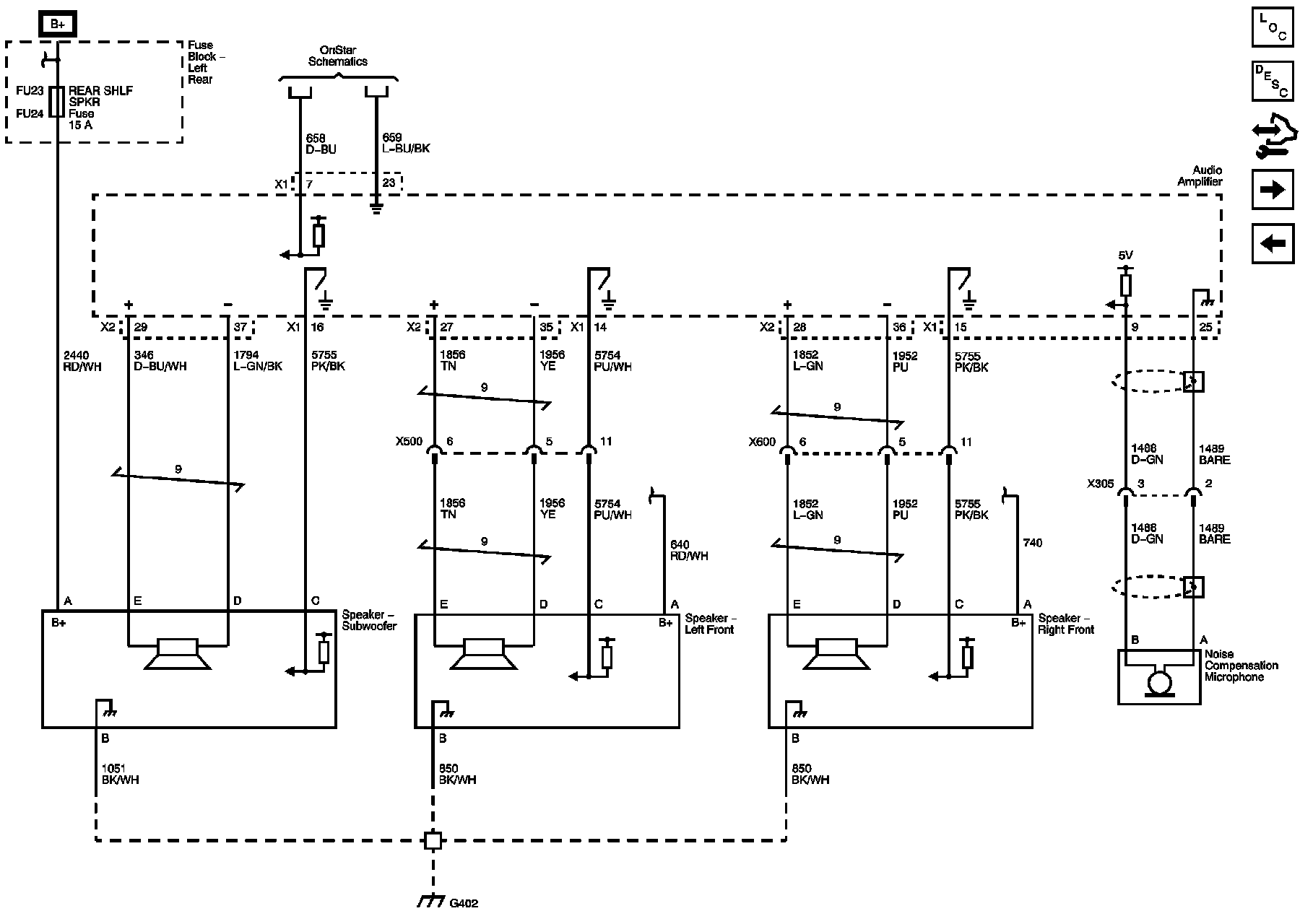

Speakers (UY5) (2 of 3)

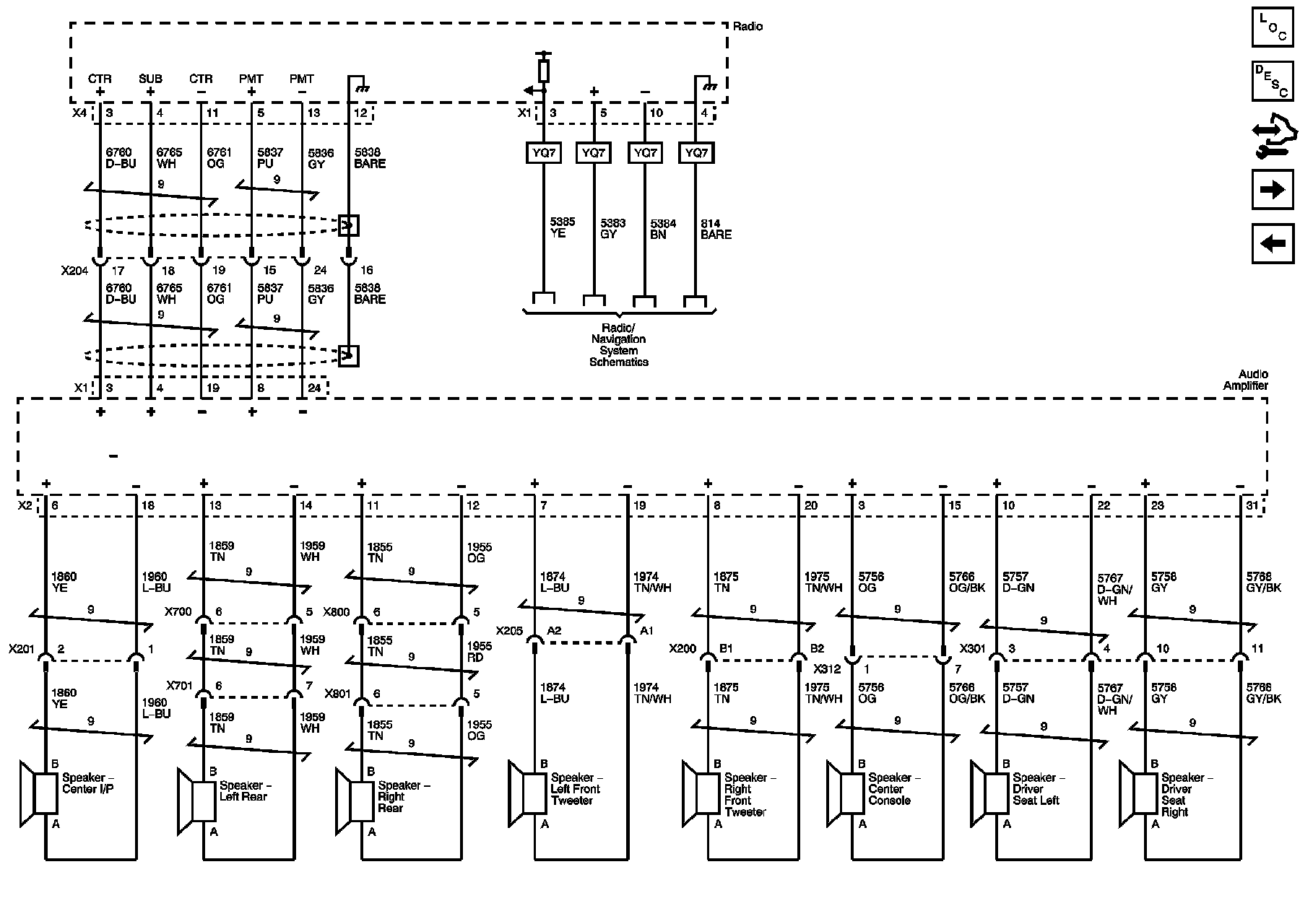

Speakers (UY5) (3 of 3)

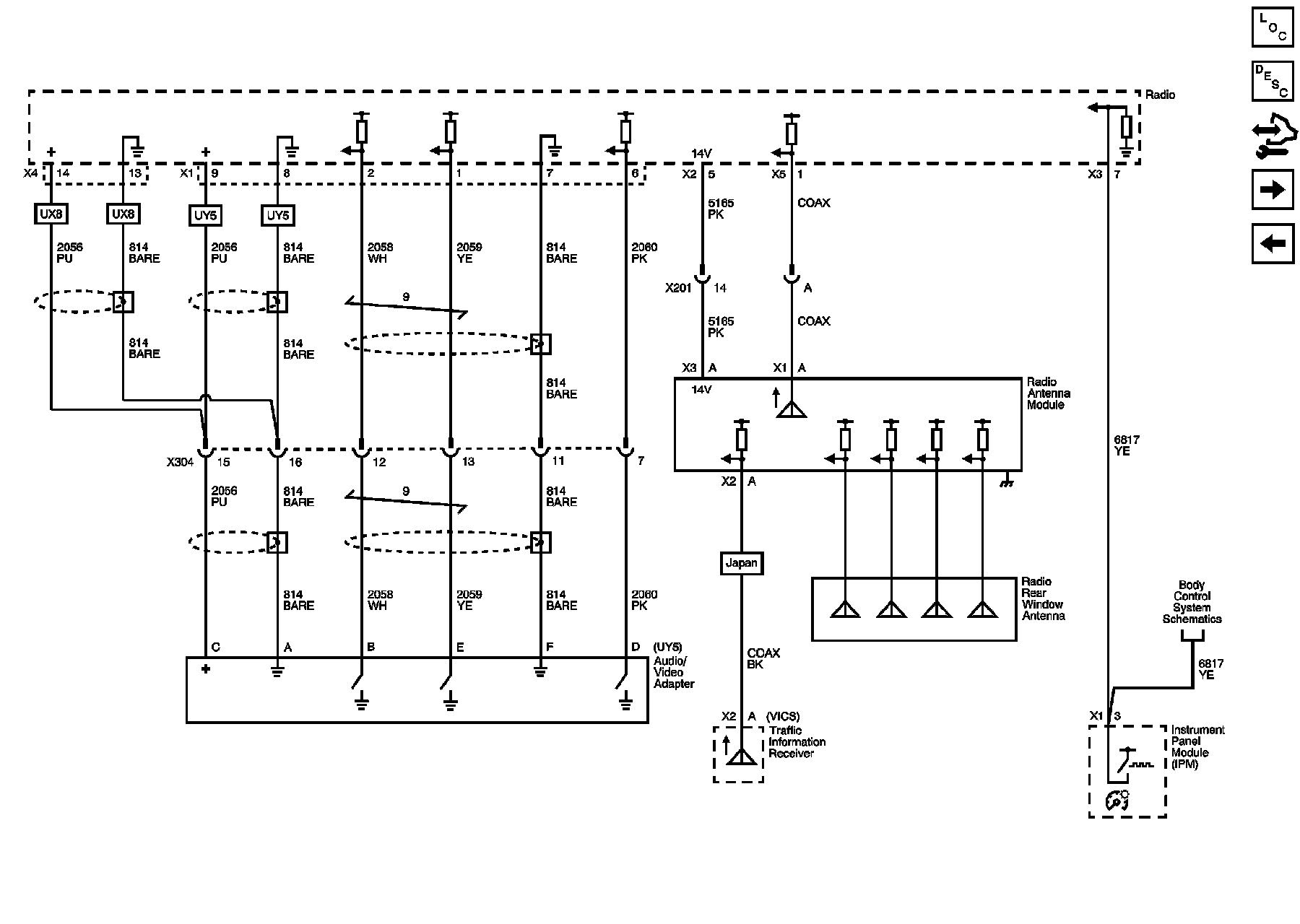

Radio Antennas, Audio/Video Adapter





Digital Radio Receiver (U2K)





Traffic Information Receiver Module (VICS) - Japan Only

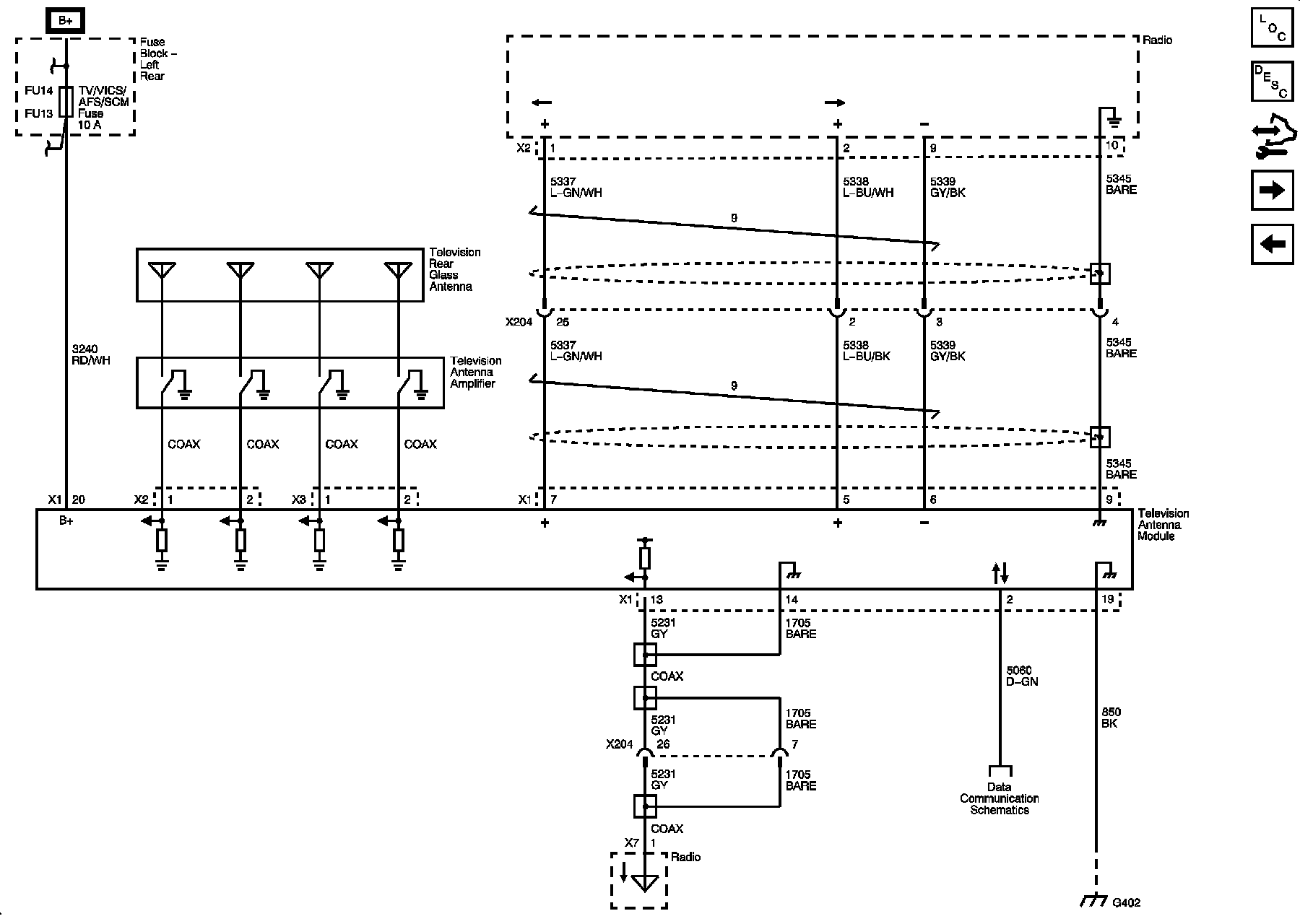

TV Tuner (YQ6 or YQ7)

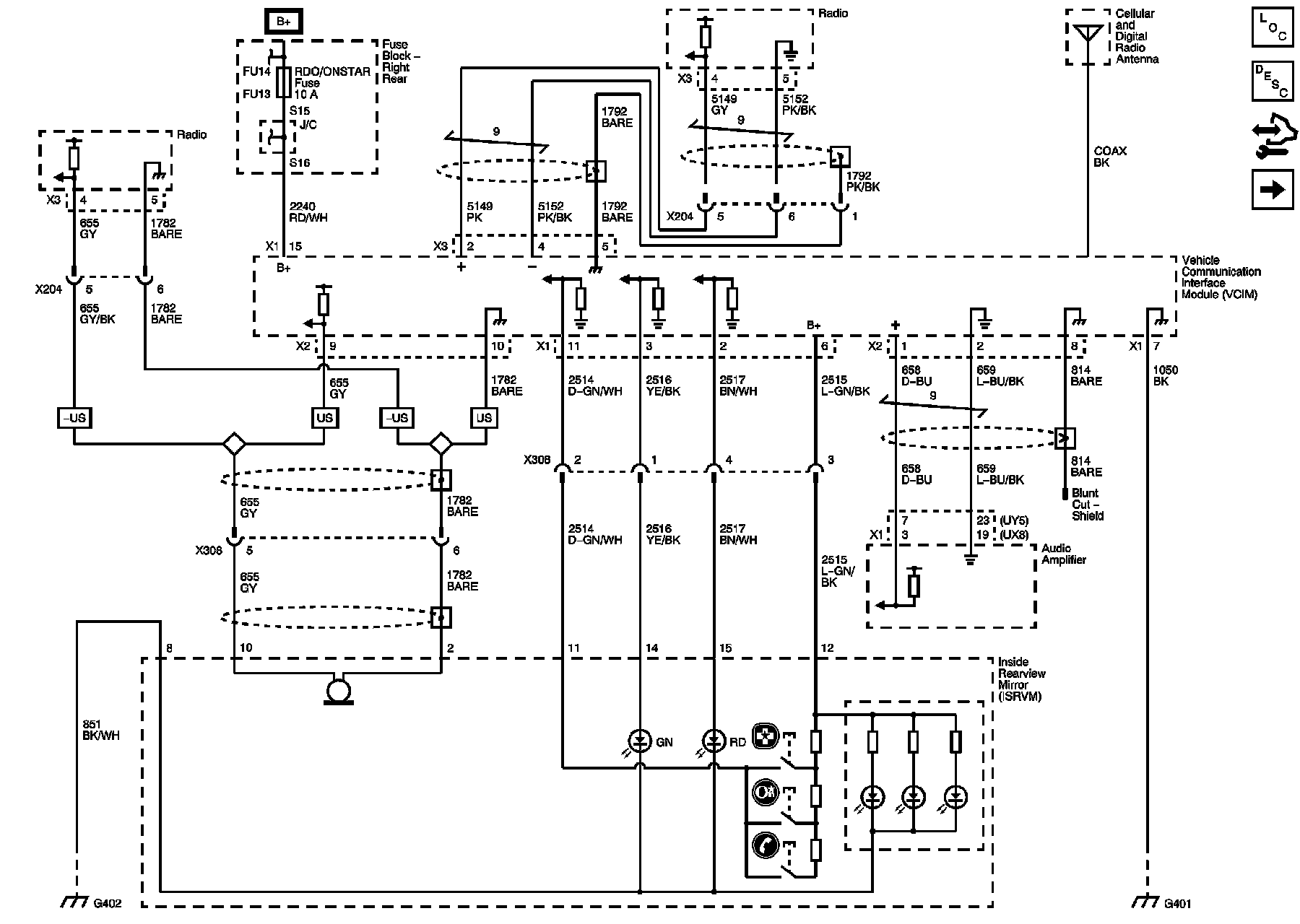

Microphone, VSS and GPS Antenna
