11. Engine Flywheel Removal

Engine Flywheel Removal

Special Tools

EN 46106 Flywheel Holding Tool

For equivalent regional tools, refer to Special Tools (Special Tools).

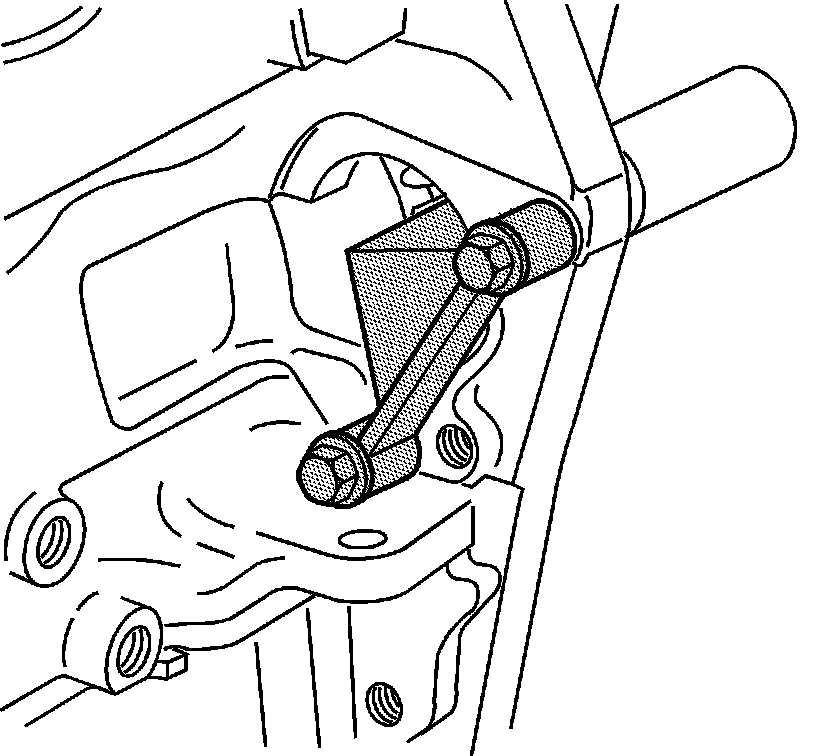

1. Install the EN 46106 through the starter mounting hole.

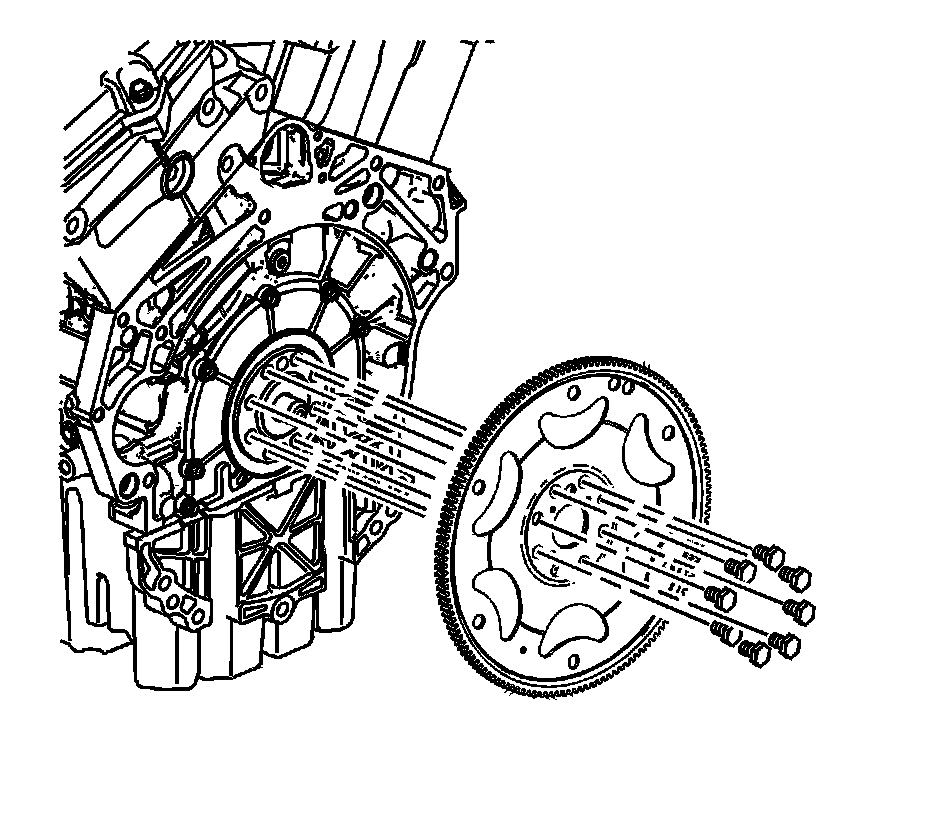

2. Remove the engine flywheel bolts and discard.
3. Remove the engine flywheel from the crankshaft.




4. Remove the EN 46106.
