Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

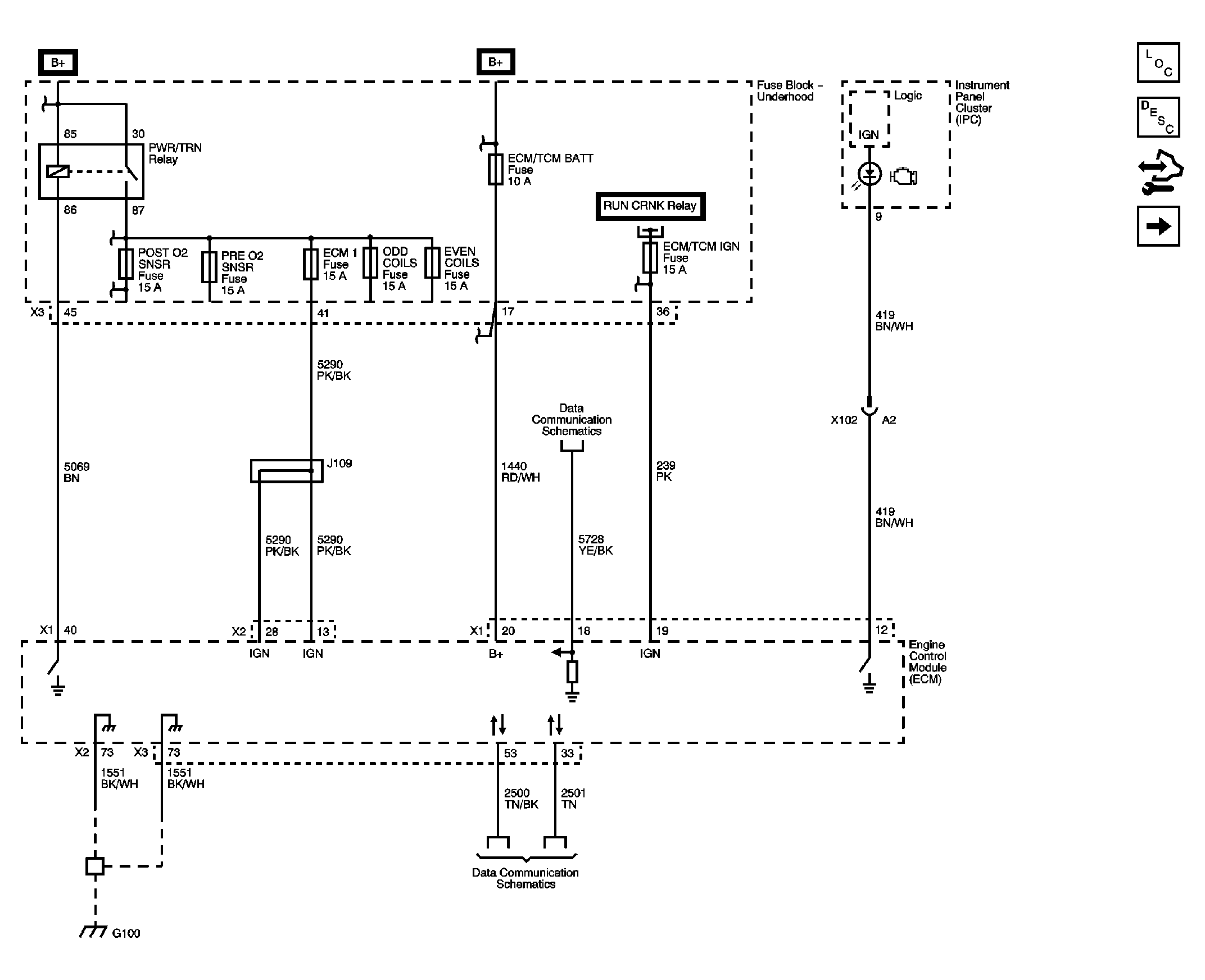

Fig 1: ECM Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

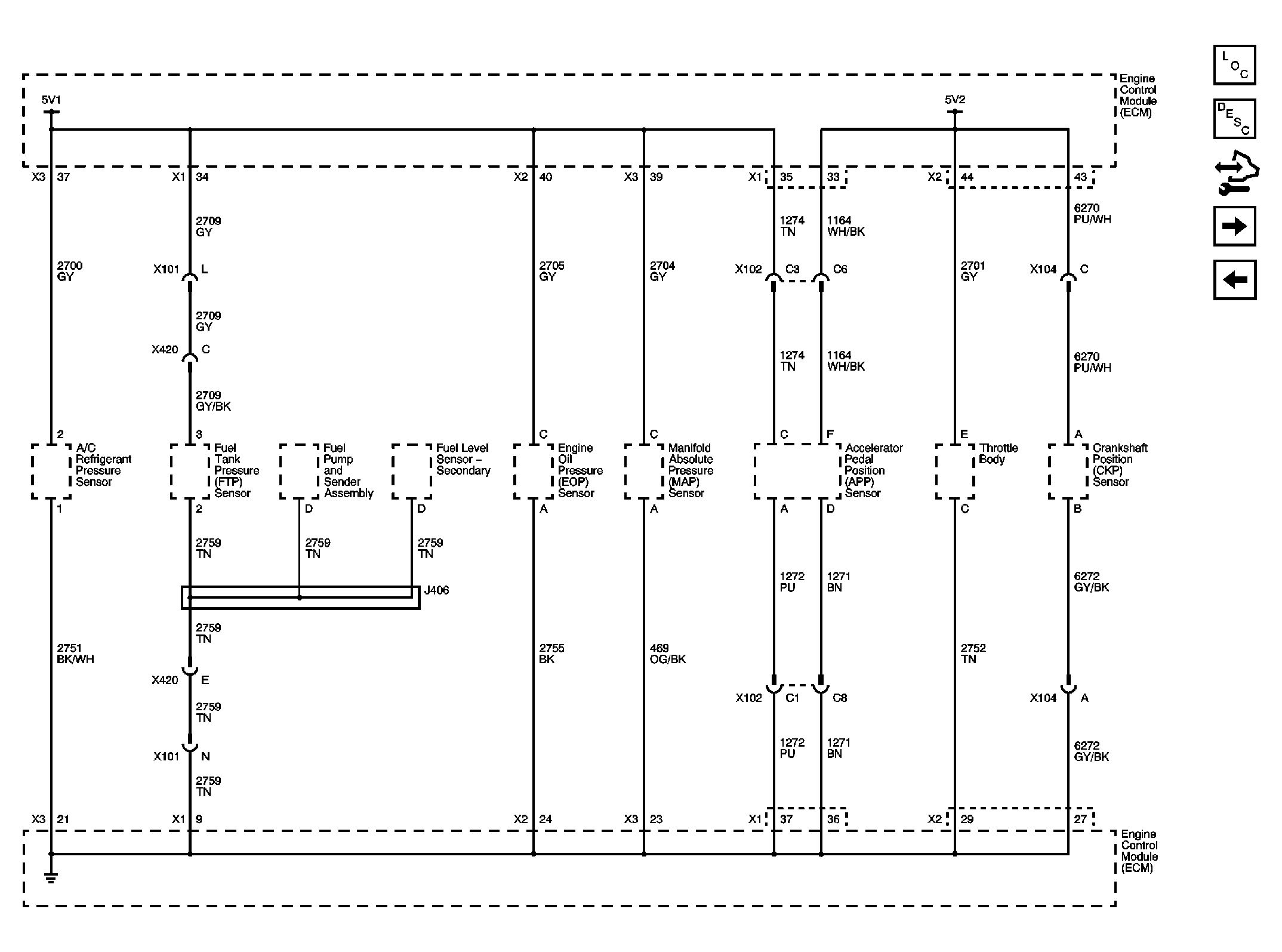

Fig 2: Engine Data Sensors - 5-Volt and Low Reference (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - 5-Volt and Low Reference 2 of 2

Courtesy of GENERAL MOTORS CORP.

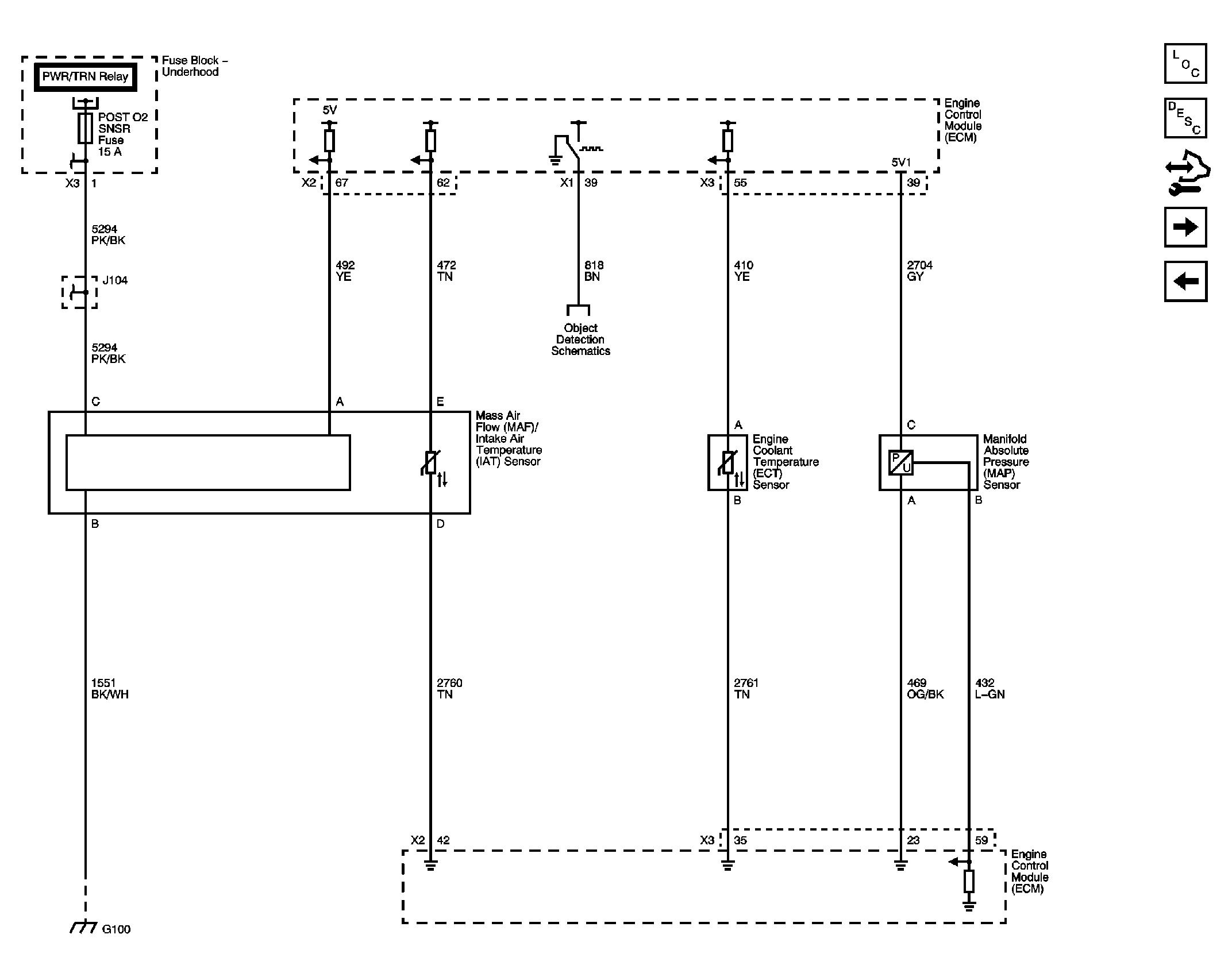

Fig 4: Engine Data Sensors - MAF, Pressure, Temperature

Courtesy of GENERAL MOTORS CORP.

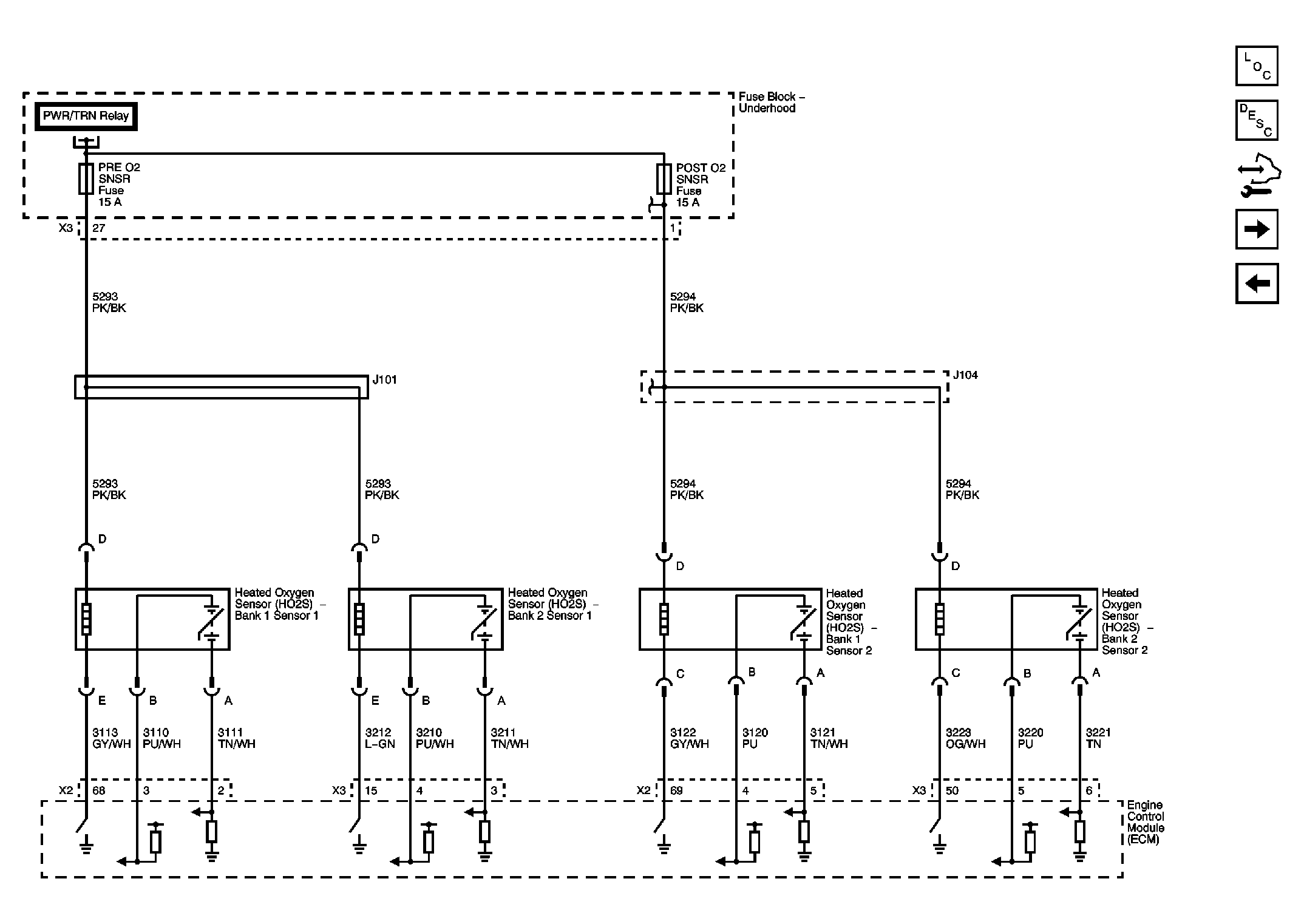

Fig 5: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

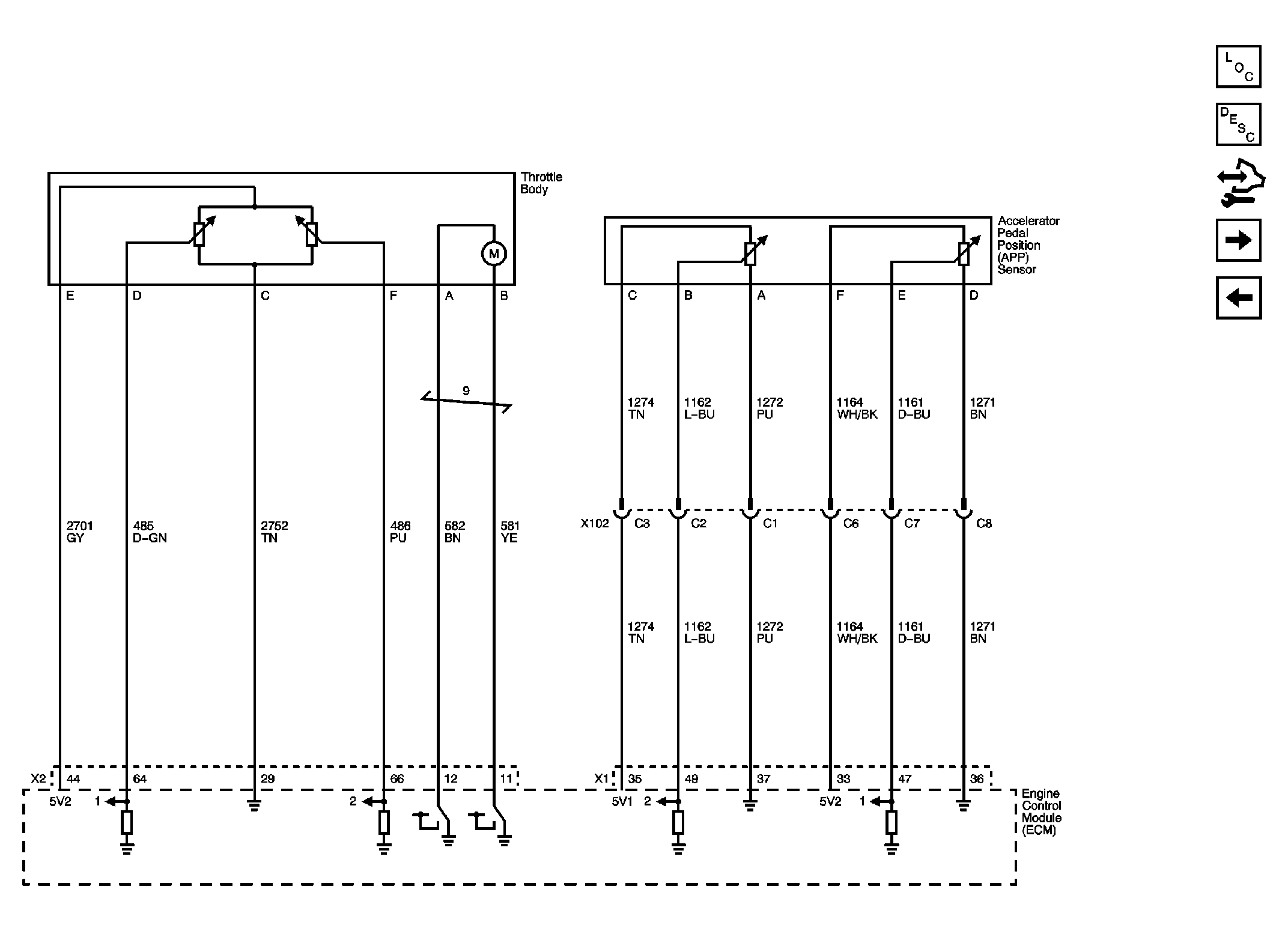

Fig 6: Engine Data Sensors - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

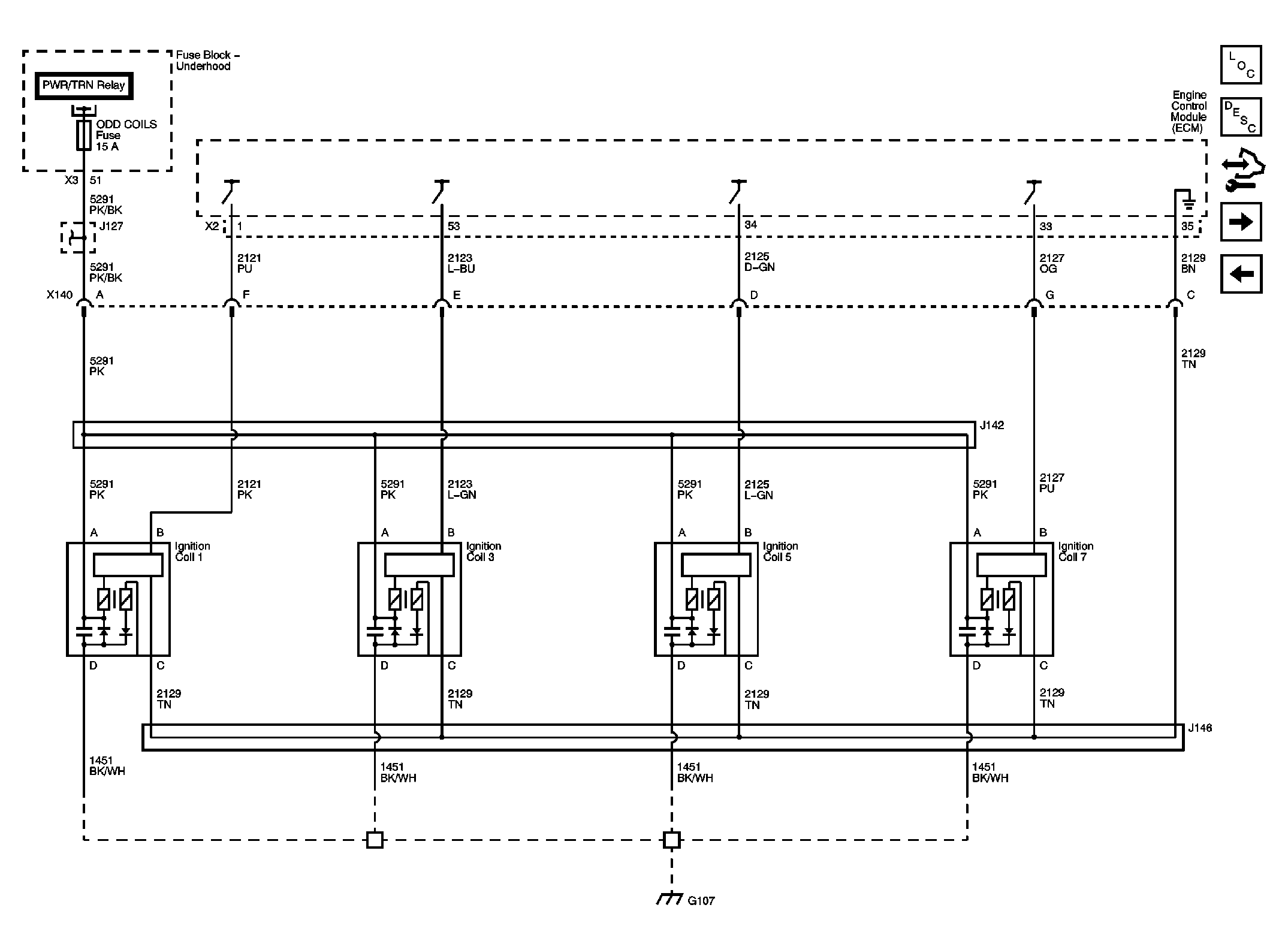

Fig 7: Ignition Controls - Ignition System Bank 1

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Ignition System Bank 2

Courtesy of GENERAL MOTORS CORP.

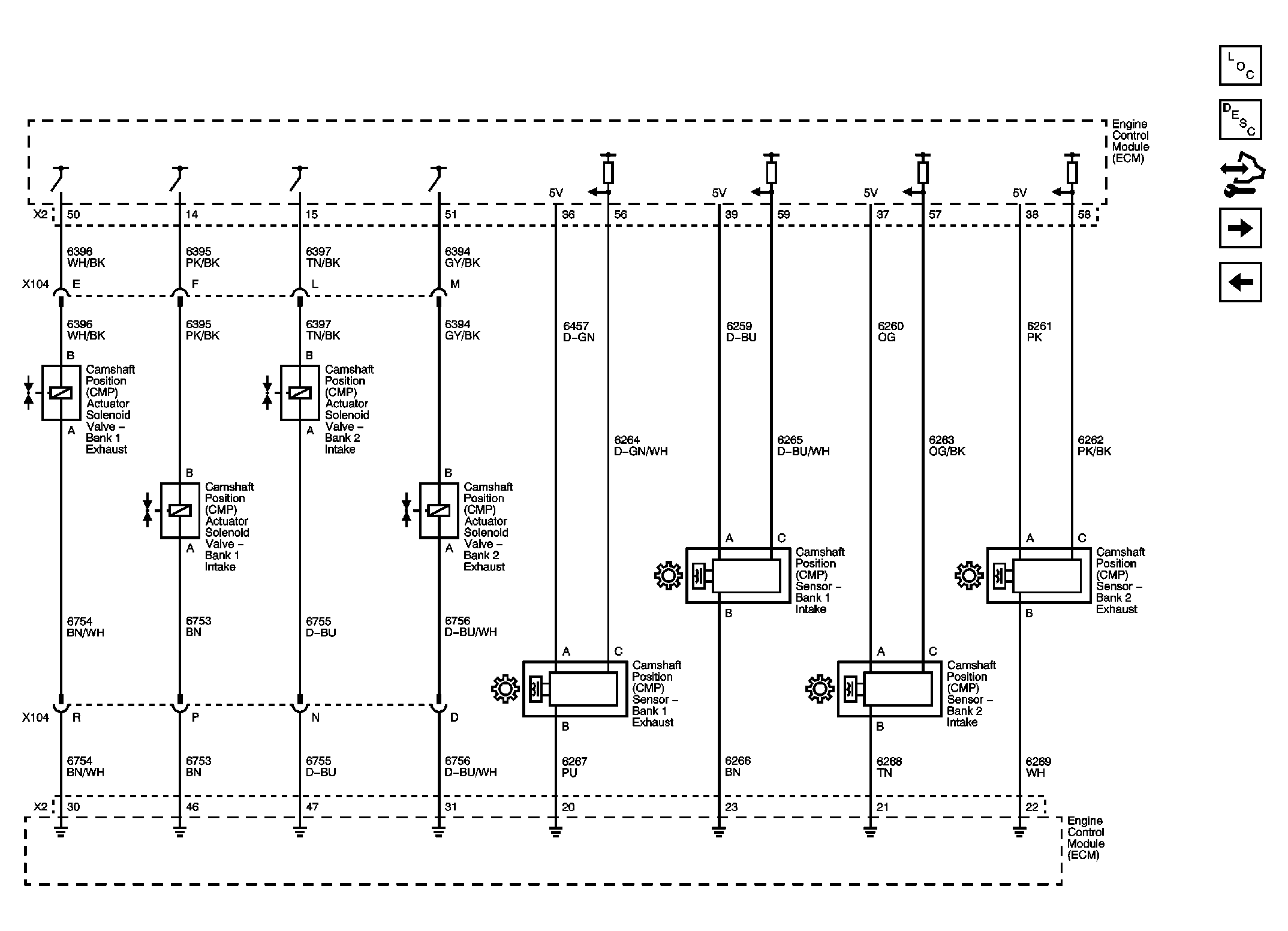

Fig 9: Ignition Controls - CMP Sensors and Solenoids

Courtesy of GENERAL MOTORS CORP.

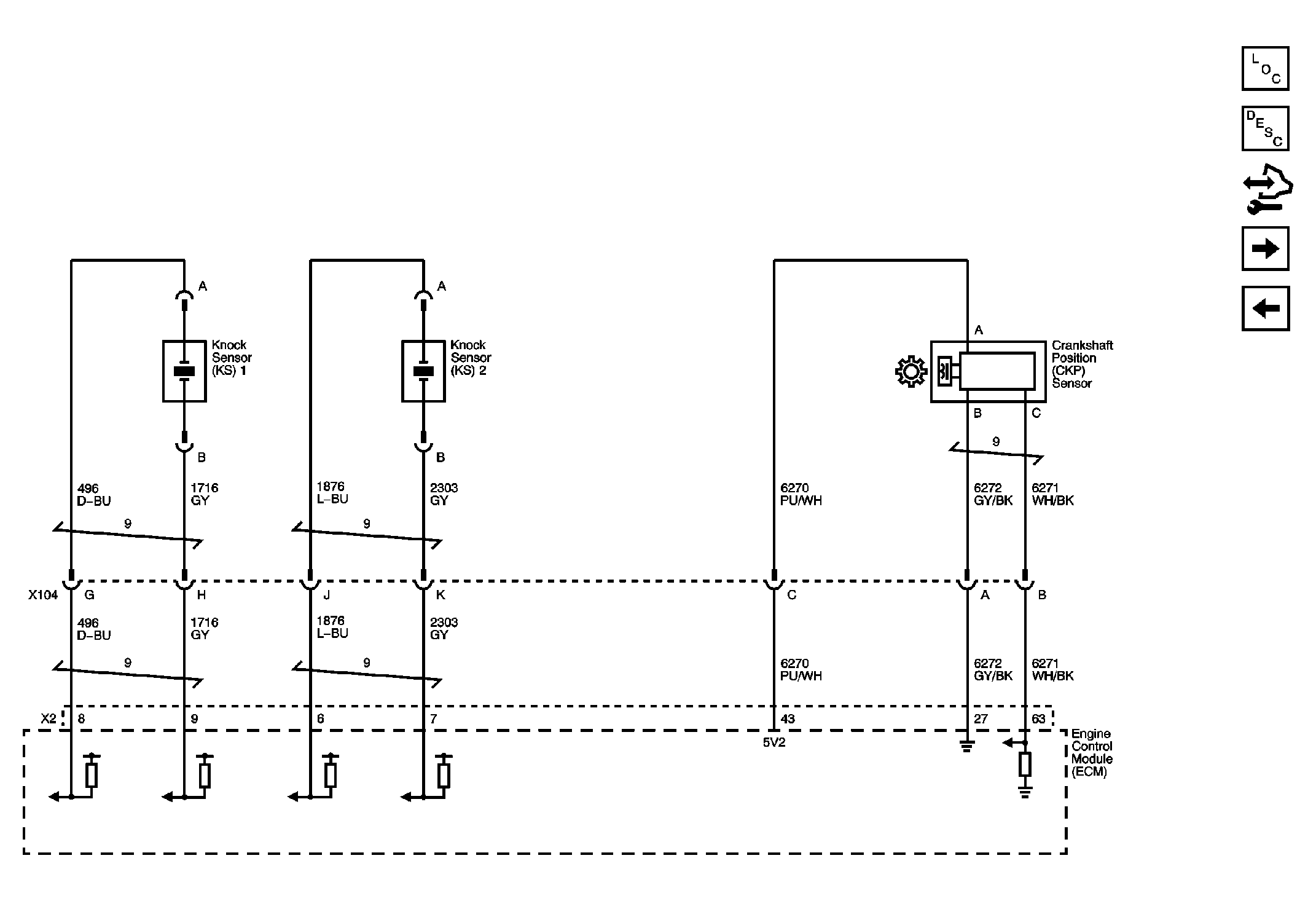

Fig 10: Crankshaft Position (CKP) Sensor and Knock Sensors

Courtesy of GENERAL MOTORS CORP.

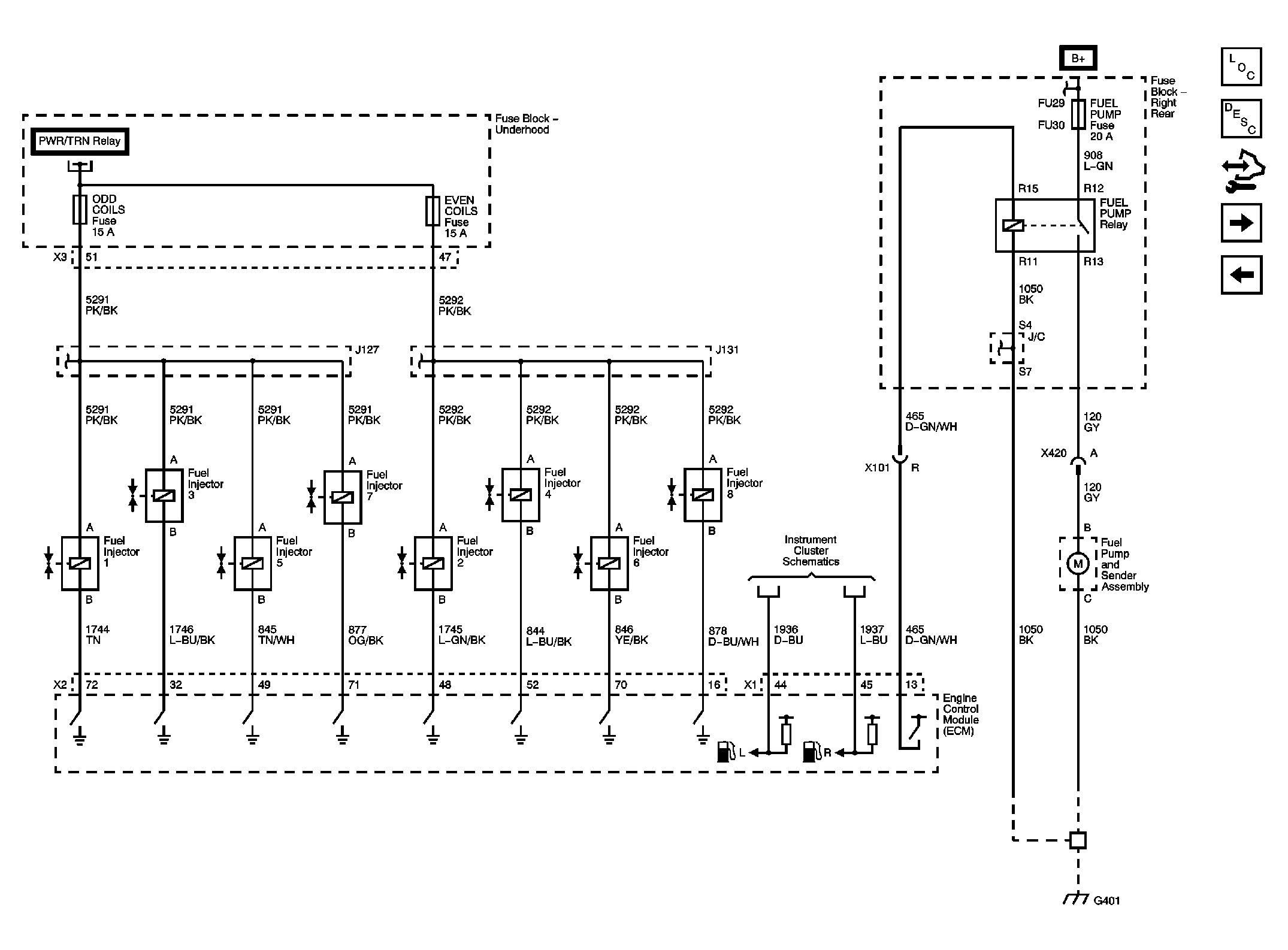

Fig 11: Fuel Controls - Injectors and Pump

Courtesy of GENERAL MOTORS CORP.

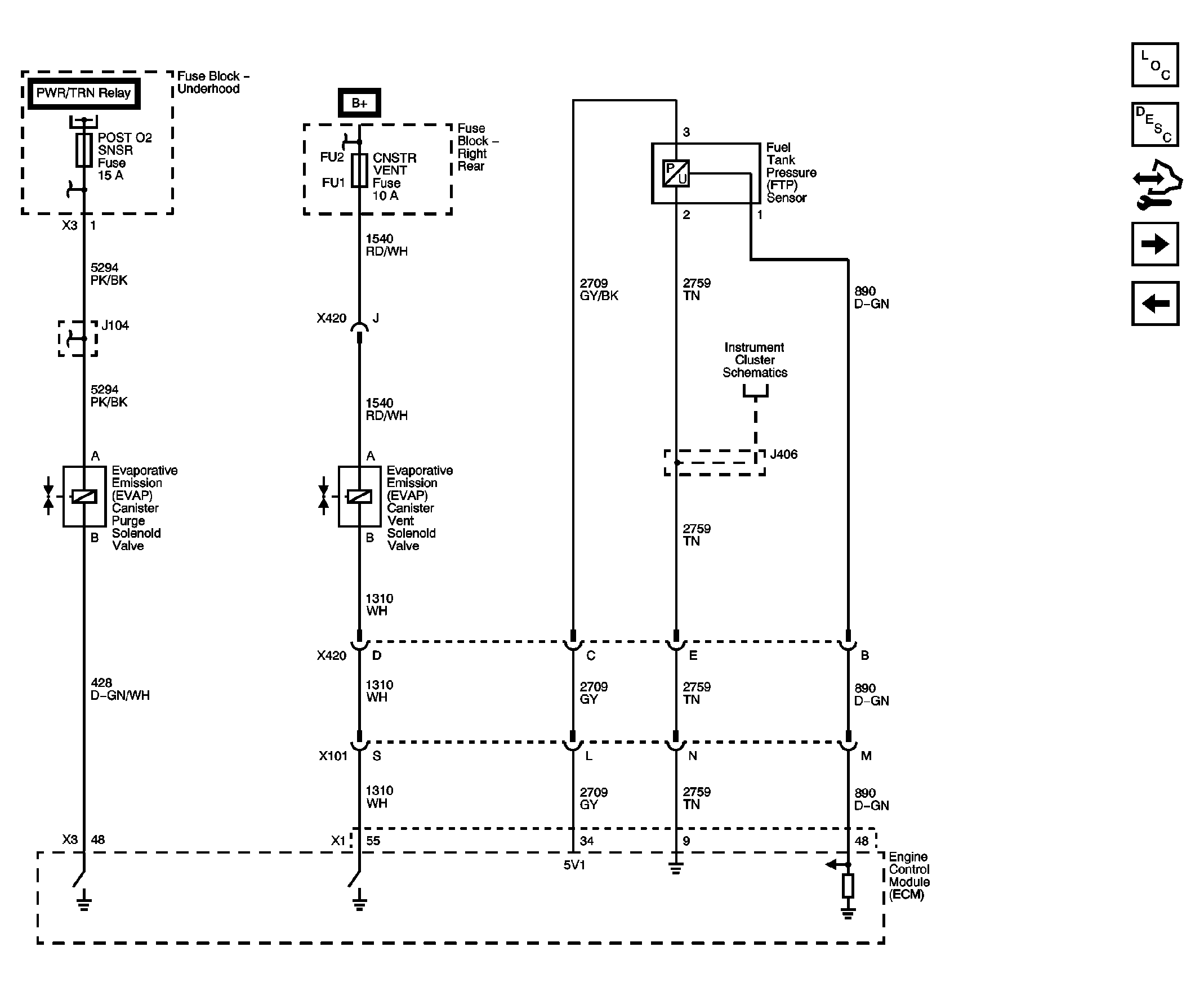

Fig 12: Fuel Controls - EVAP and Fuel Tank Pressure (FTP) Sensor

Courtesy of GENERAL MOTORS CORP.

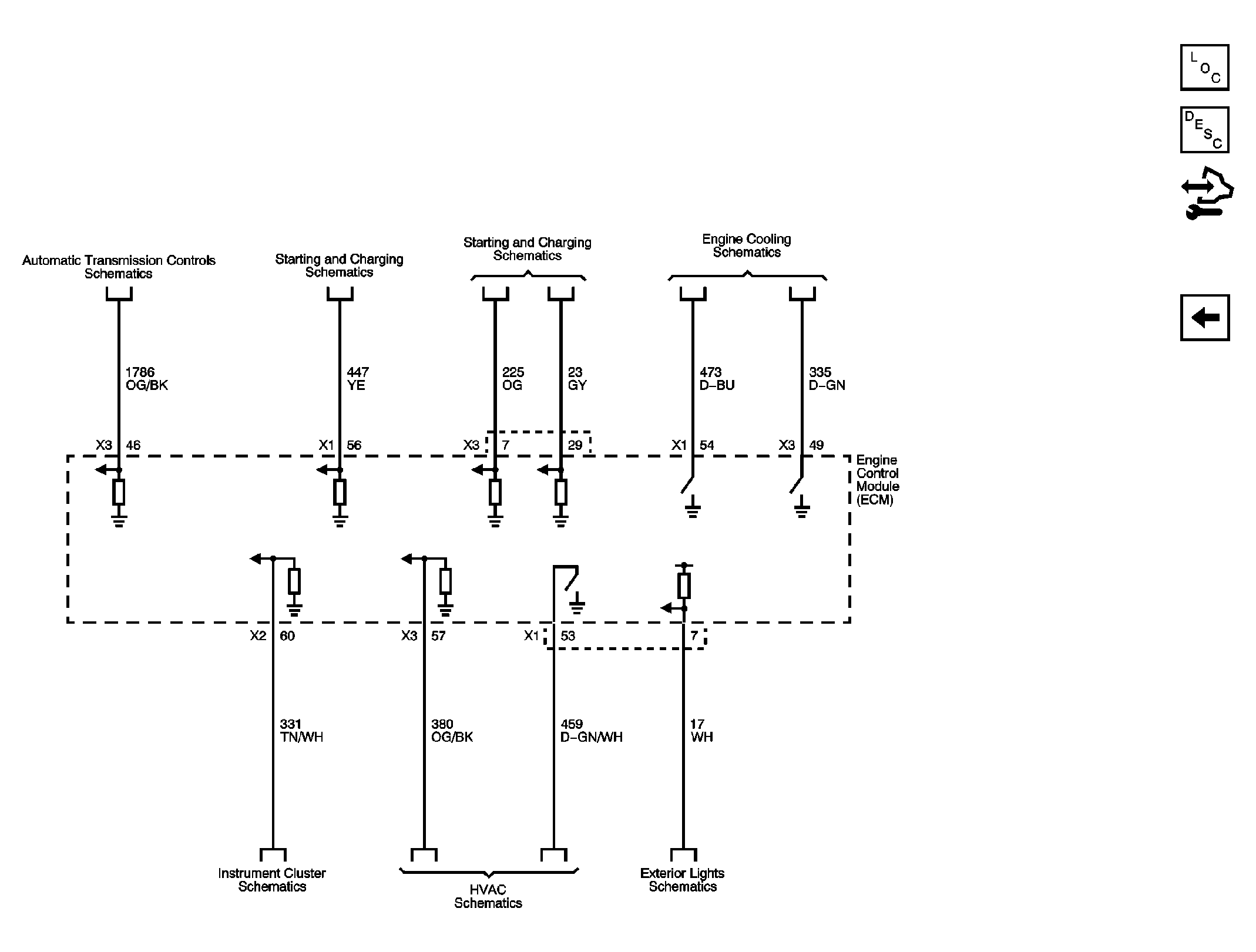

Fig 13: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
