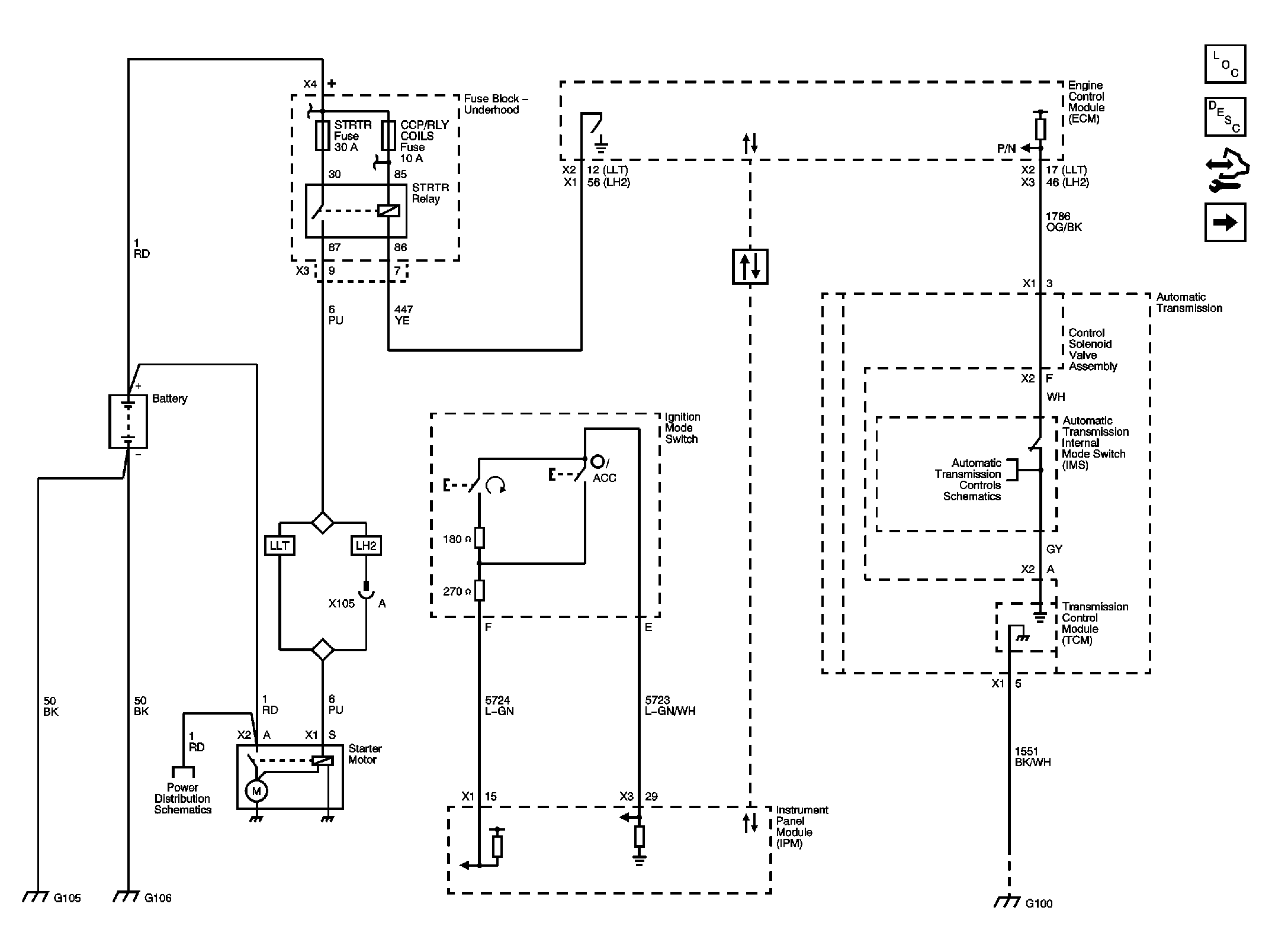

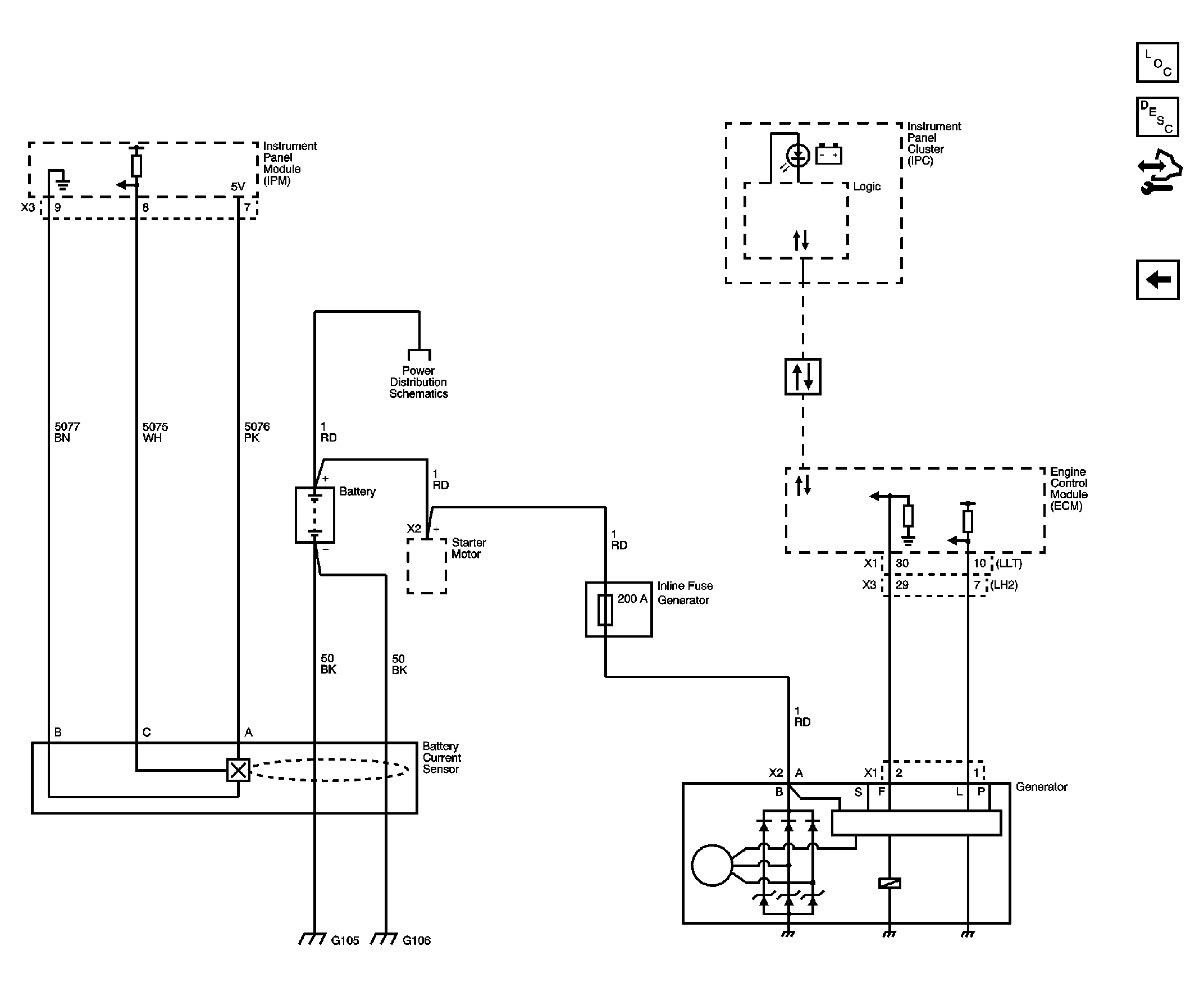

Home >> Cadillac >> 2010 >> STS 3.6 V, AWD >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
