Power Distribution Schematics

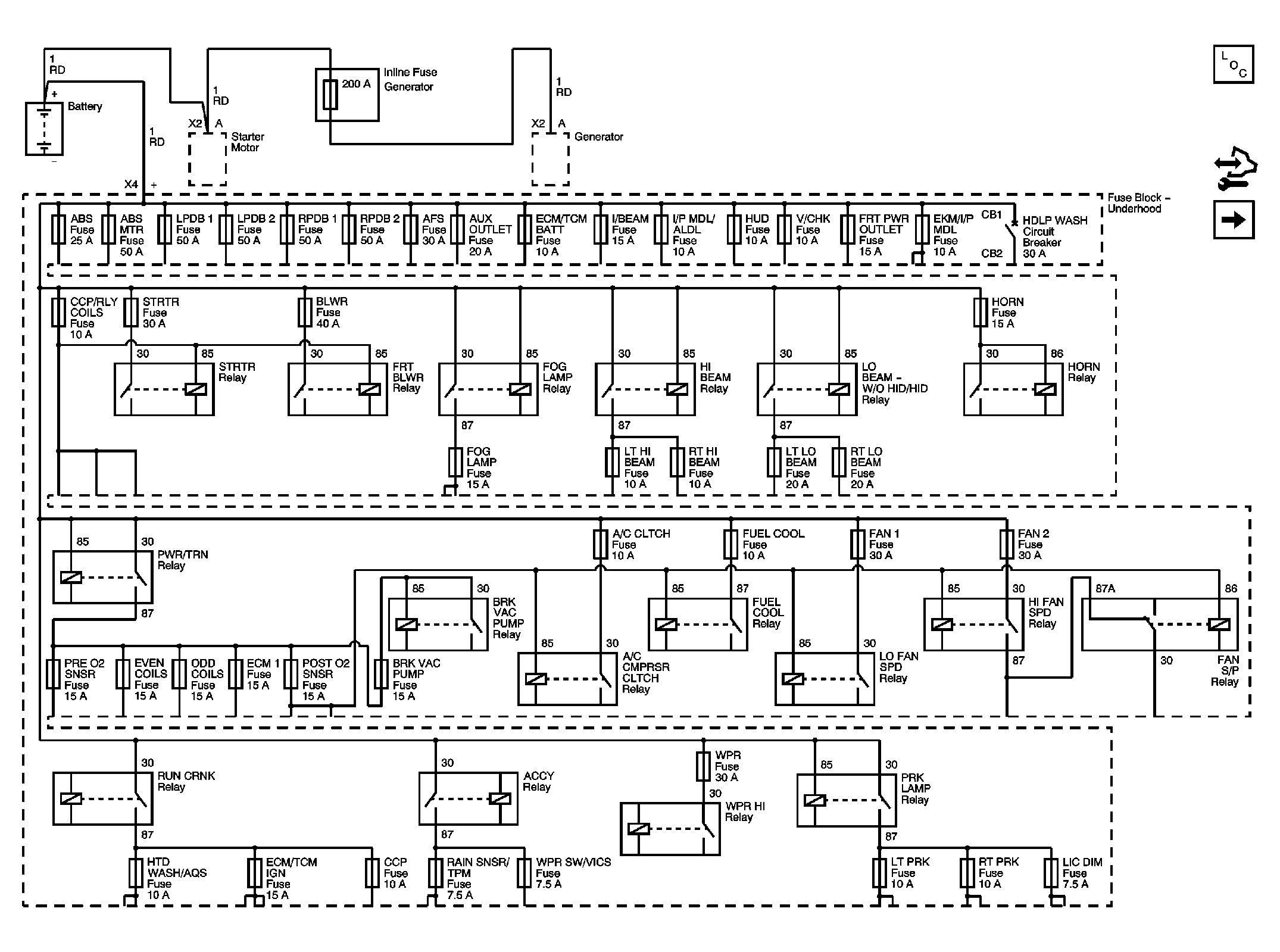

Fig 1: Fuse Block - Underhood Bussing

Courtesy of GENERAL MOTORS CORP.

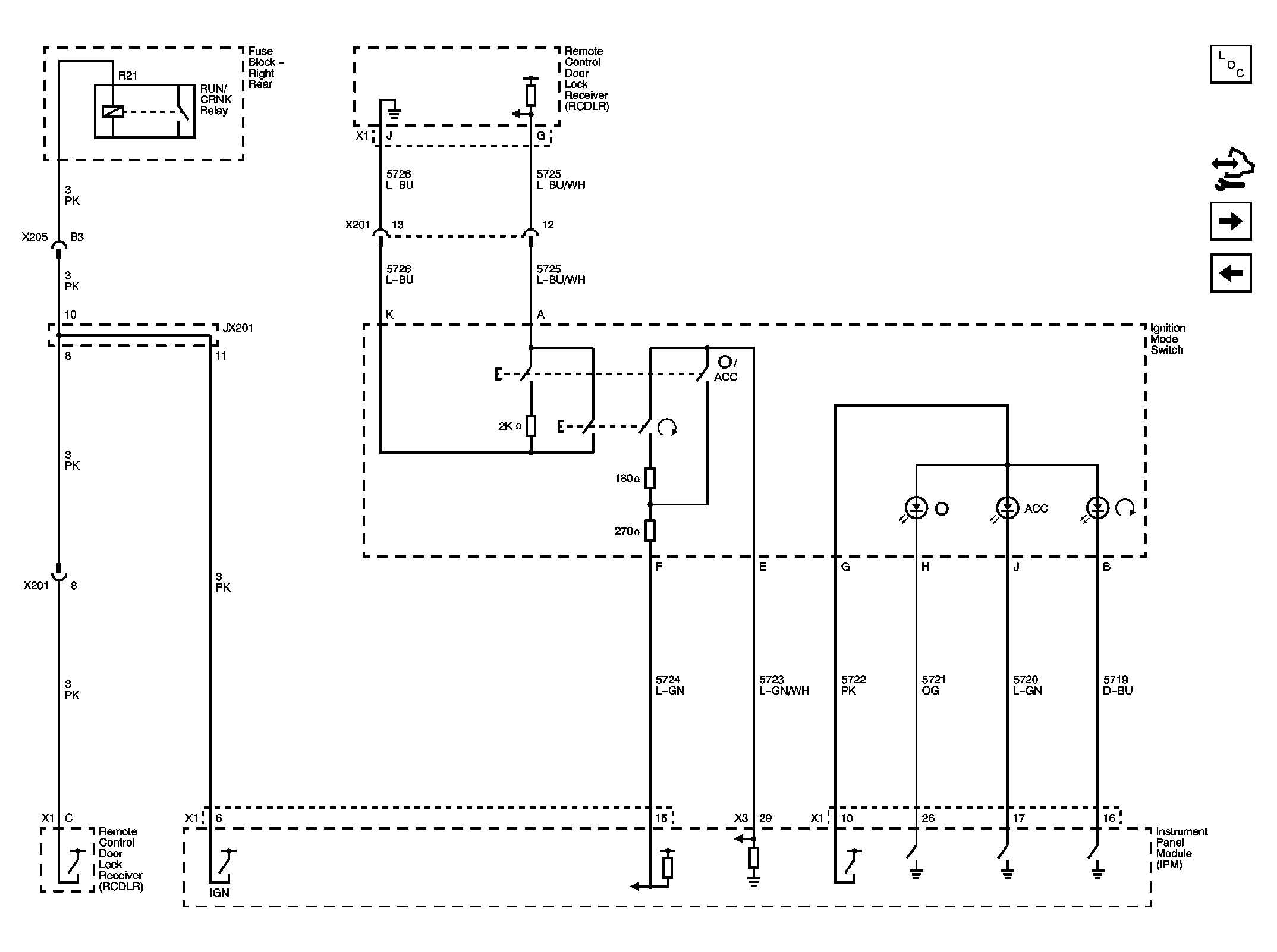

Fig 2: Ignition Mode Switch

Courtesy of GENERAL MOTORS CORP.

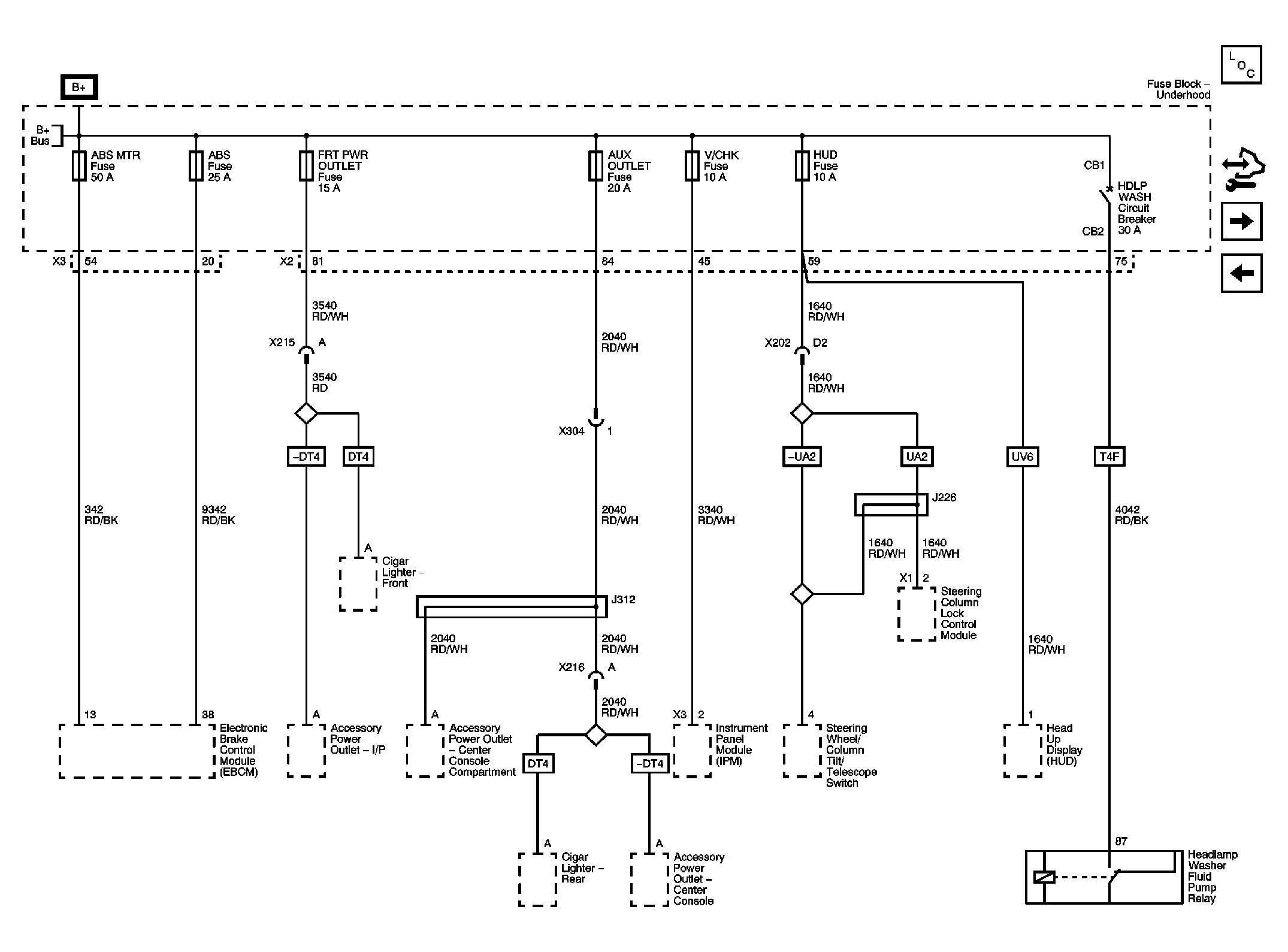

Fig 3: ABS, ABS MTR, AUX OUTLET, FRT PWR OUTLET, HUD, and V/CHK Fuses, HDLP WASH Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

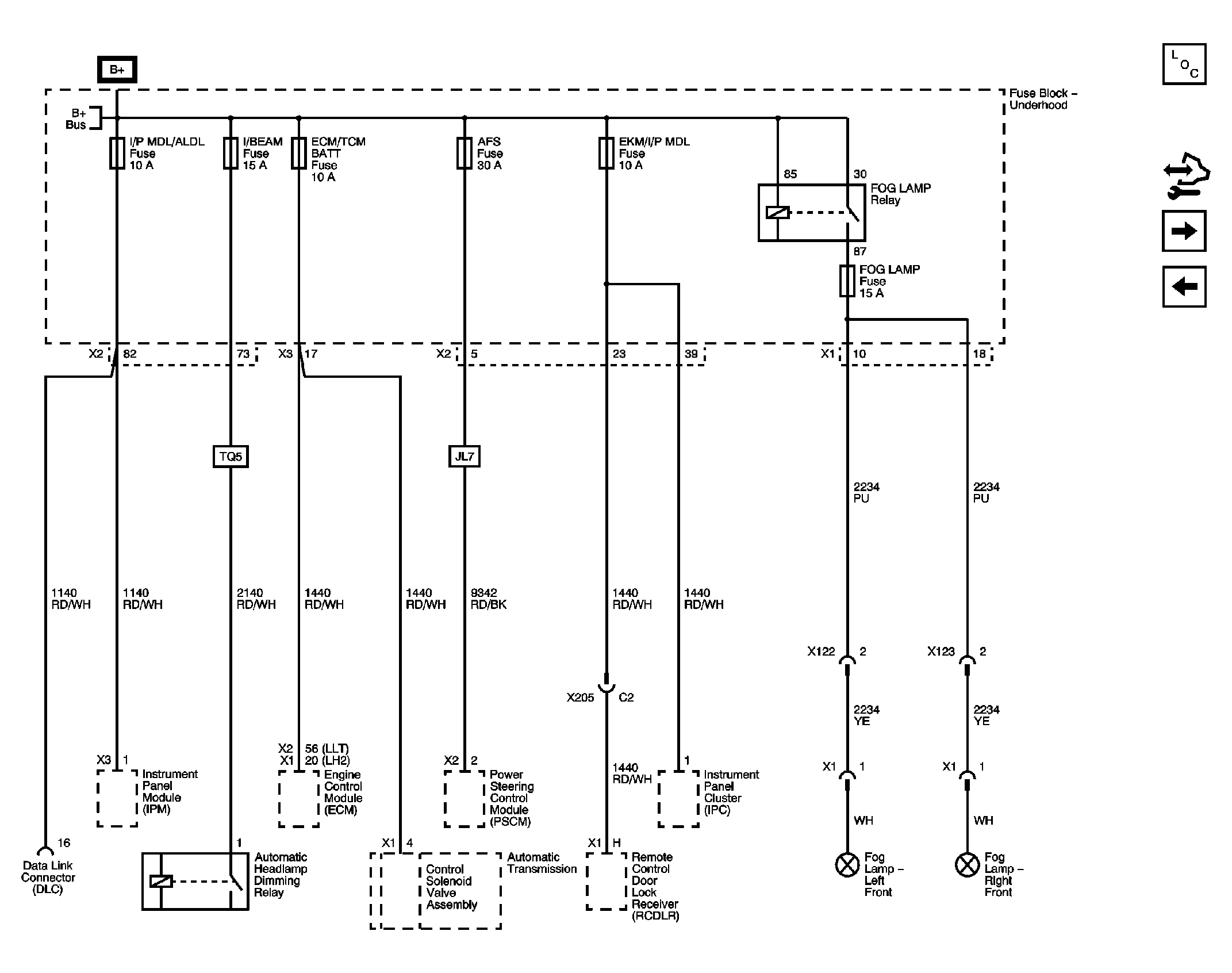

Fig 4: AFS, ECM/TCM BATT, EKM/I/P MDL, FOG LAMP, HORN, I/BEAM, I/P MDL/ALDL, and WPR Fuses

Courtesy of GENERAL MOTORS CORP.

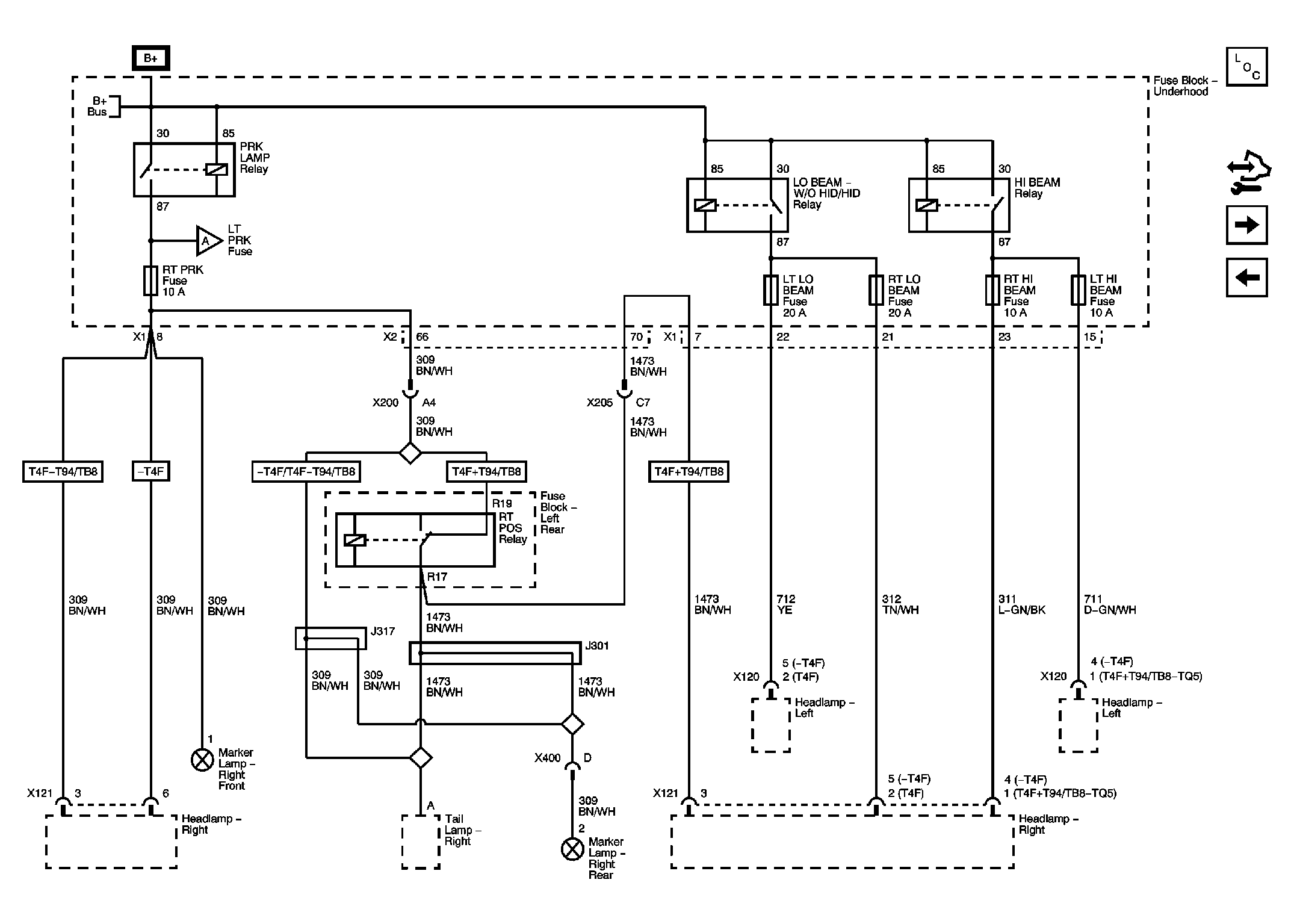

Fig 5: LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM, and RT PRK Fuses

Courtesy of GENERAL MOTORS CORP.

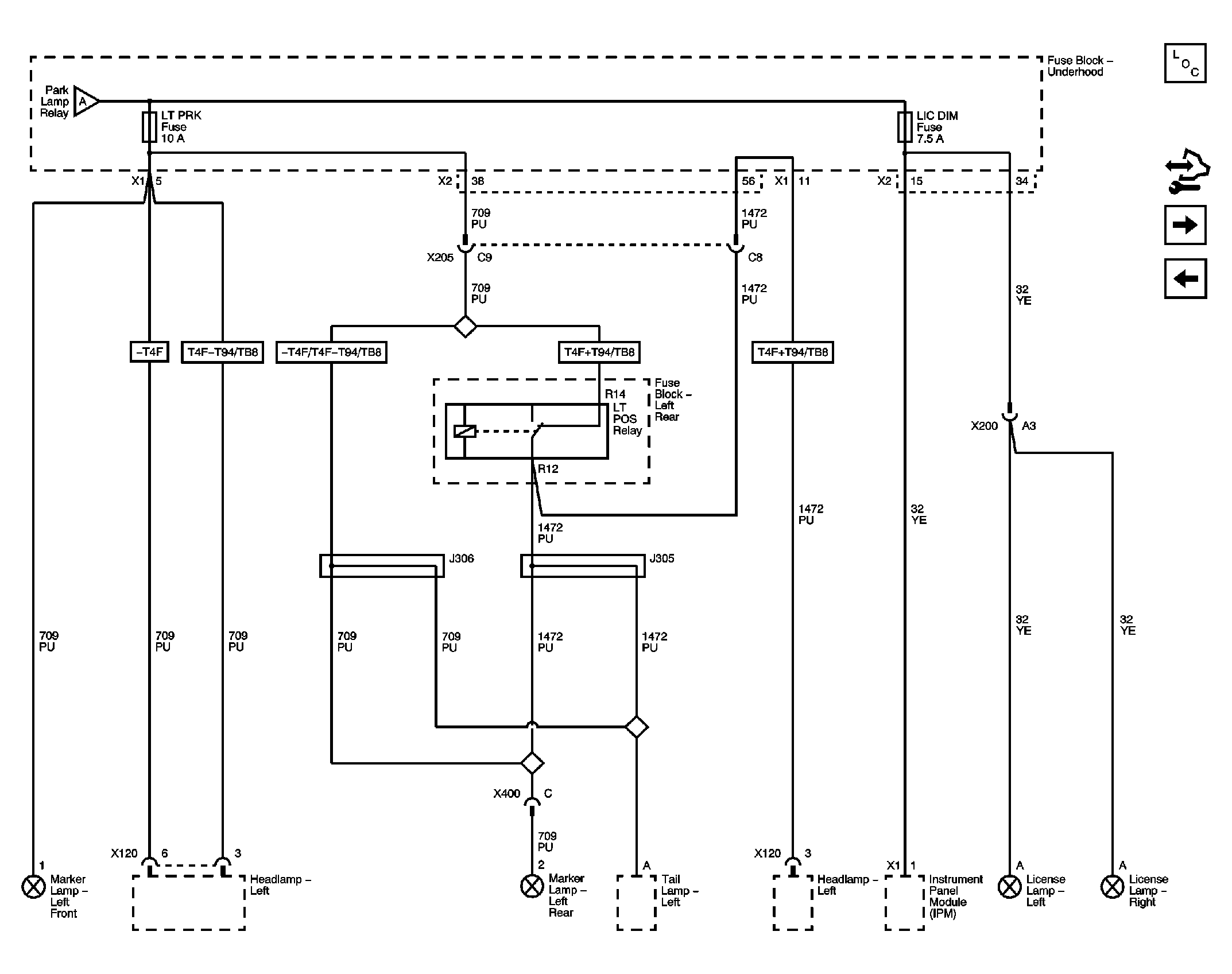

Fig 6: LIC DIM and LT PRK Fuses

Courtesy of GENERAL MOTORS CORP.

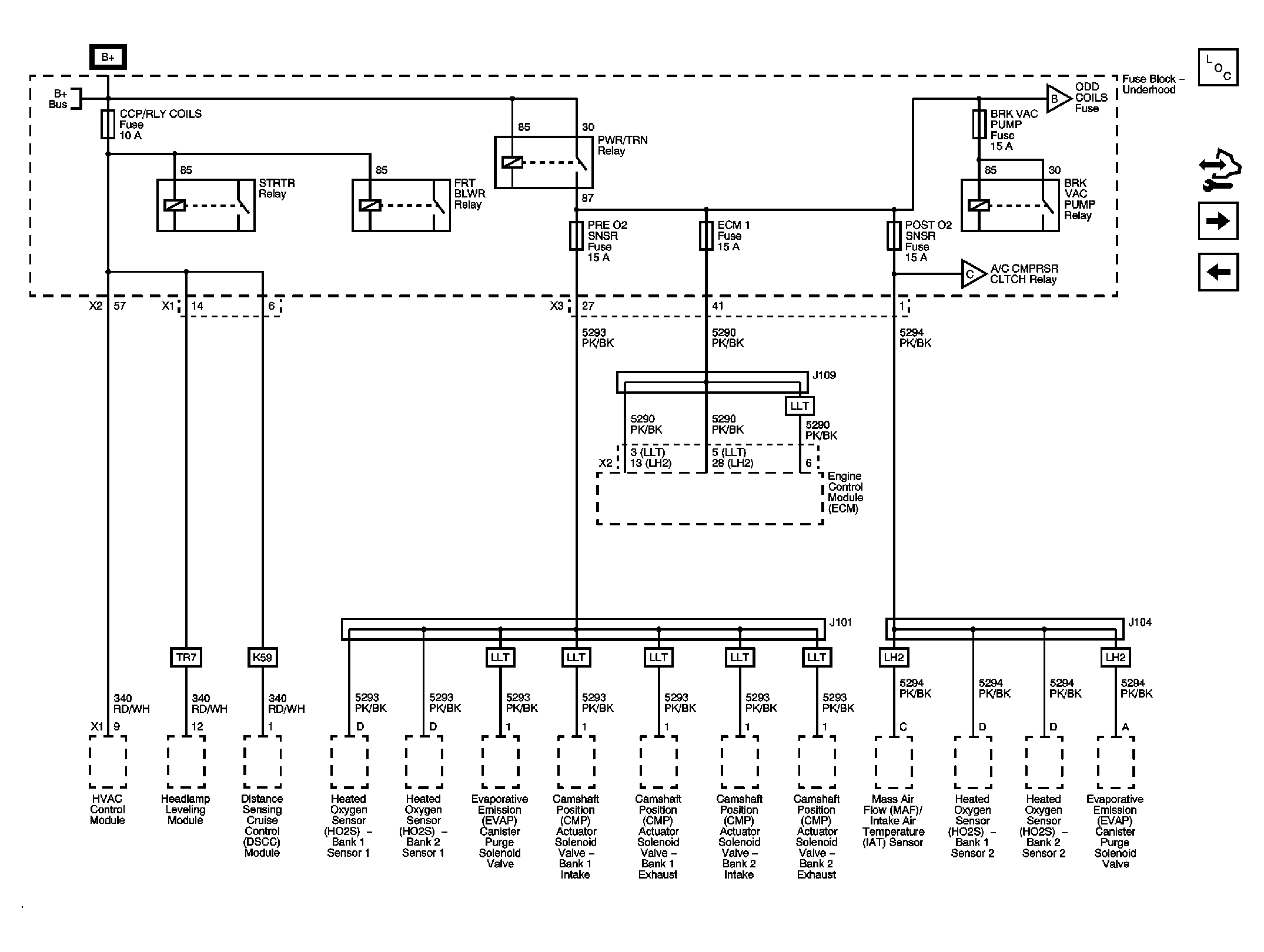

Fig 7: BLWR, BRK VAC PUMP, CCP/RLY/COILS, ECM 1, POST O2 SNSR, PRE O2 SNSR, and STRTR Fuses

Courtesy of GENERAL MOTORS CORP.

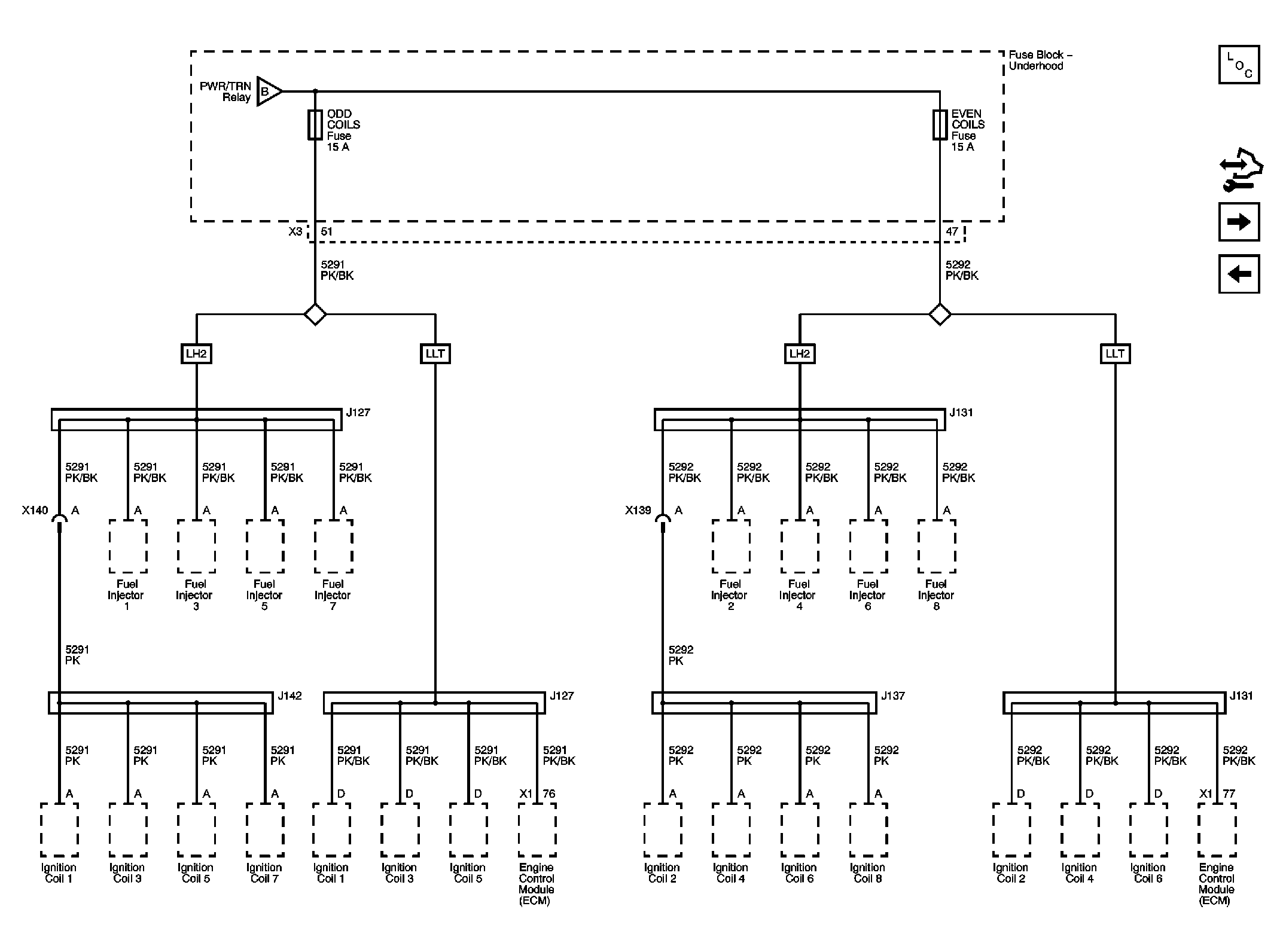

Fig 8: EVEN COILS and ODD COILS Fuses

Courtesy of GENERAL MOTORS CORP.

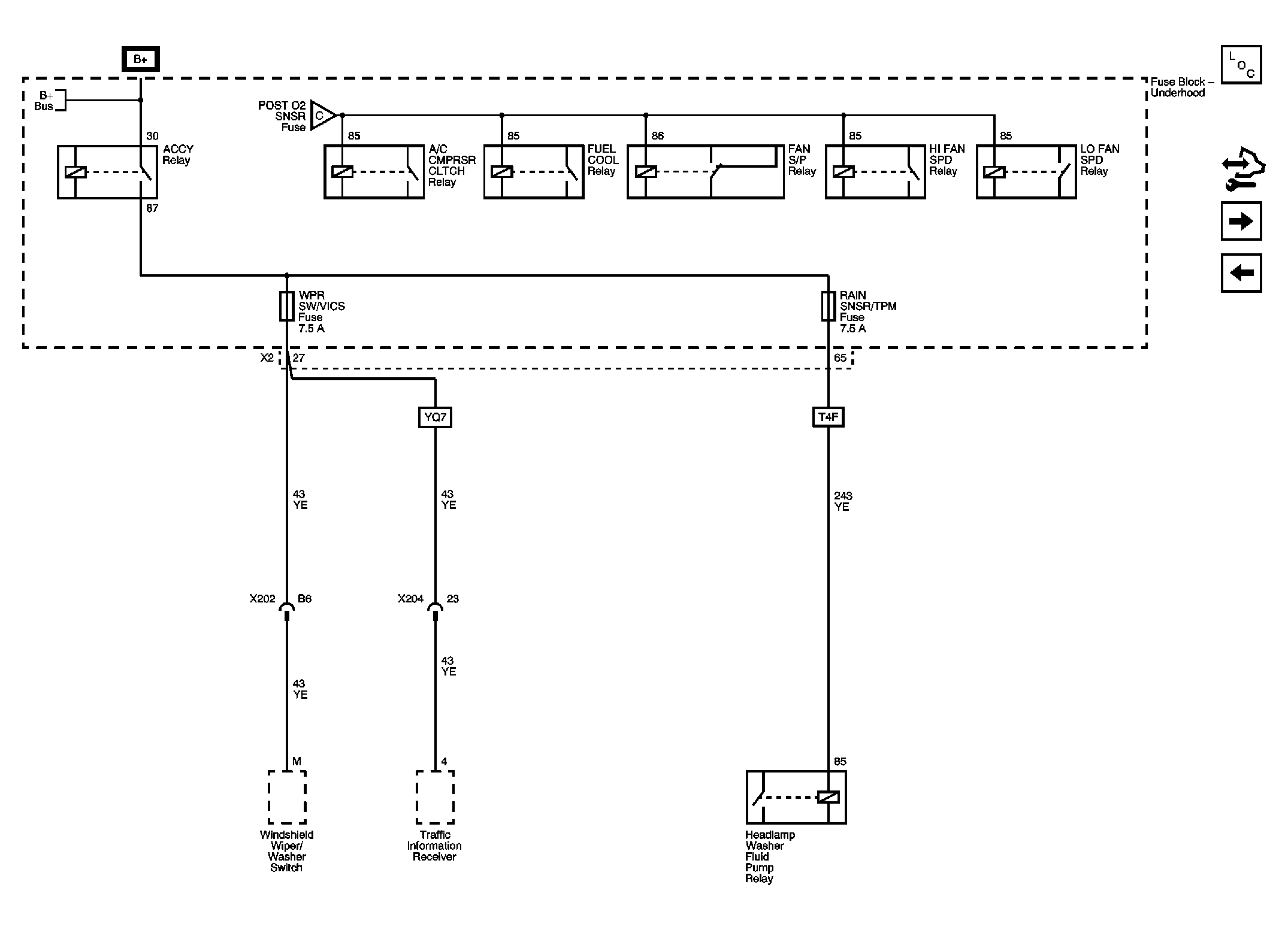

Fig 9: A/C CLTCH, FAN 1, FAN 2, FUEL COOL, RAIN SNSR/TPM, and WPR SW/VICS Fuses

Courtesy of GENERAL MOTORS CORP.

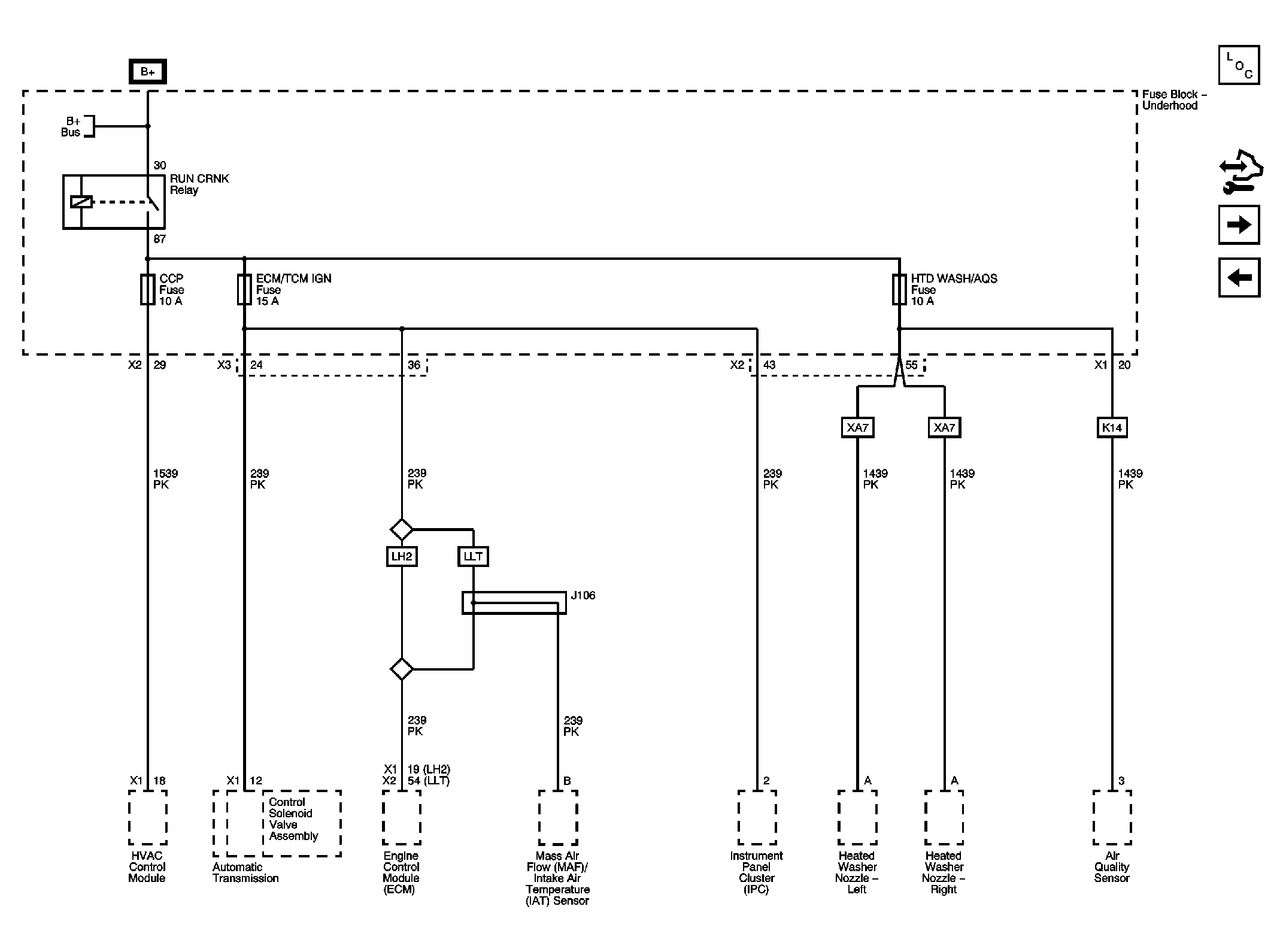

Fig 10: CCP, ECM/TCM IGN, and HTD WASH/AQS Fuses

Courtesy of GENERAL MOTORS CORP.

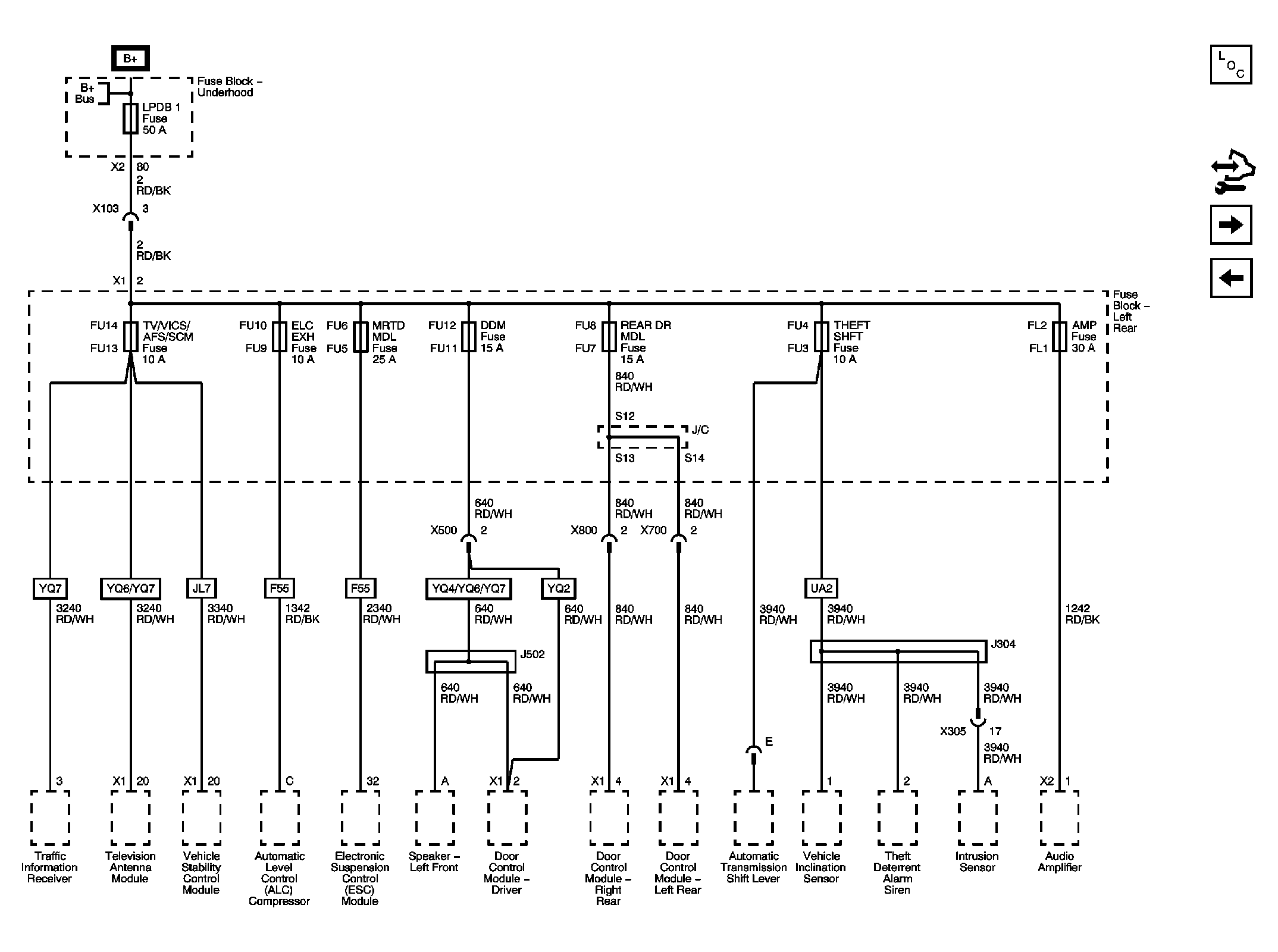

Fig 11: AMP, DDM, ELC EXH, INCLR PUMP, MRTD MDL, REAR DR MDL, THEFT SHFT, and TV/VICS/AFS/SCM Fuses

Courtesy of GENERAL MOTORS CORP.

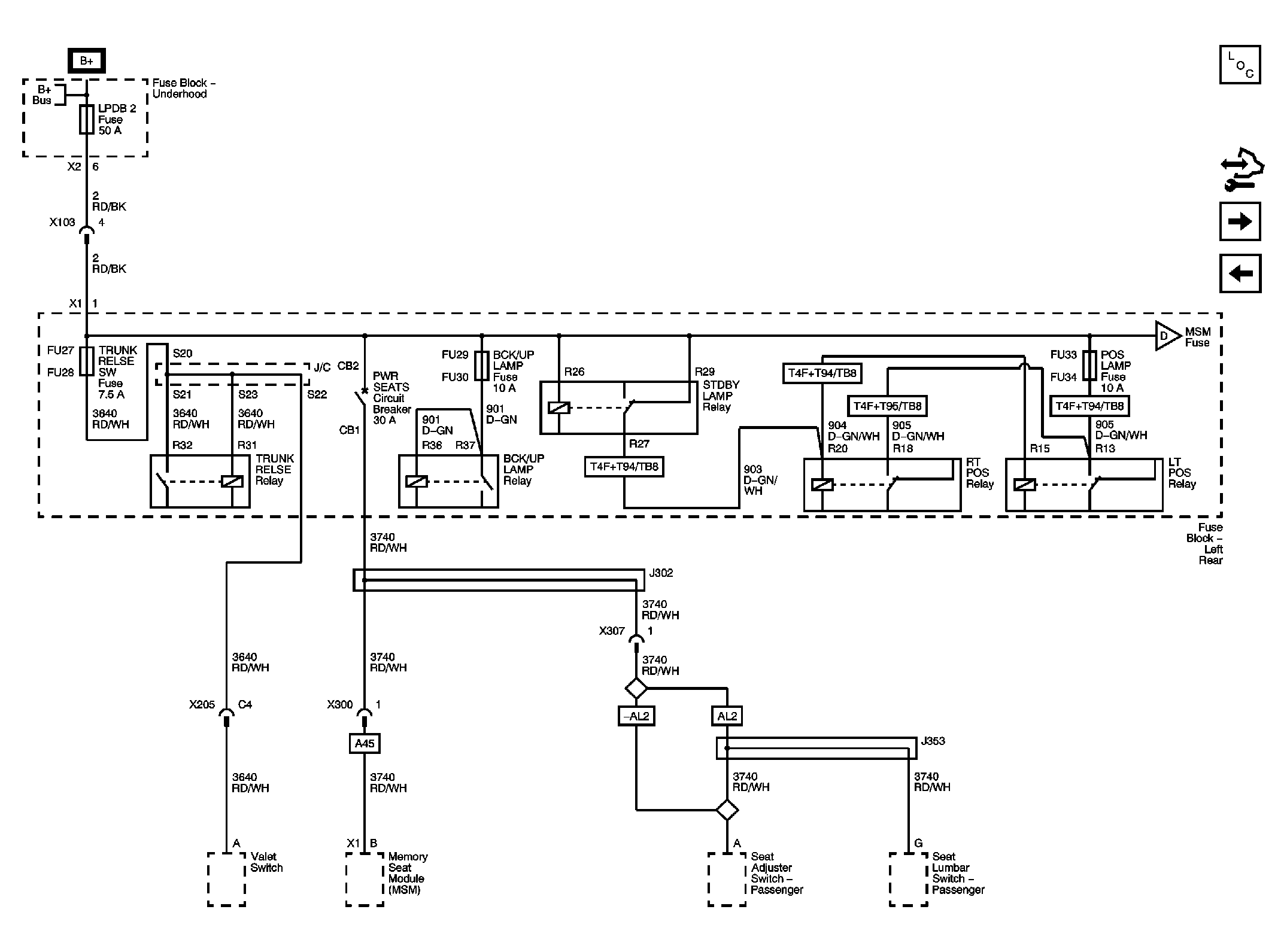

Fig 12: BCK/UP LAMP, POS LAMPS, and TRUNK RELSE Fuses, PWR SEATS Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

Fig 13: AIRBAG/BATT, MSM, and REAR SHLF SPKR Fuses

Courtesy of GENERAL MOTORS CORP.

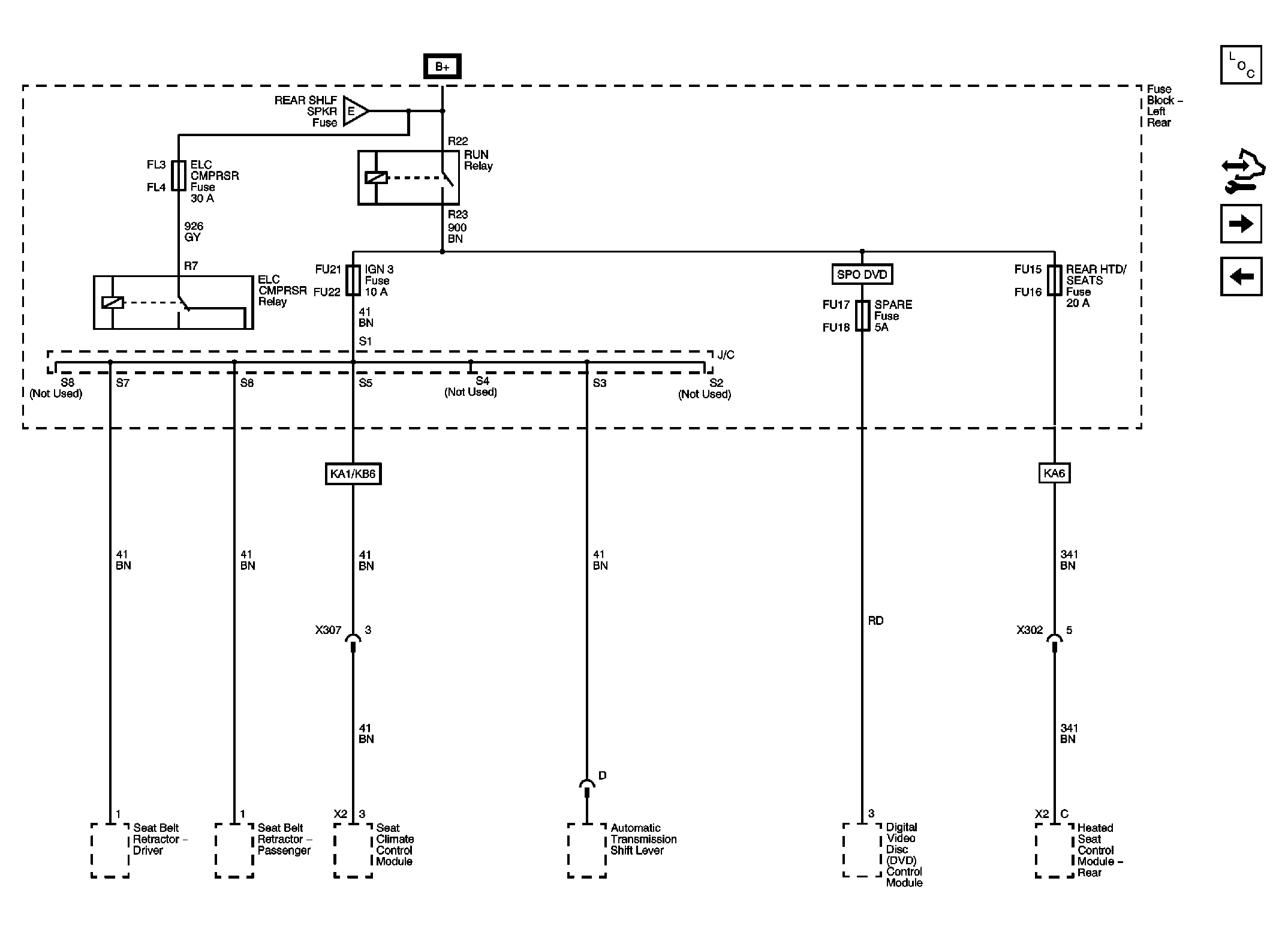

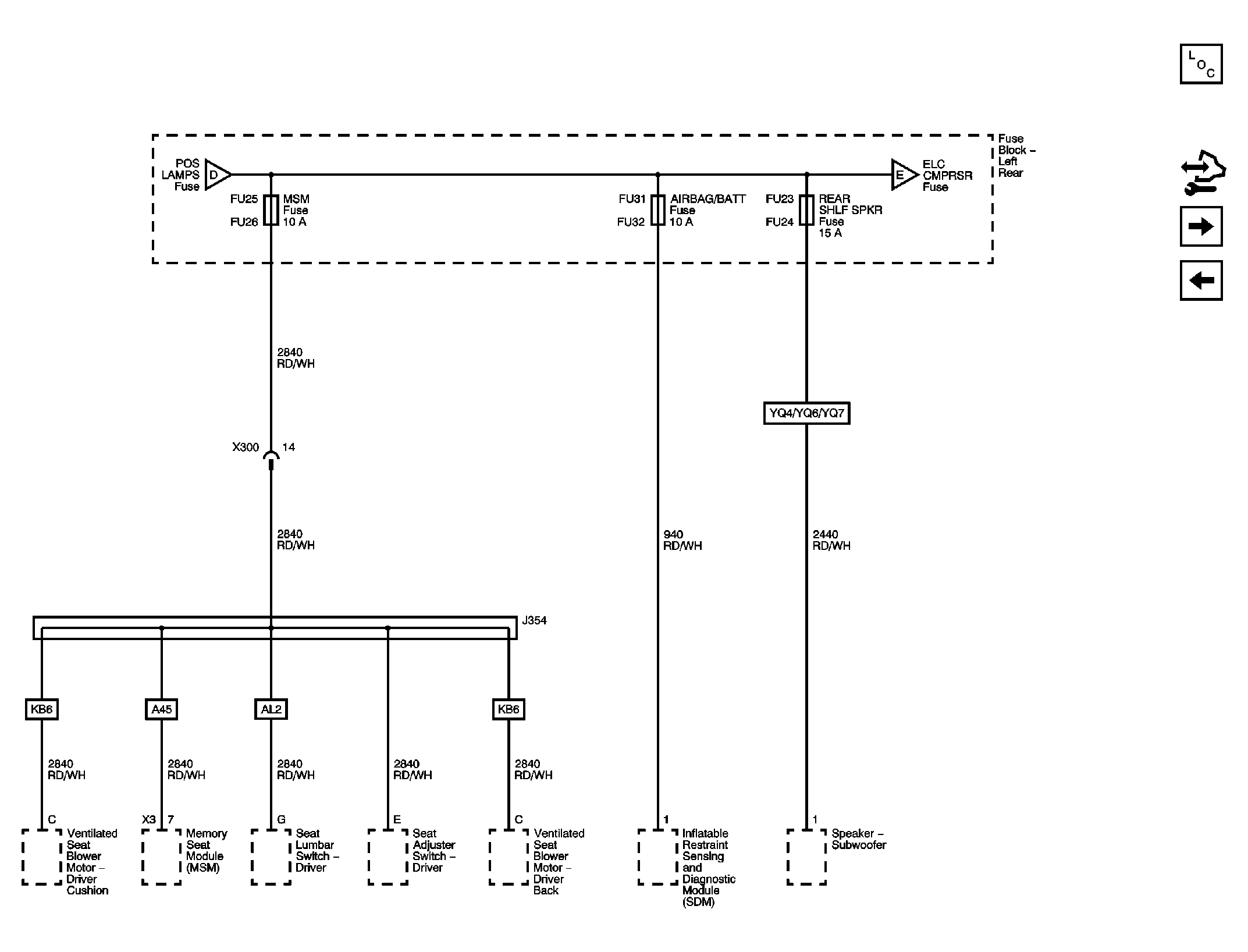

Fig 14: ELC CMPRSR, IGN 3, and REAR HTD/SEATS Fuses

Courtesy of GENERAL MOTORS CORP.

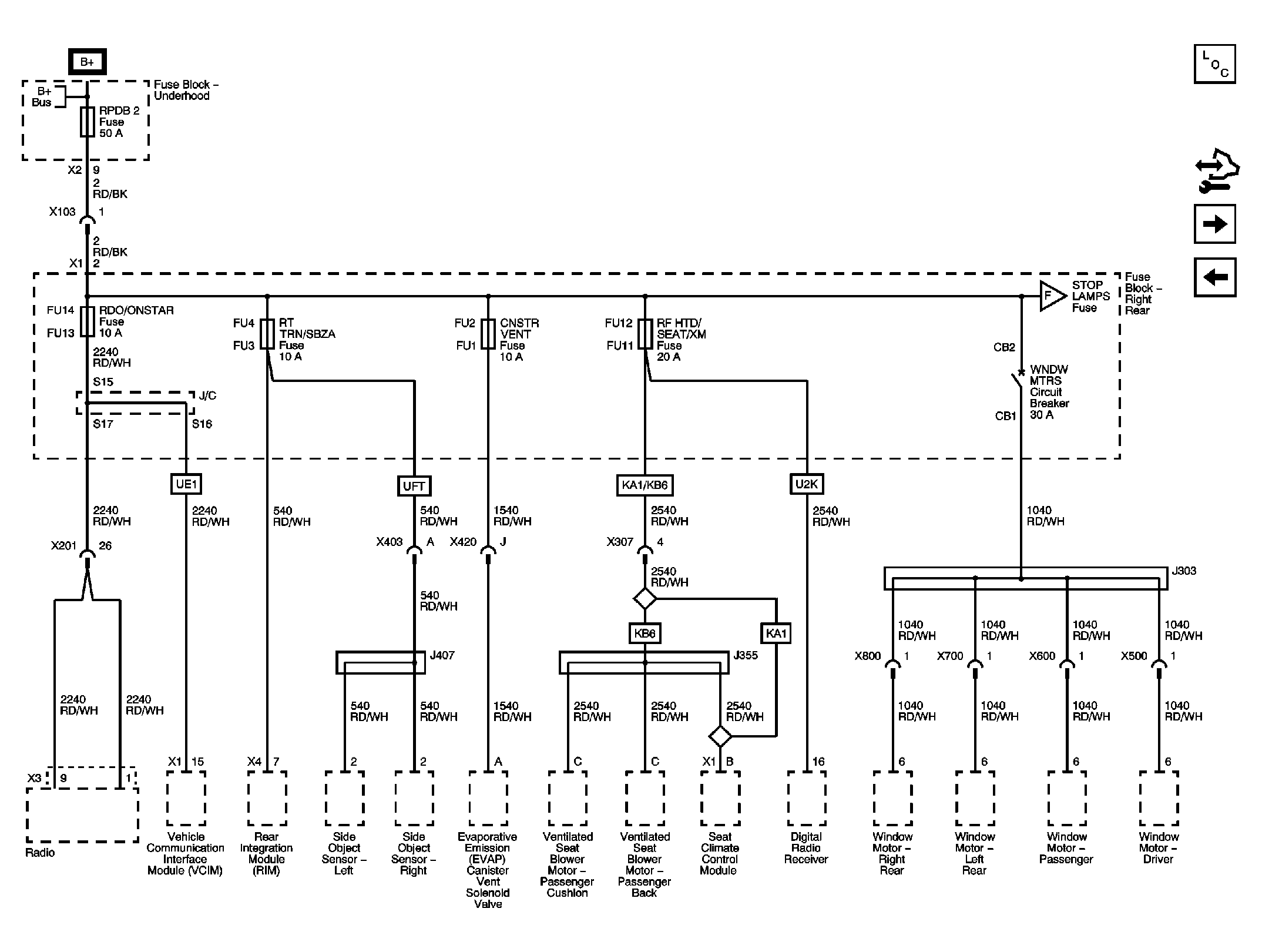

Fig 15: CNSTR VENT, RDO/ONSTAR, RF HTD/SEAT/XM, and RT TRN/SBZA Fuses, WNDW MTRS Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

Fig 16: REAR DEFOG, REAR/FOG, S/ROOF, and STOP LAMPS Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 17: FRT PDM, LT TRN/LDW, and RIM Fuses

Courtesy of GENERAL MOTORS CORP.

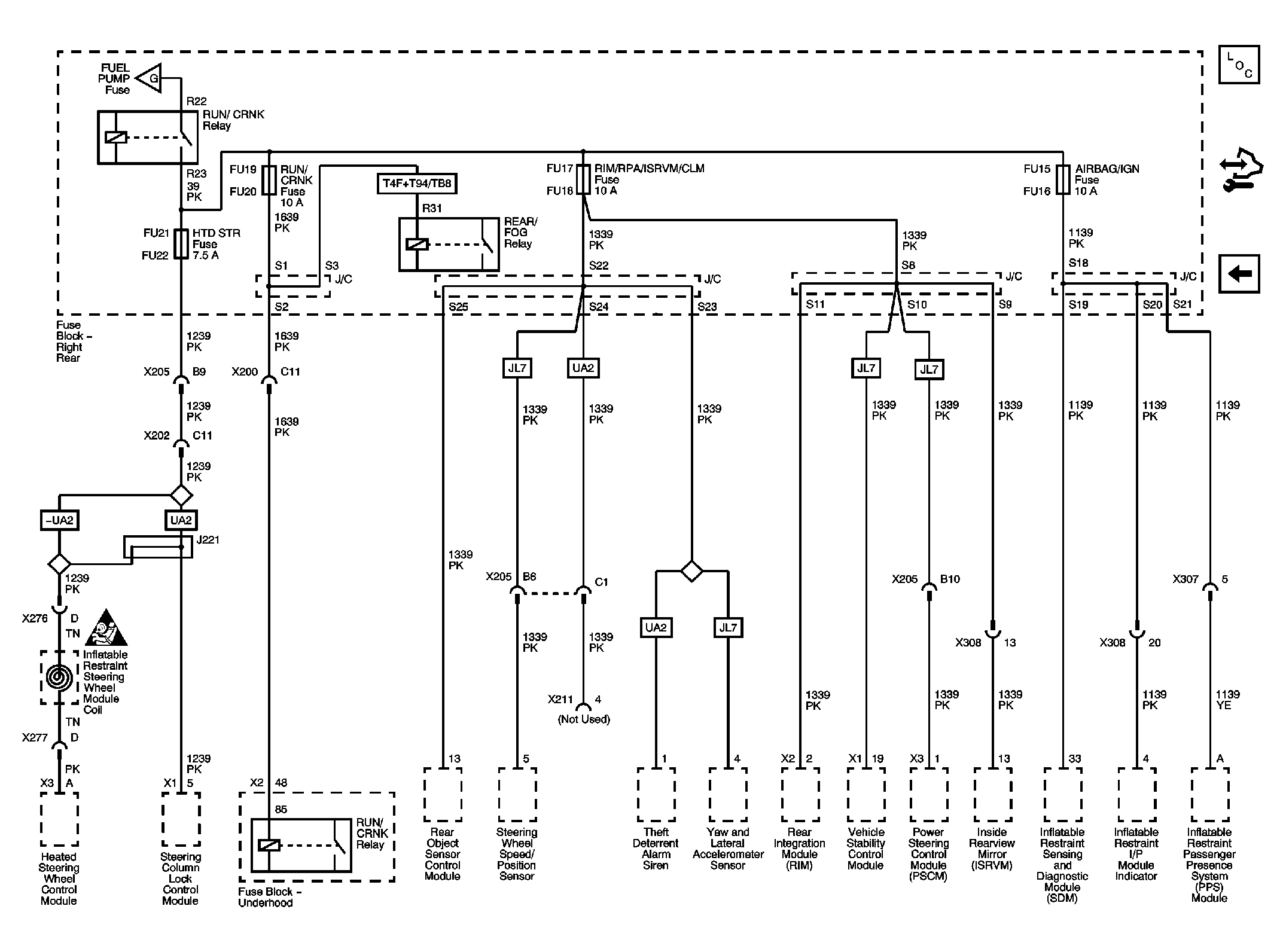

Fig 18: AIRBAG/IGN, DIFF PUMP, FUEL PUMP, HTD STR, INT LAMP, RIM/RPA/ISRVM/CLM, and RUN/CRNK Fuses

Courtesy of GENERAL MOTORS CORP.
