Harness Routing Views

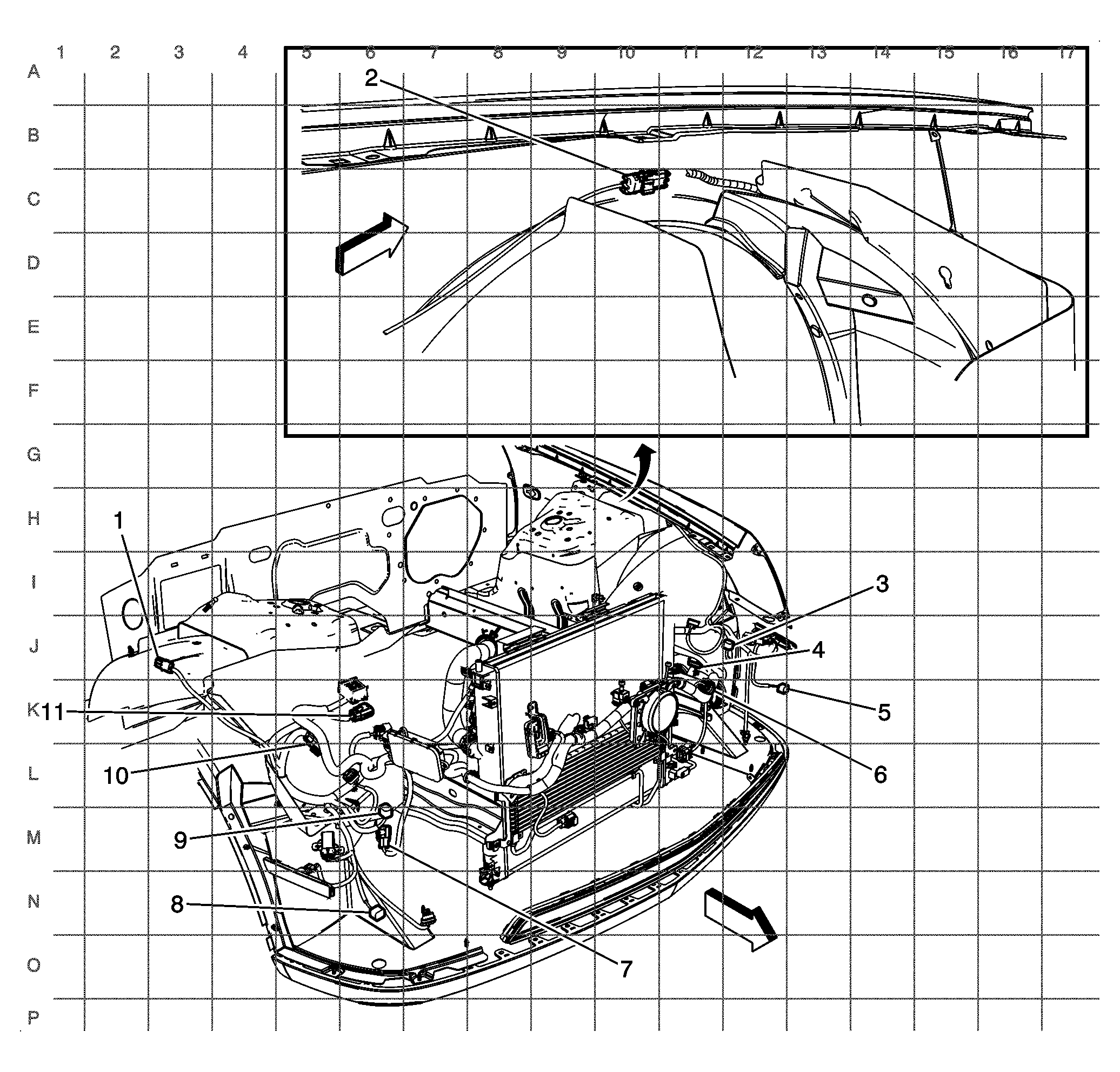

Fig 1: Forward Lamp Harness Routing - Connectors
GM2350617Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X108 (TT7 or TT8)
2 X107 (TT7 or TT8)
3 X120
4 X116 (LH2)
5 X122
6 JX100 (K59 or TT6)
7 X113 (LH2)
8 X123
9 X121
10 X112 (TR7 without F55 or UH3)
11 X111 (K59 or TT6)

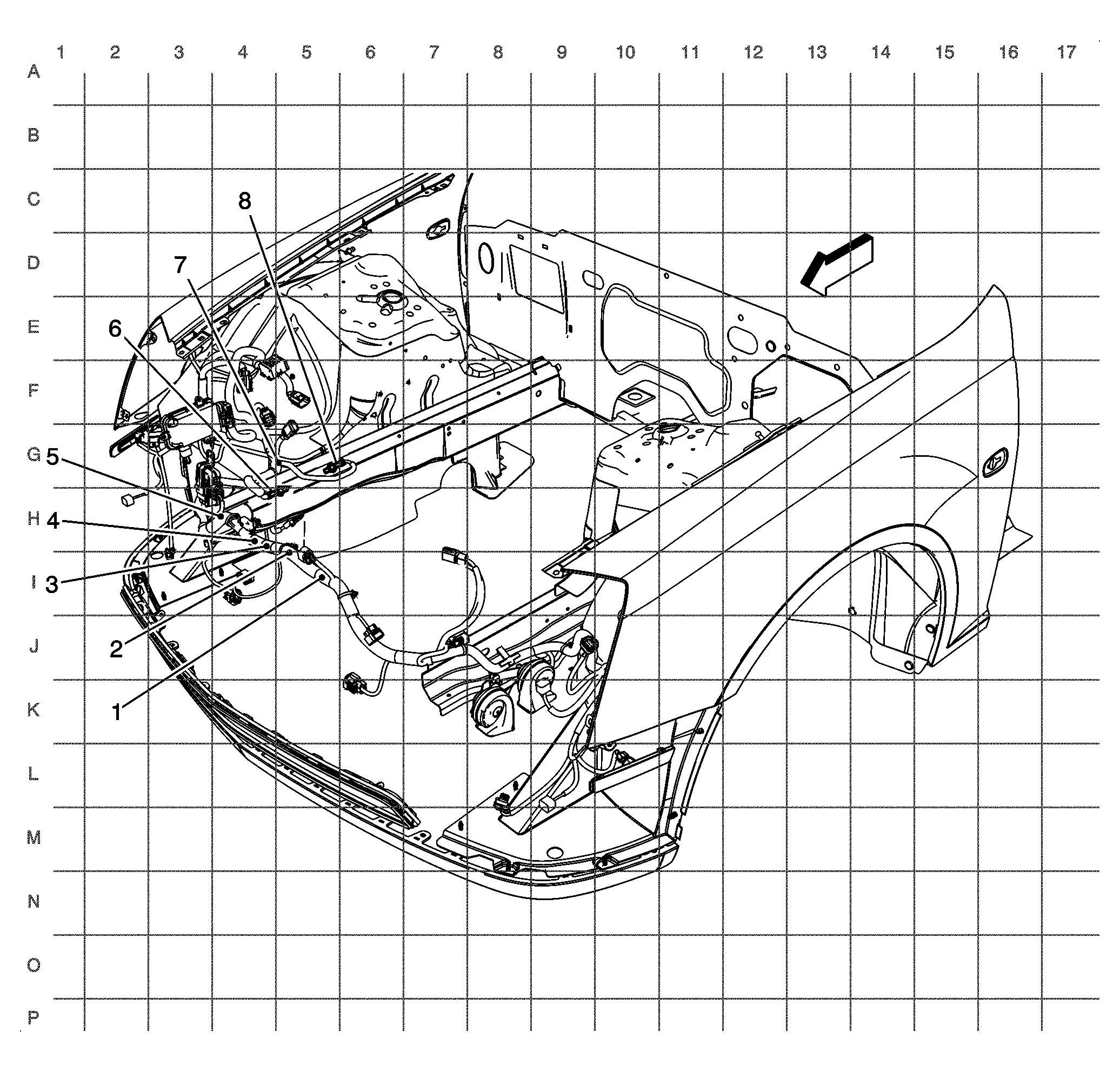

Fig 2: Forward Lamp Harness Routing - Splices and Grounds
GM1970127Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J106
2 J114
3 J110 (UH3)
4 J111 (UH3)
5 J107
6 G104
7 J116 (K59 or TT7 or TT8)
8 G110

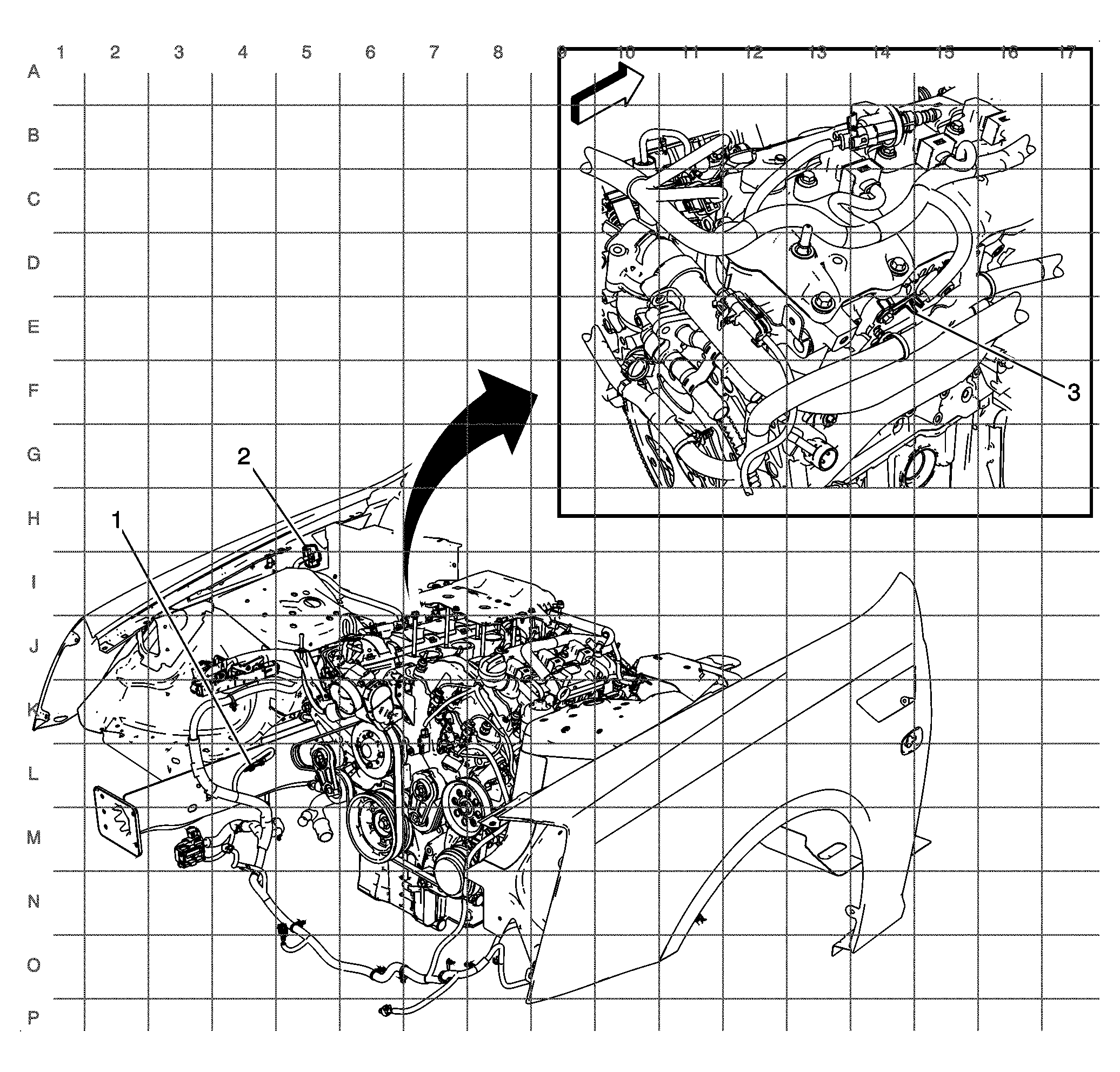

Fig 3: Engine Harness Routing - Front (LLT)
GM1972228Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 X101
3 G109

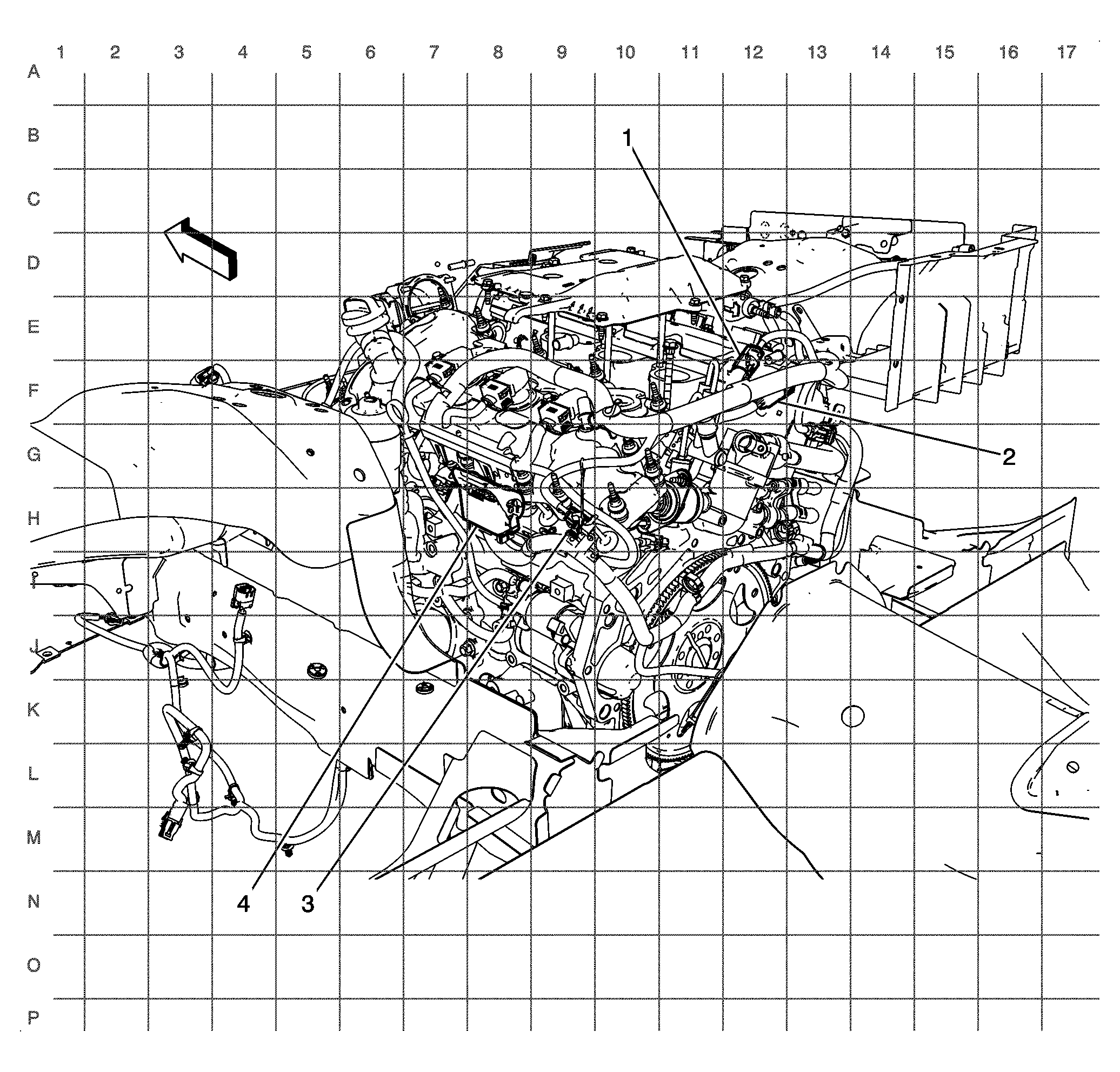

Fig 4: Engine Harness Routing - Left Rear (LLT)
GM1972223Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X160
2 X161
3 G112
4 X102

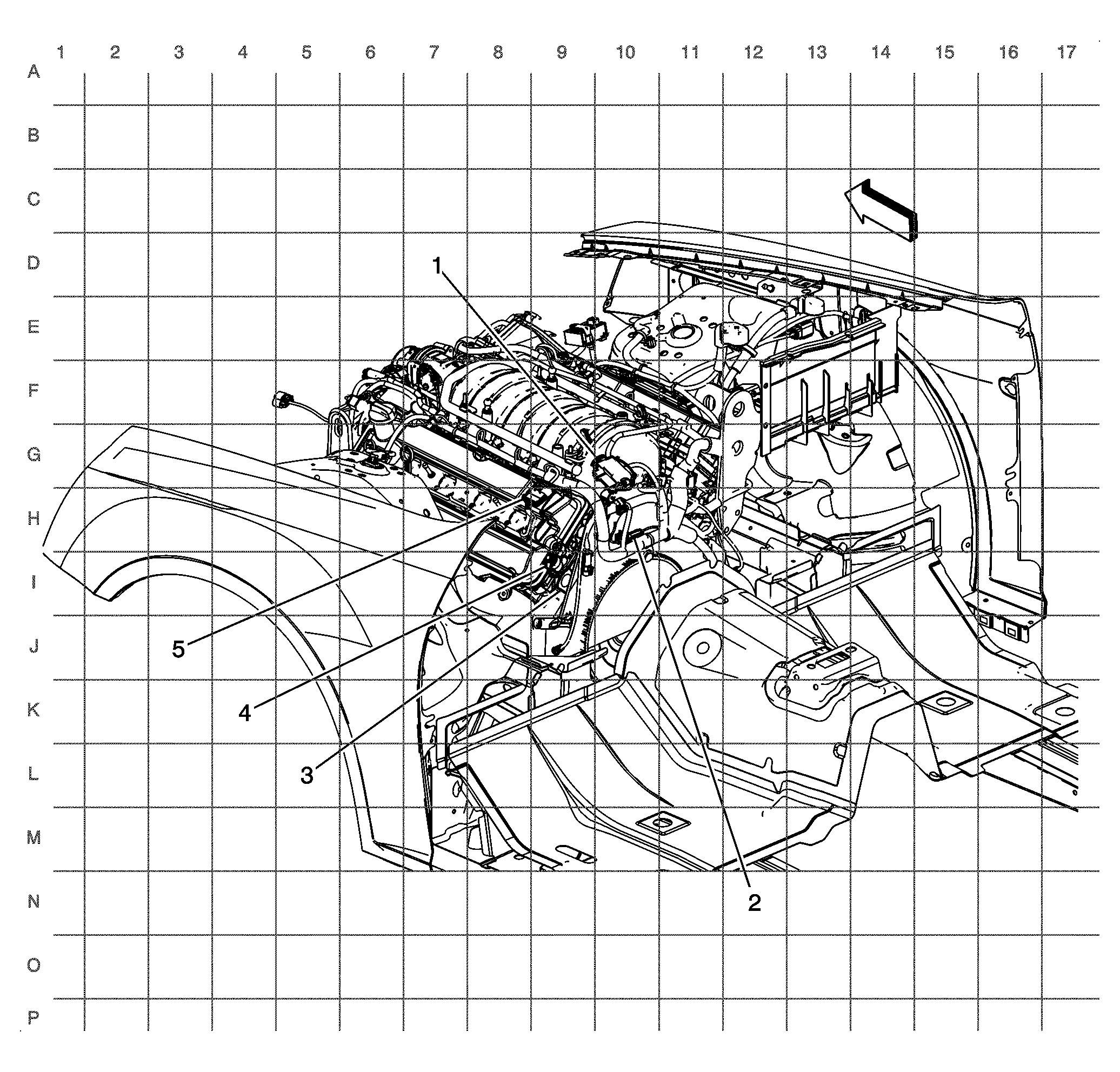

Fig 5: Engine Harness Routing - Left Rear (LH2)
GM1970132Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X102
2 X105
3 Valve Cover Ground to Ground Strap
4 Valve Cover Ground
5 X140

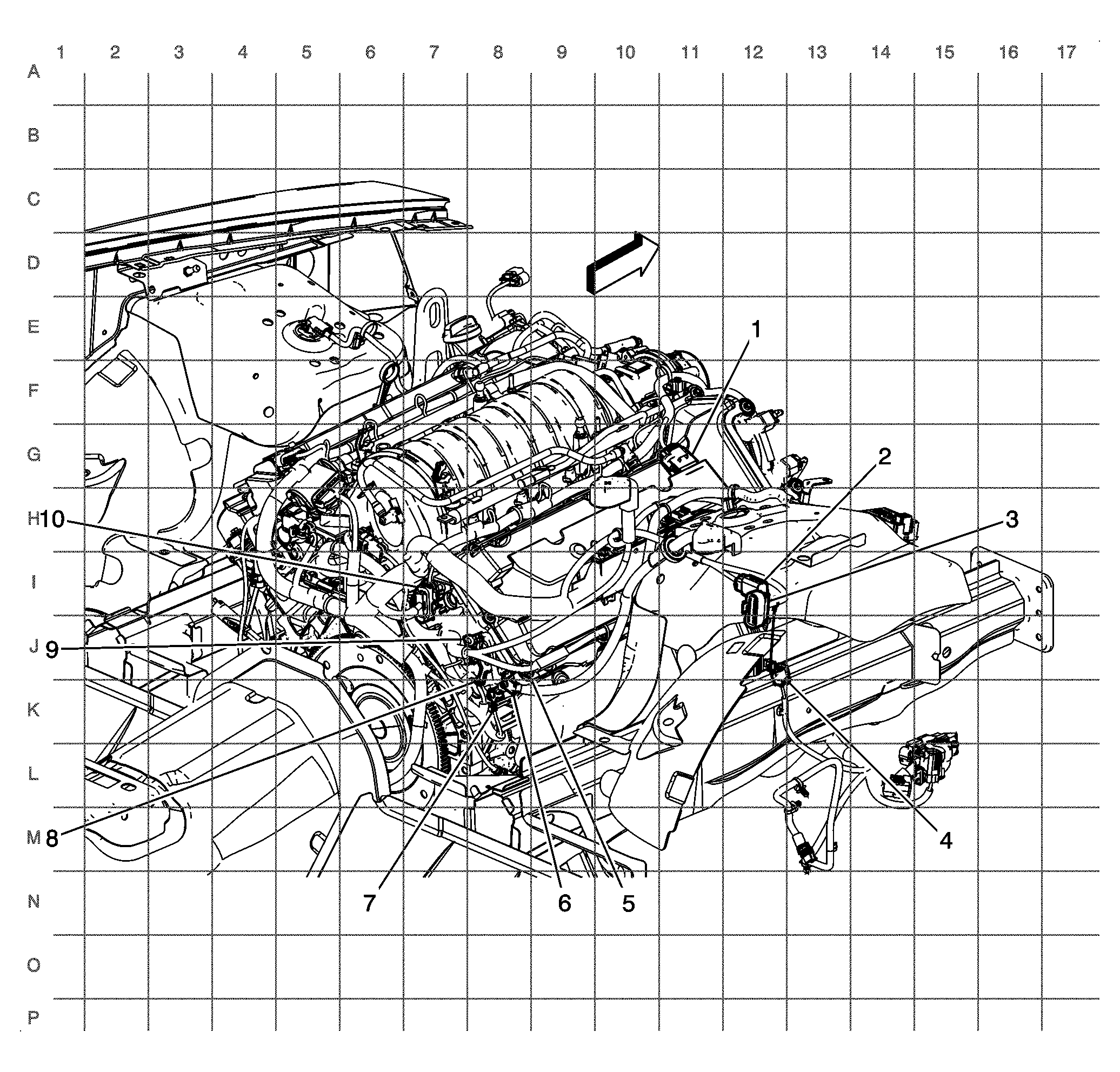

Fig 6: Engine Harness Routing - Right Rear (LH2)
GM1970182Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X139
2 X100
3 X101
4 X113
5 G107
6 G106
7 Valve Cover Ground
8 G100
9 G107 Ground Strap
10 104

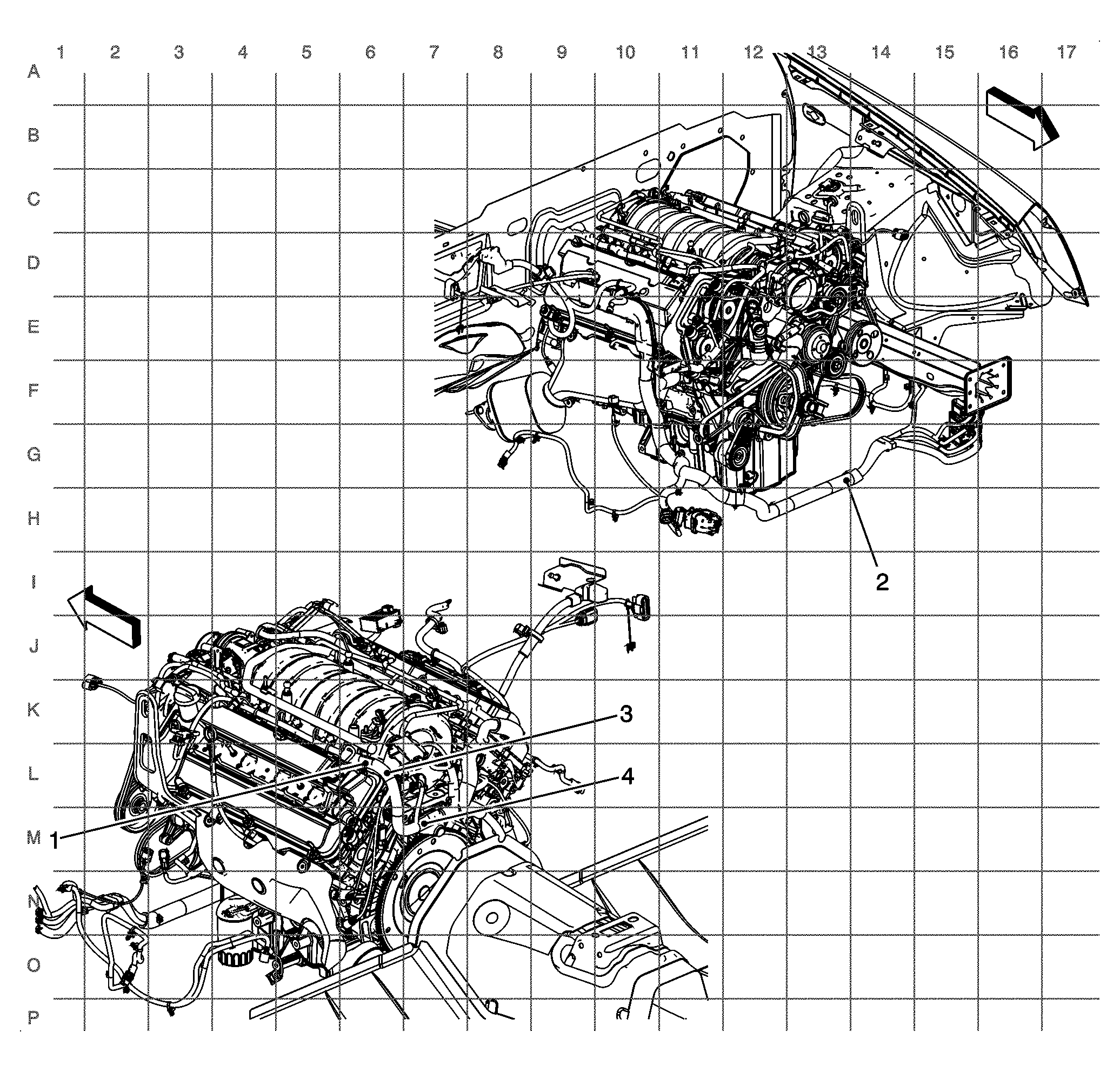

Fig 7: Engine Harness Routing - Splices (LH2)
GM1970189Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J103
2 J105
3 J115
4 J104

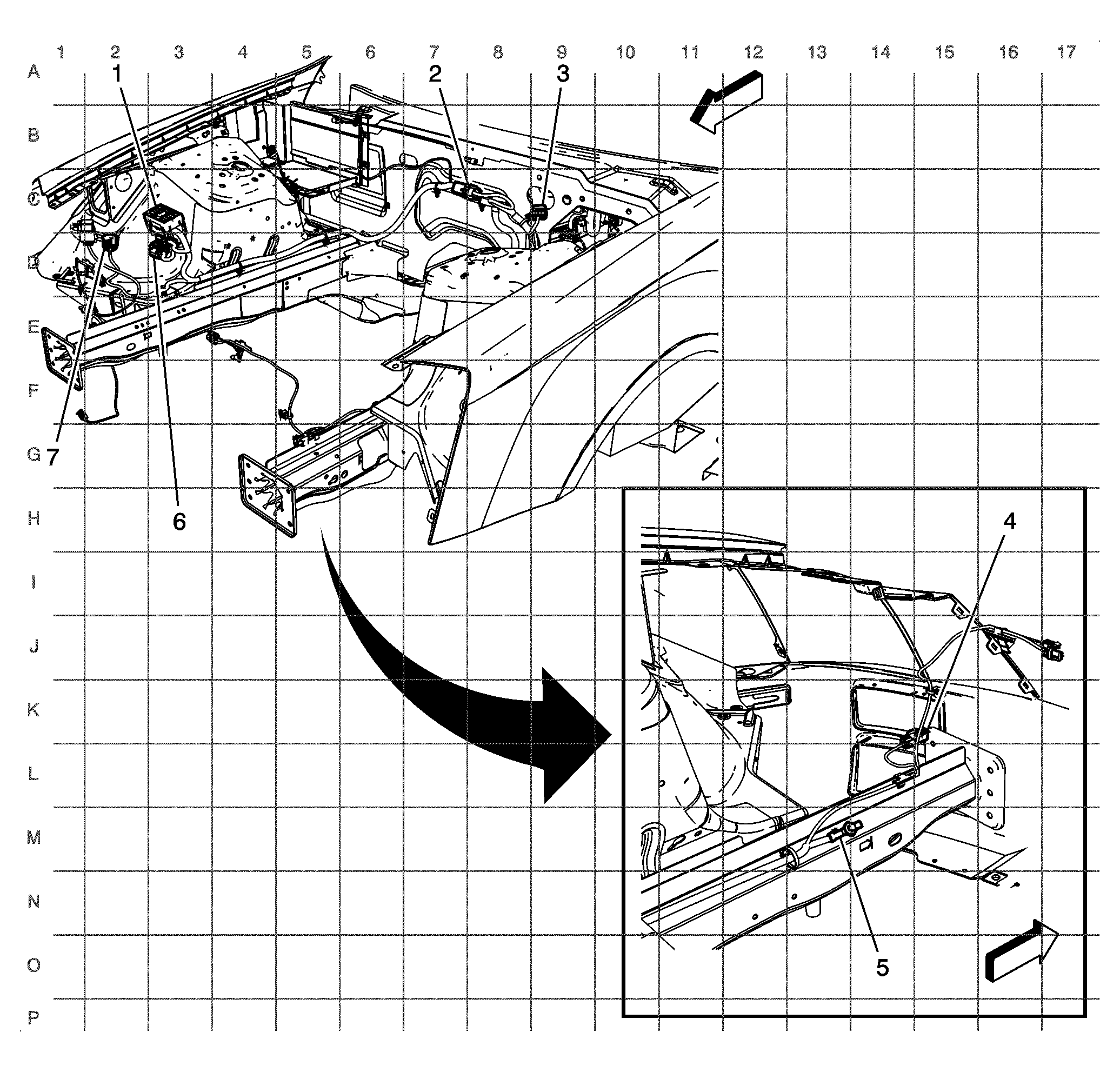

Fig 8: Instrument Panel Harness Routing - Engine Compartment
GM1970194Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X103
2 X102
3 JX201
4 X116
5 G101
6 X111
7 X112

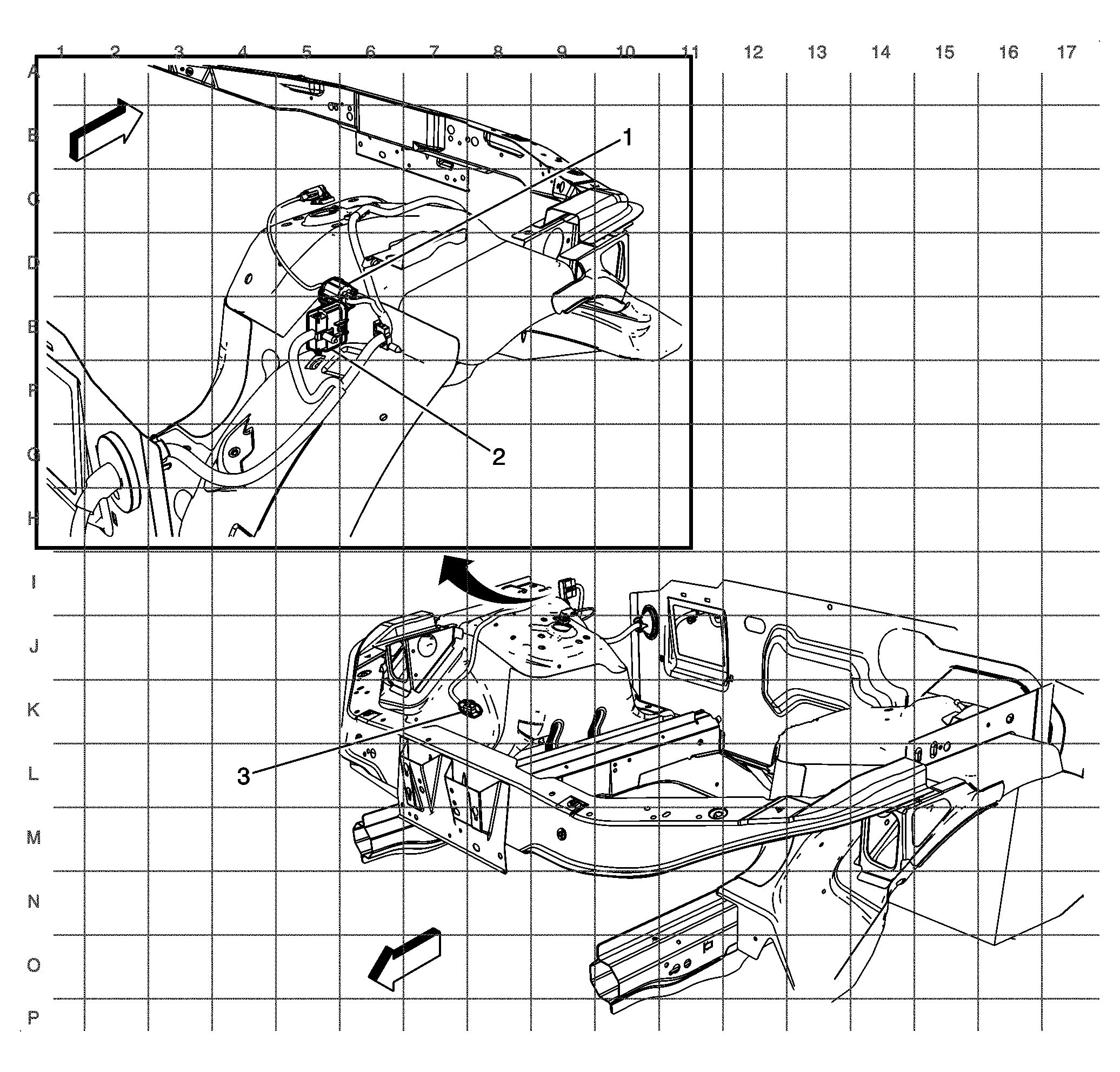

Fig 9: Body Harness Routing - Engine Compartment
GM1970204Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X100
2 X101
3 X203

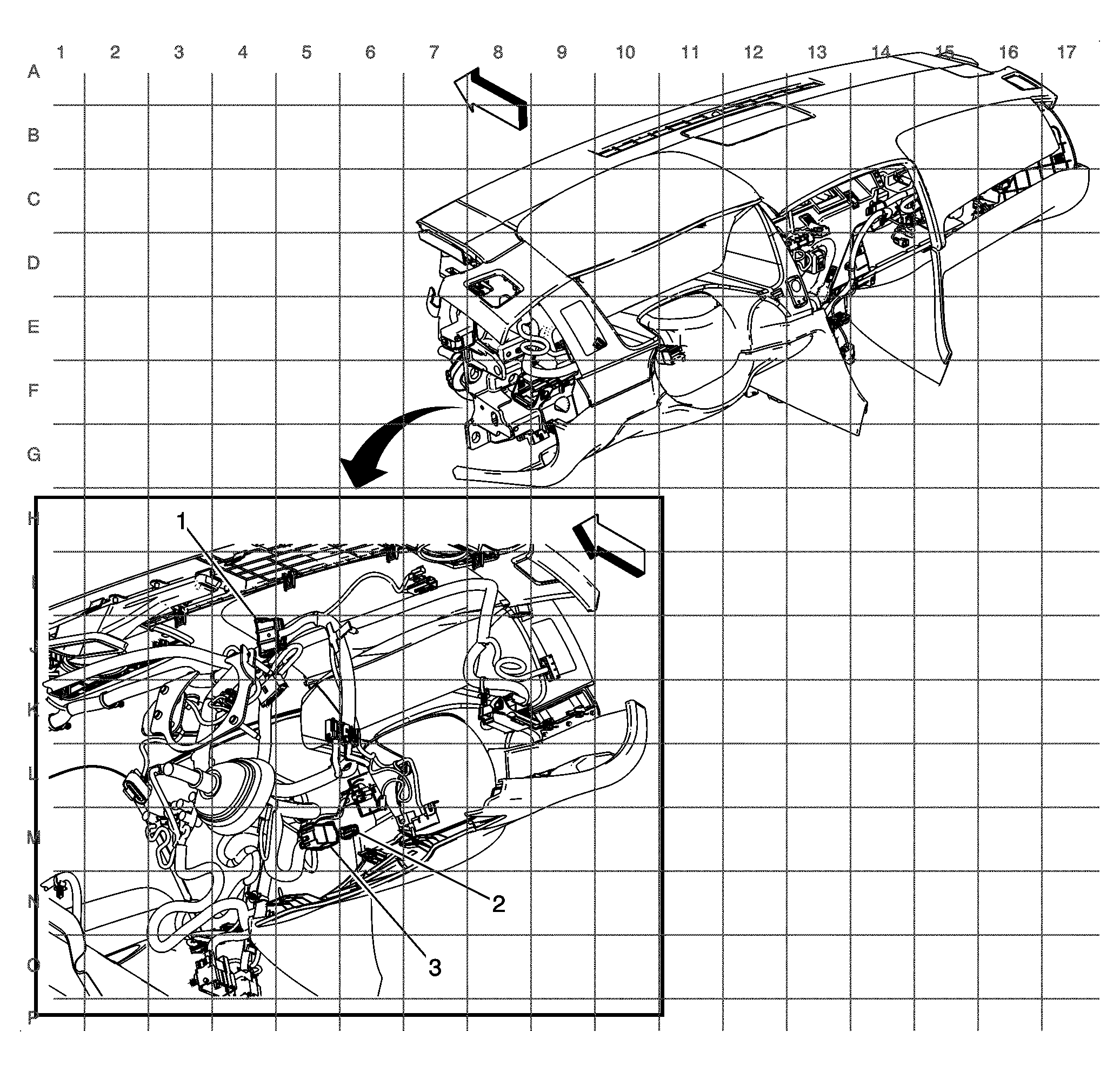

Fig 10: Instrument Panel Harness Routing - Left Side of Instrument Panel
GM1970211Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 JX201
2 X218
3 X202

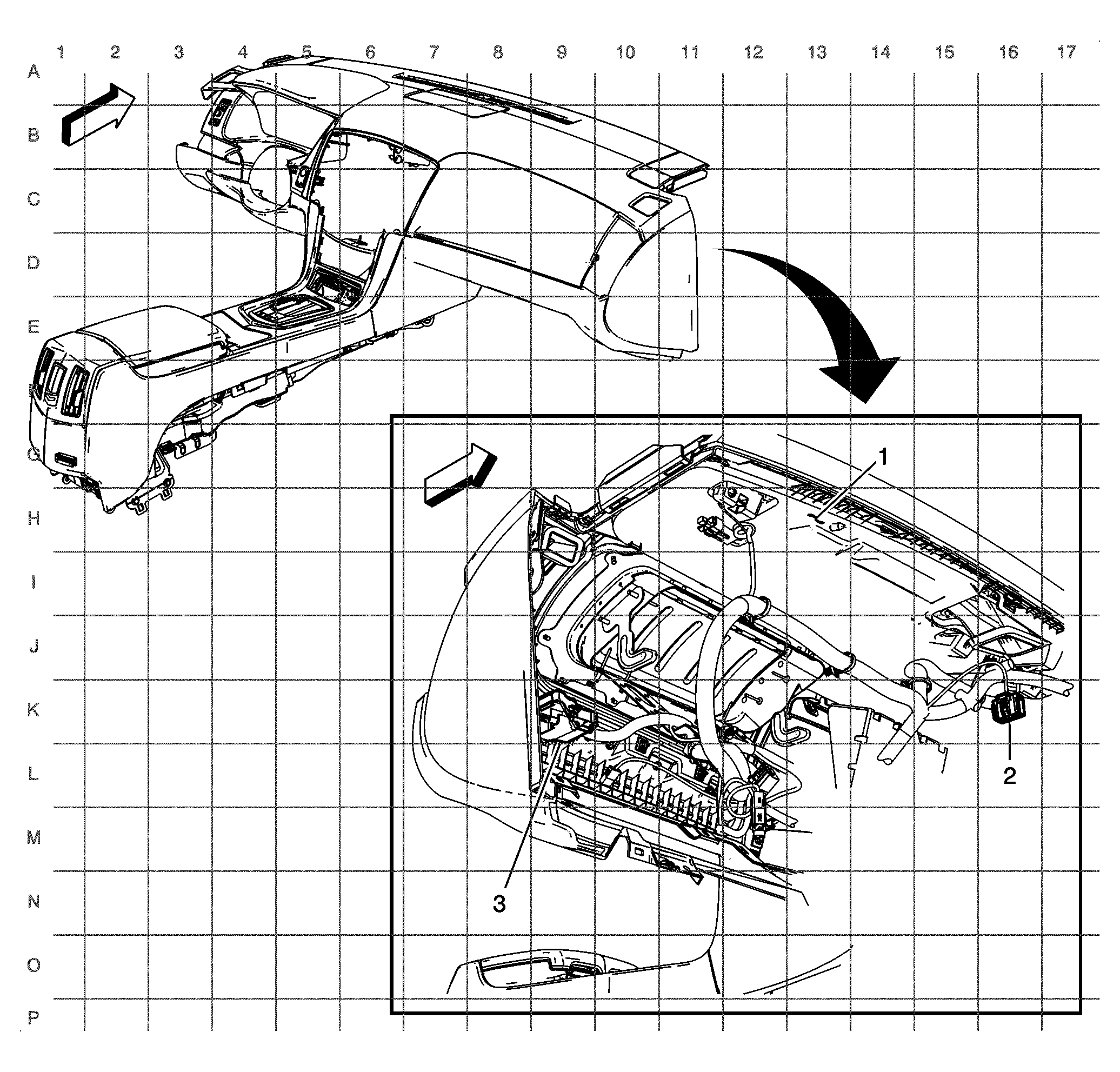

Fig 11: Instrument Panel Harness Routing - Right Side of Instrument Panel
GM1970215Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X209
2 X214
3 X200

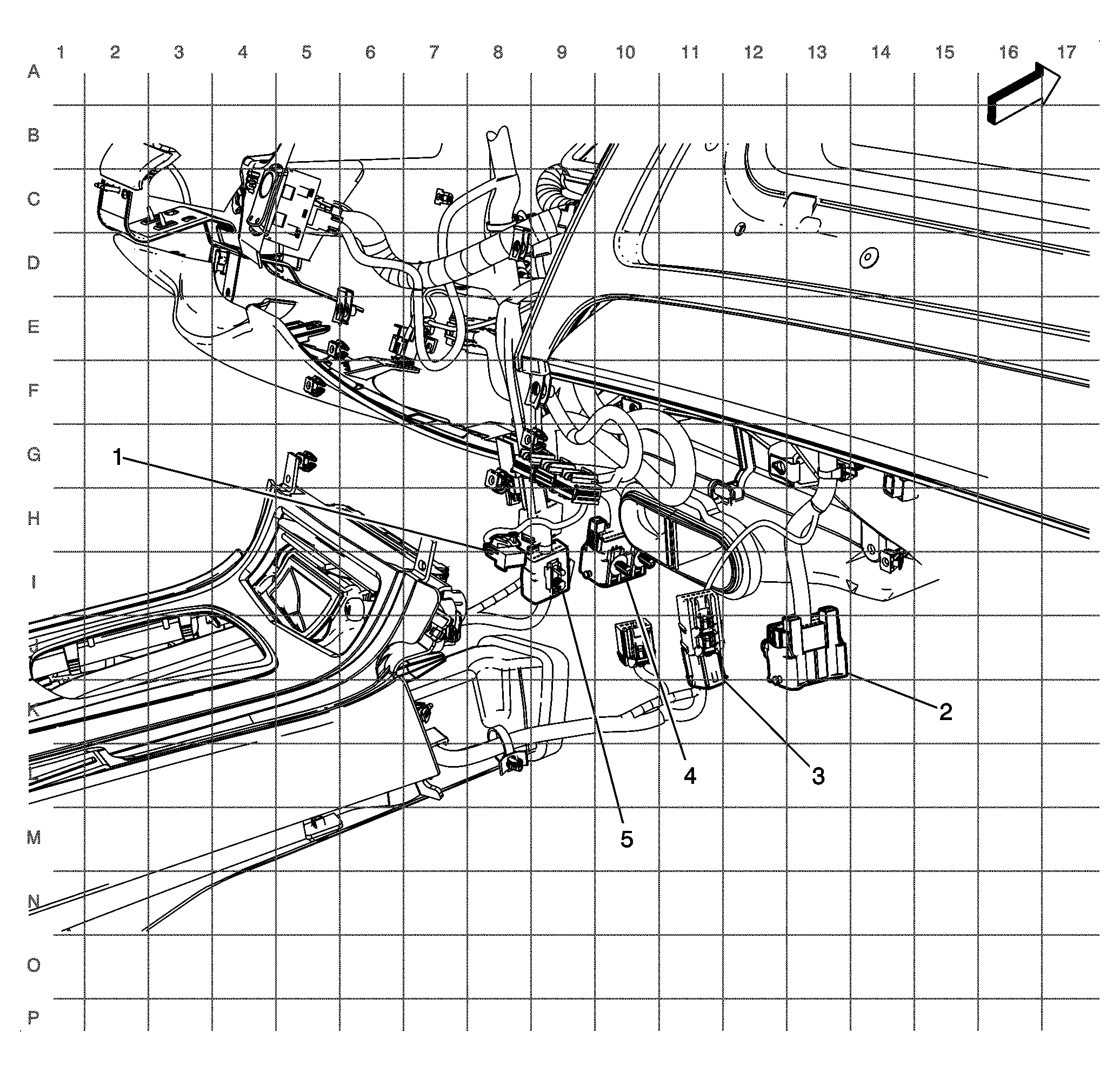

Fig 12: Instrument Panel Harness Routing - Below Center Console
GM1970219Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X215
2 X201
3 Fuse Block - Steering Column
4 X204
5 X304

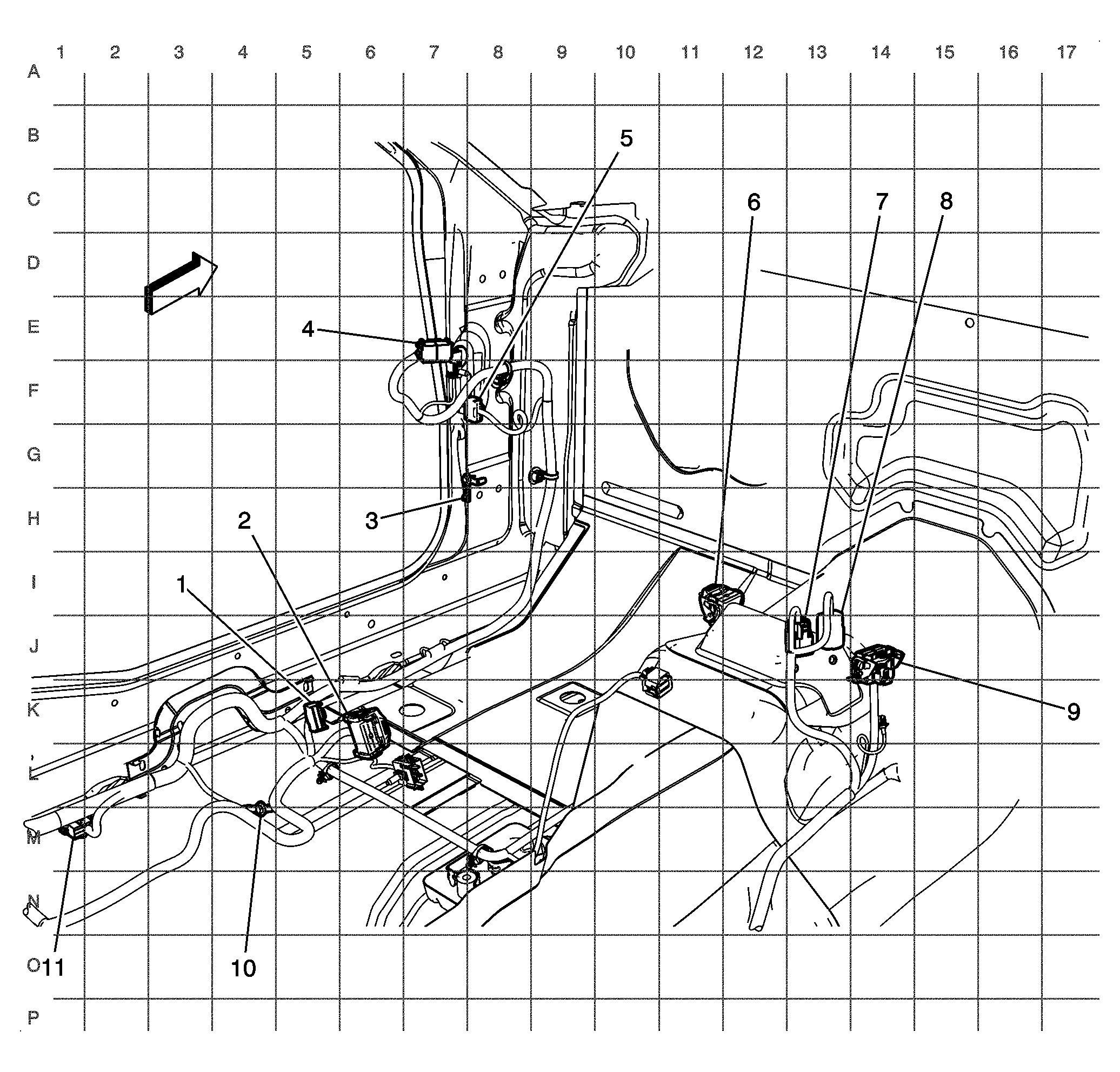

Fig 13: Body Harness Routing - Left Front Passenger Compartment
GM1970225Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X301
2 X300
3 G200
4 X205
5 X500
6 X204
7 X213
8 X212
9 X201
10 G307
11 JX300

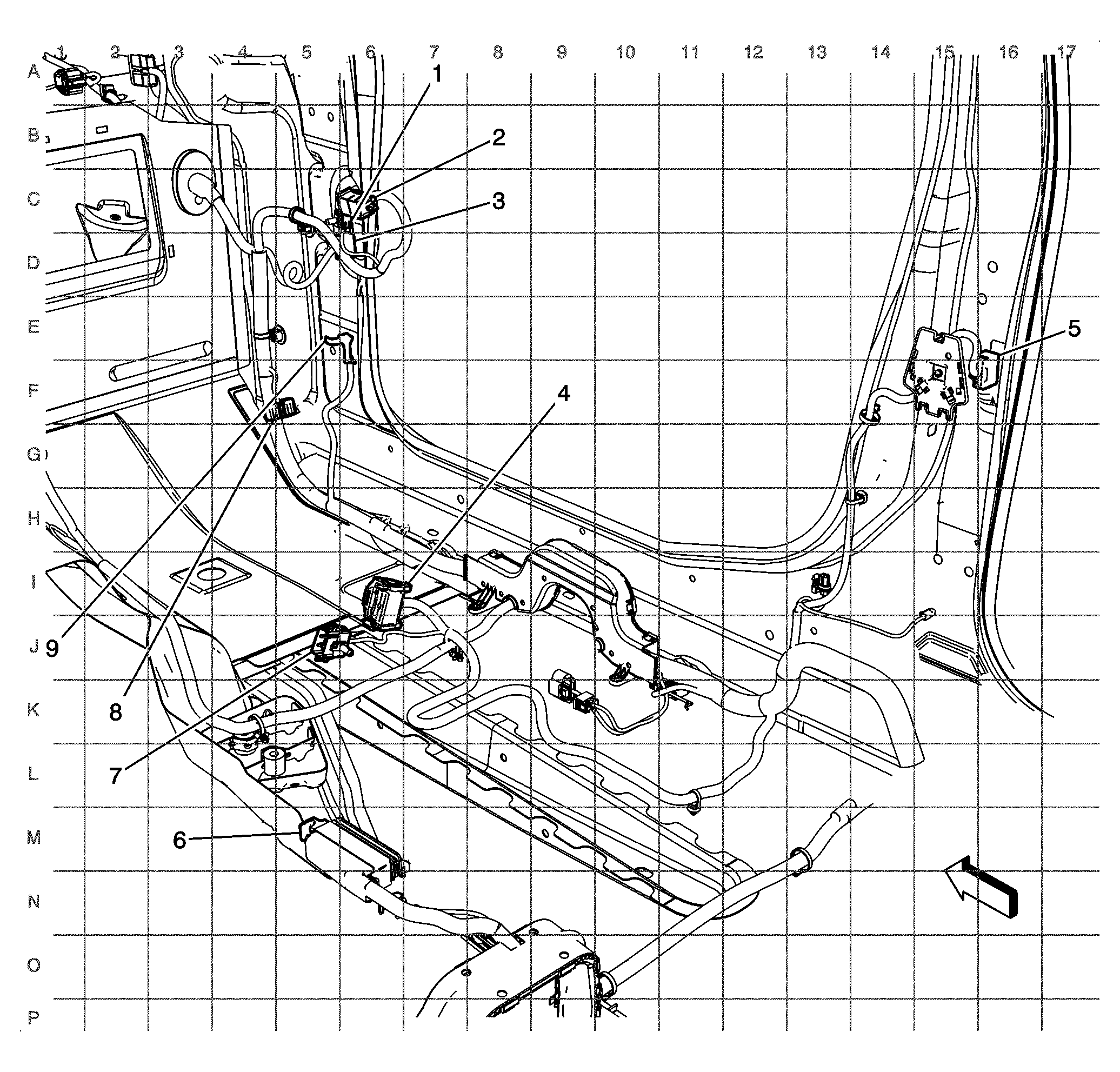

Fig 14: Body Harness Routing - Right Front Passenger Compartment
GM1970229Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X217
2 X200
3 X600
4 X307
5 X800
6 G306
7 X318
8 JX303
9 G201

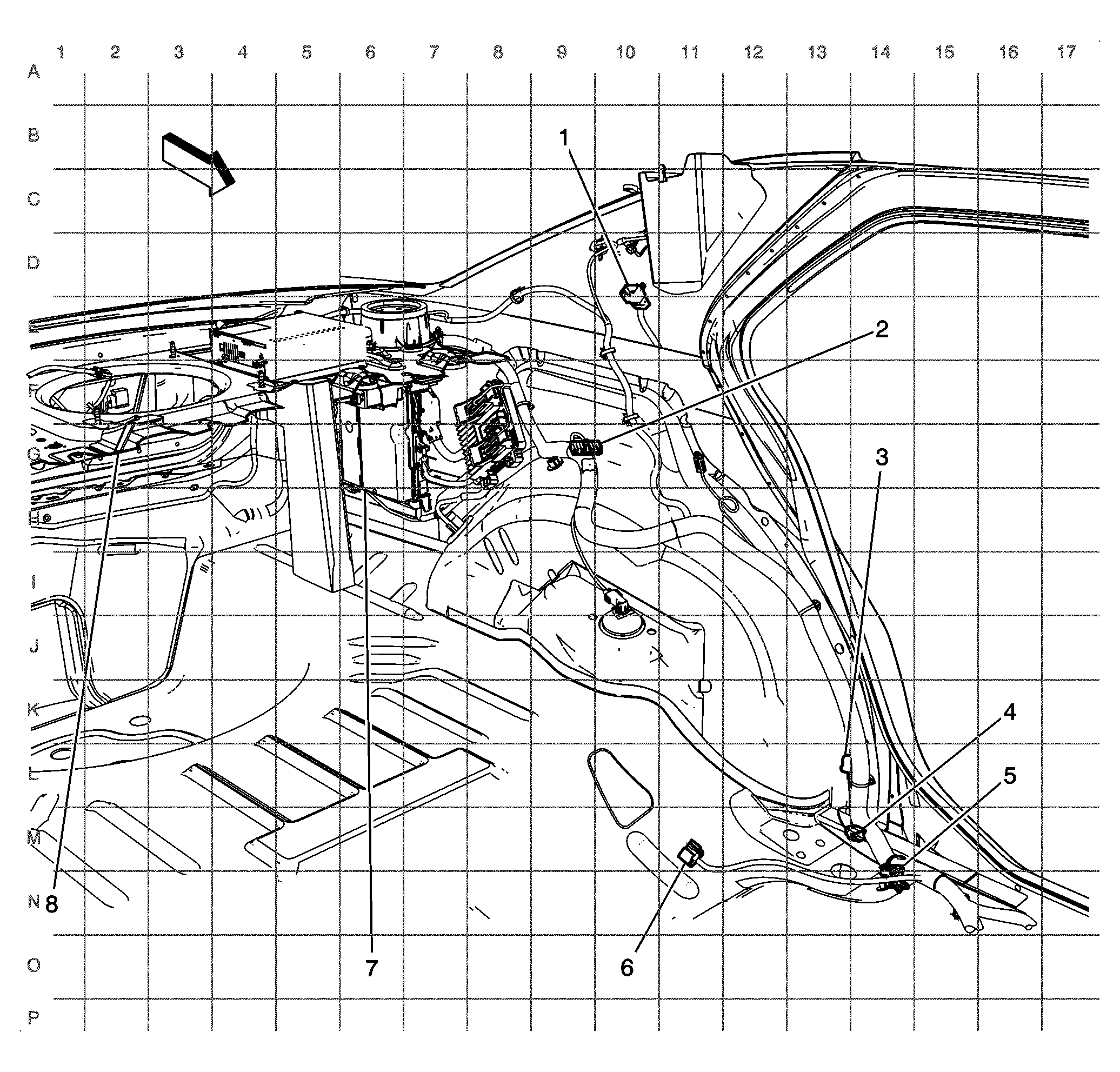

Fig 15: Body Harness Routing - Left Rear Cargo Compartment
GM1970234Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X308
2 JX305
3 X320
4 X320
5 Windshield Wiper Inhibit Relay (WCV)
6 X302
7 G402
8 Rear Shelf

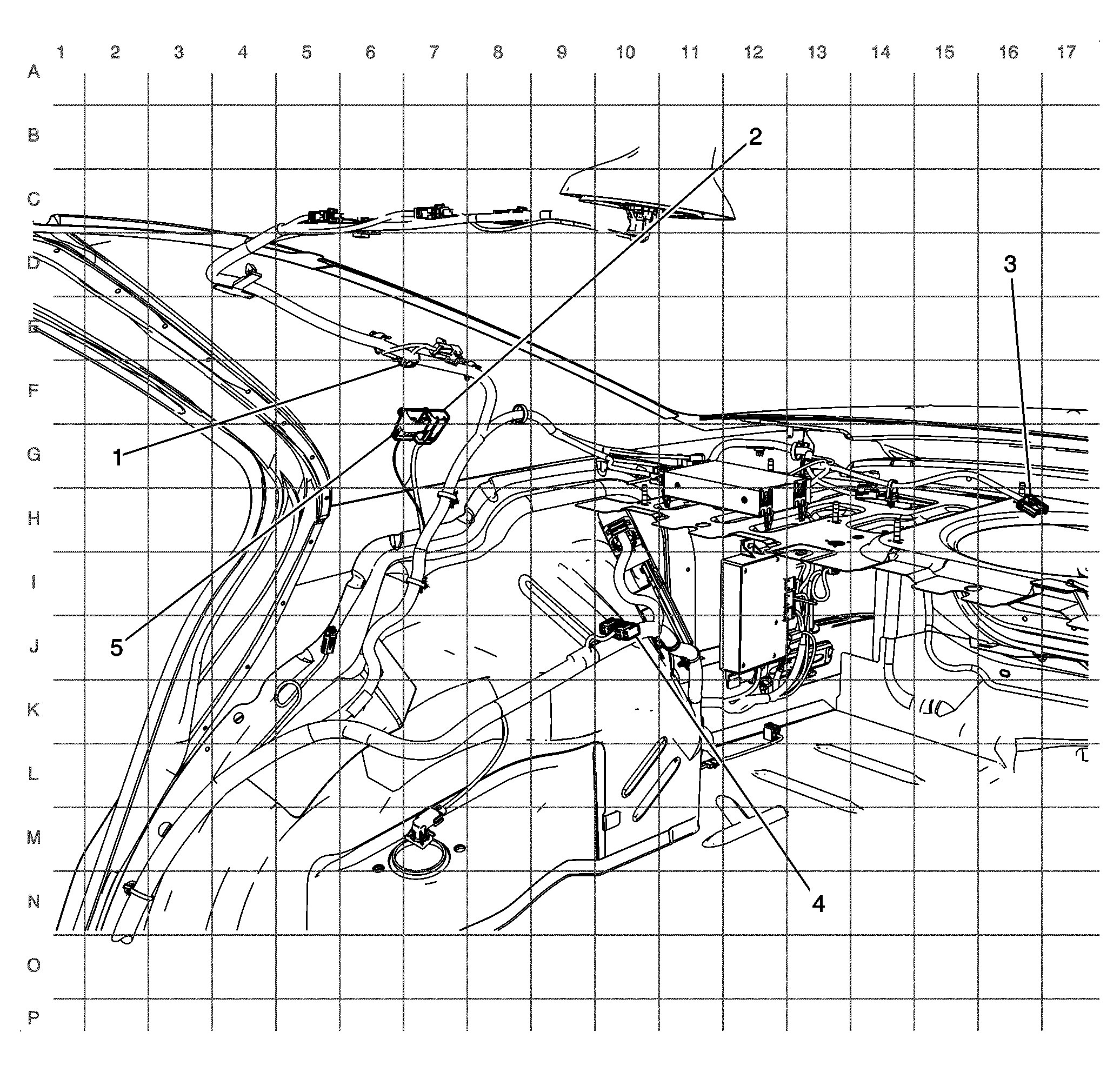

Fig 16: Body Harness Routing - Right Rear Cargo Compartment (1 of 2)
GM1970256Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G403
2 X310
3 Rear Decklid
4 JX304
5 X305
Fig 17: Body Harness Routing - Right Rear Cargo Compartment (2 of 2)
GM1488394Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Rear Fender
2 G401
3 Trunk Compartment Floor Panel

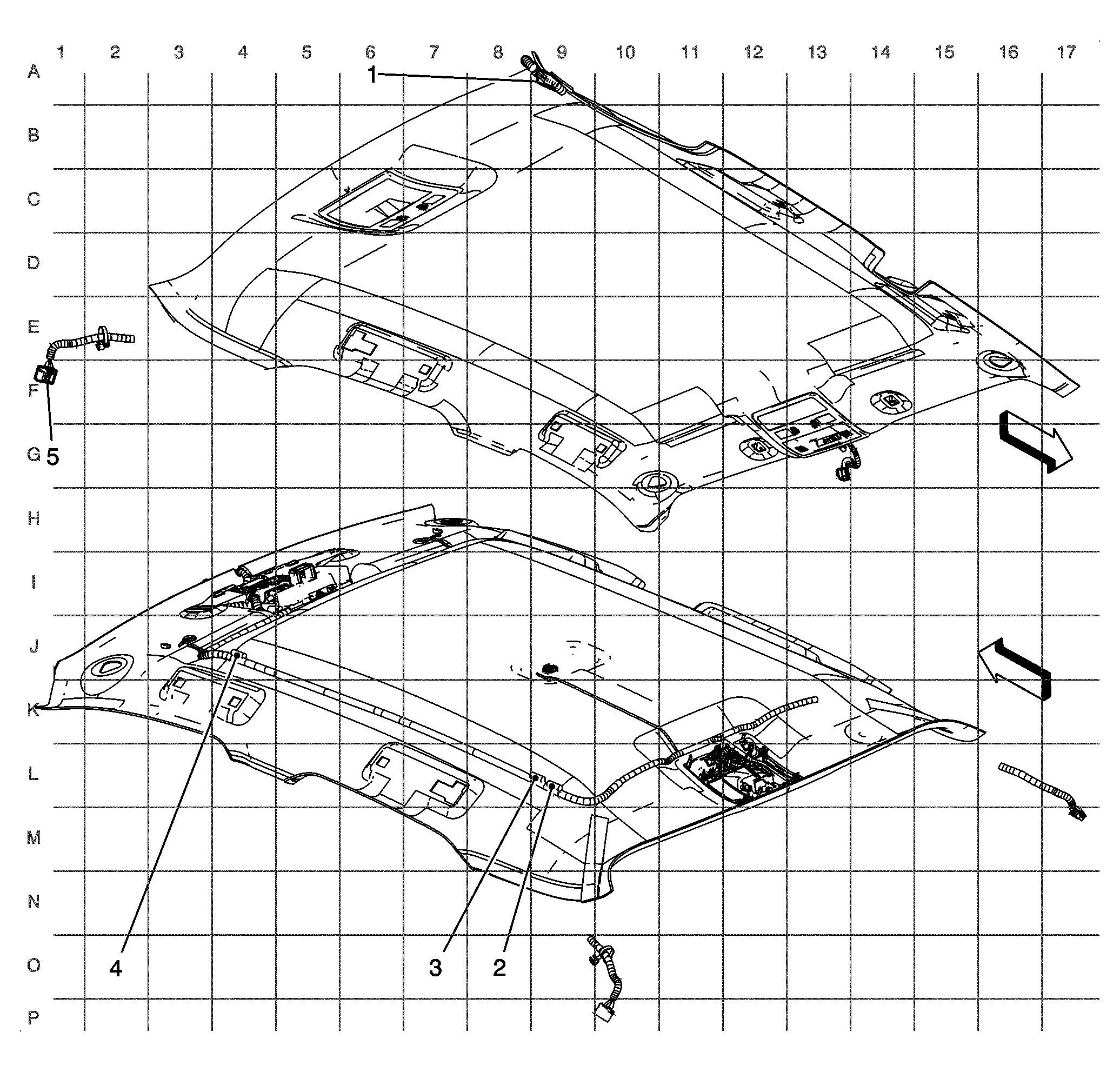

Fig 18: Headliner Harness Routing (without CF5)
GM1970272Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X305
2 J309
3 J308
4 J310
5 X308

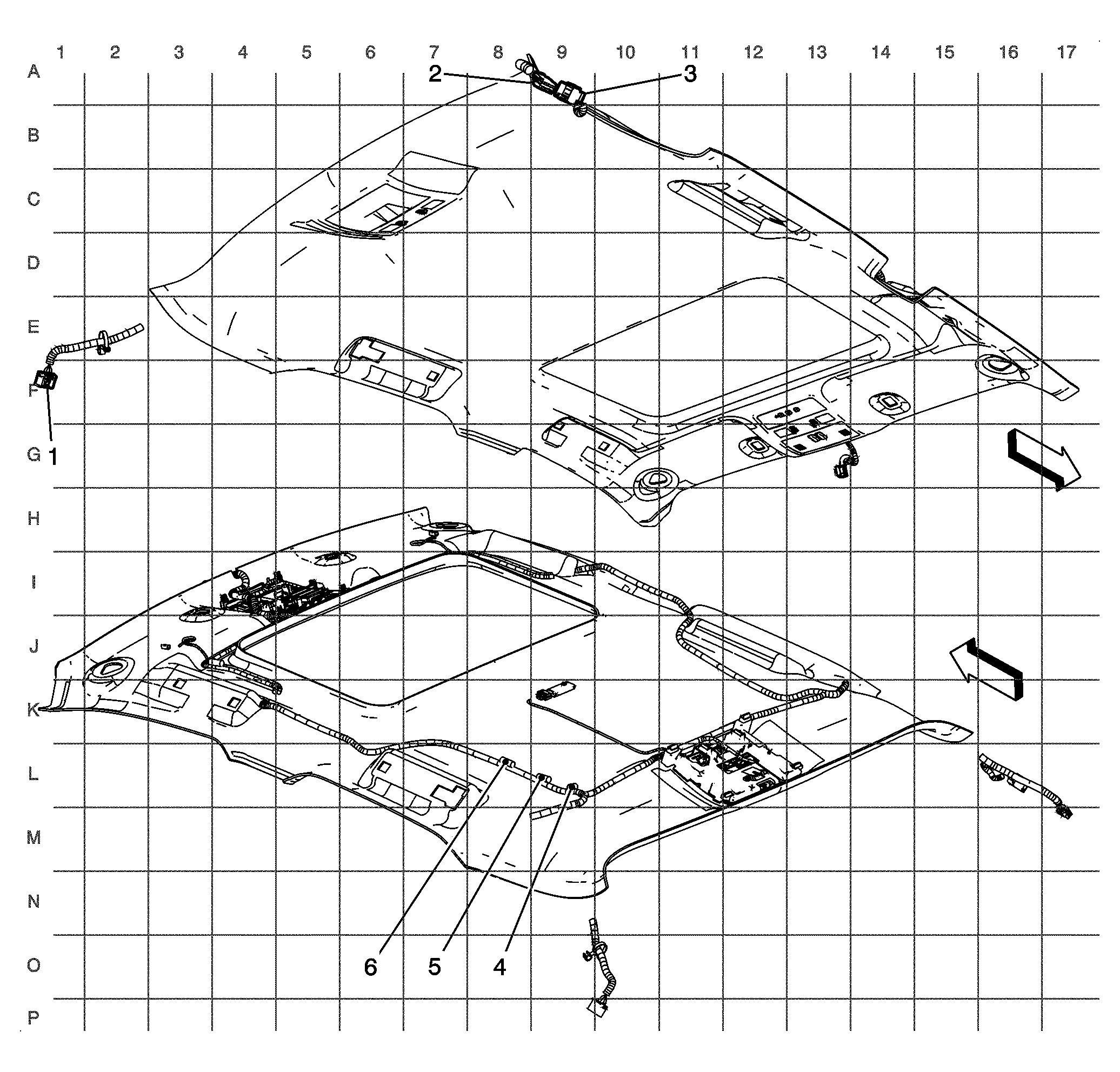

Fig 19: Headliner Harness Routing (CF5)
GM1970281Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X308
2 X305
3 X309
4 J308
5 X309
6 J310

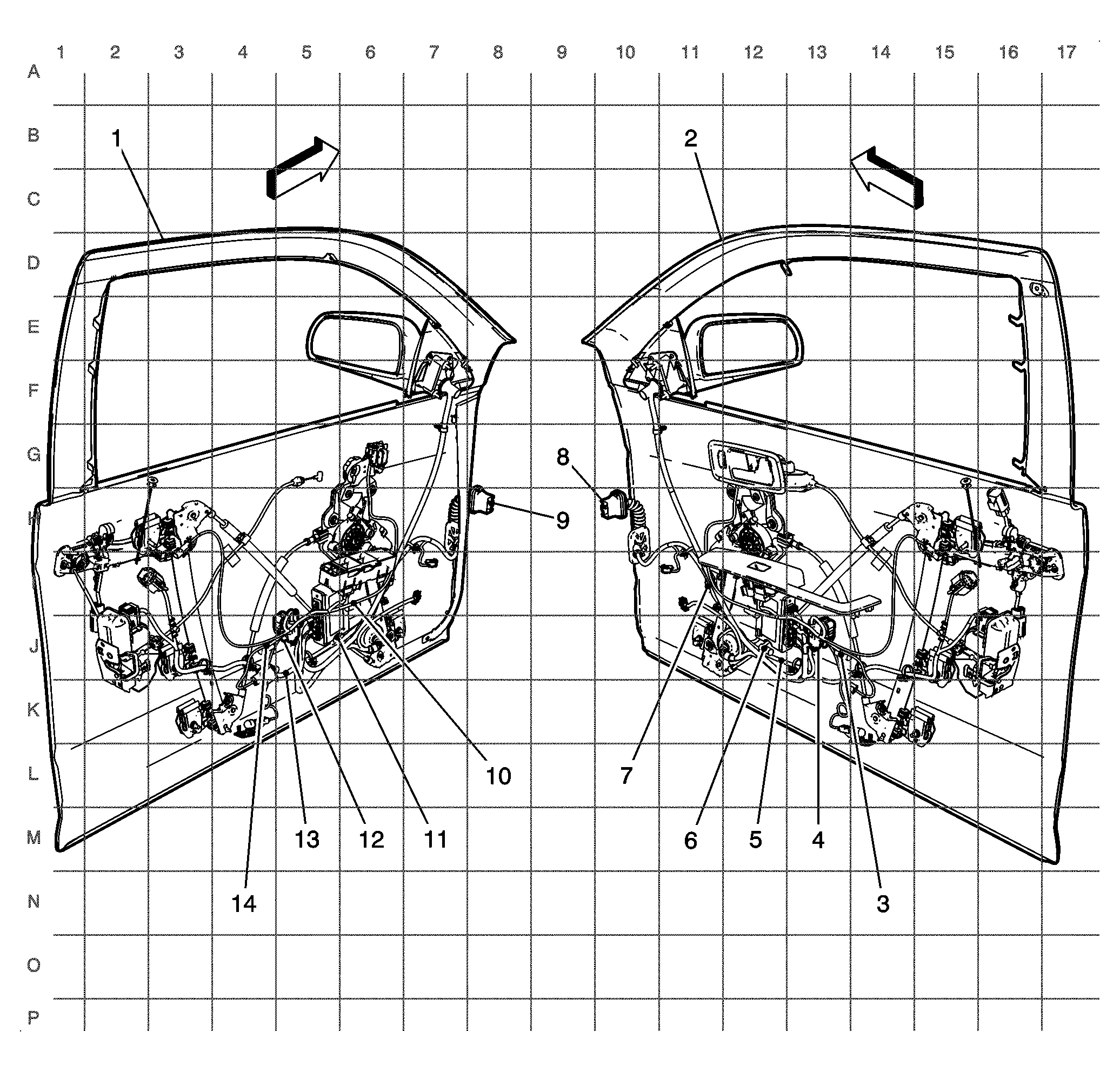

Fig 20: Front Doors Harness Routing
GM1970285Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Door
2 Front Passenger Door
3 J601
4 X601
5 J603
6 J600
7 J602
8 X600
9 X500
10 J504
11 J501
12 X501
13 J500
14 J501

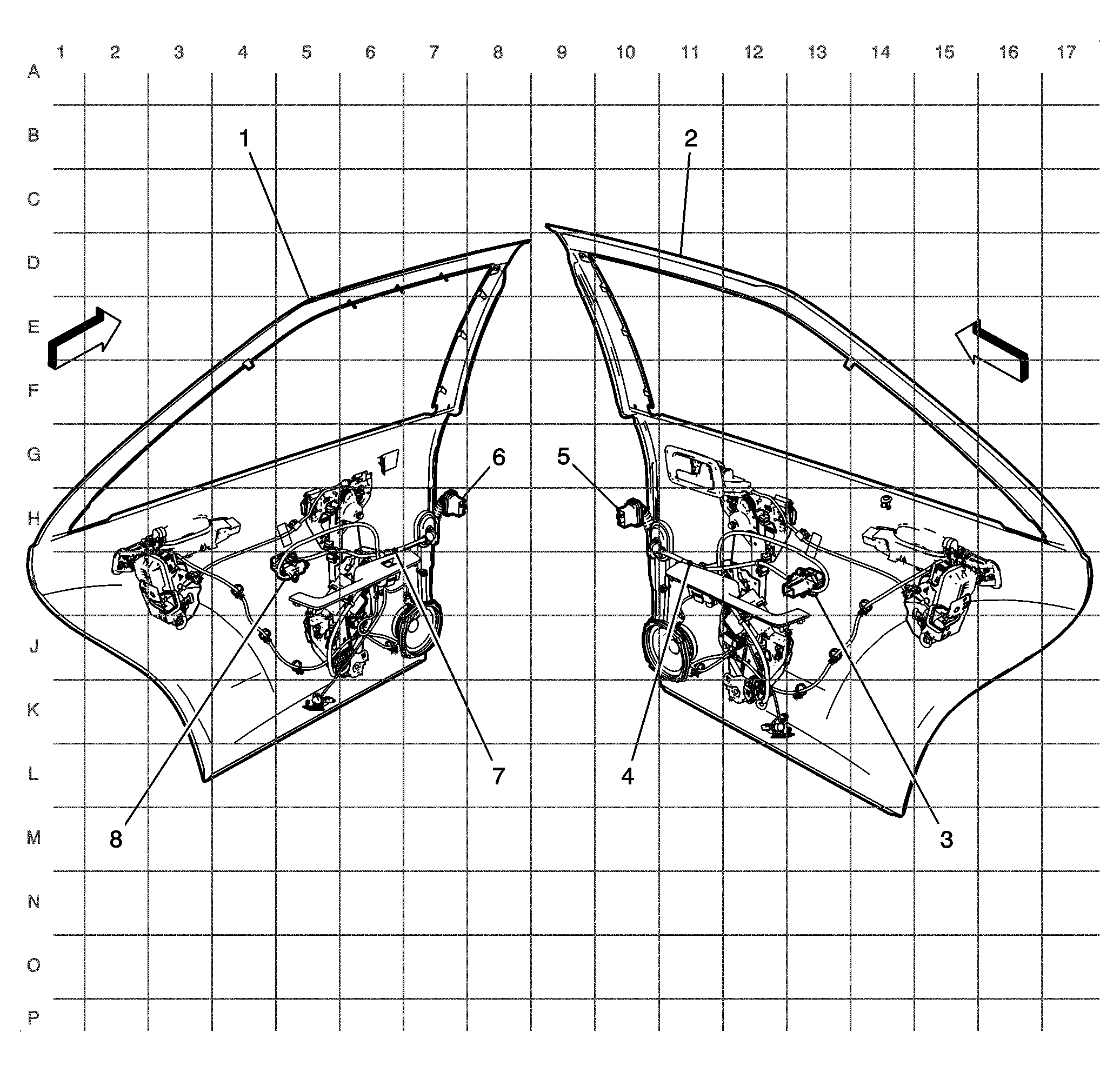

Fig 21: Rear Doors Harness Routing
GM1970296Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left Rear Door
2 Right Rear Door
3 X801
4 J800
5 X800
6 X700
7 J700
8 X701

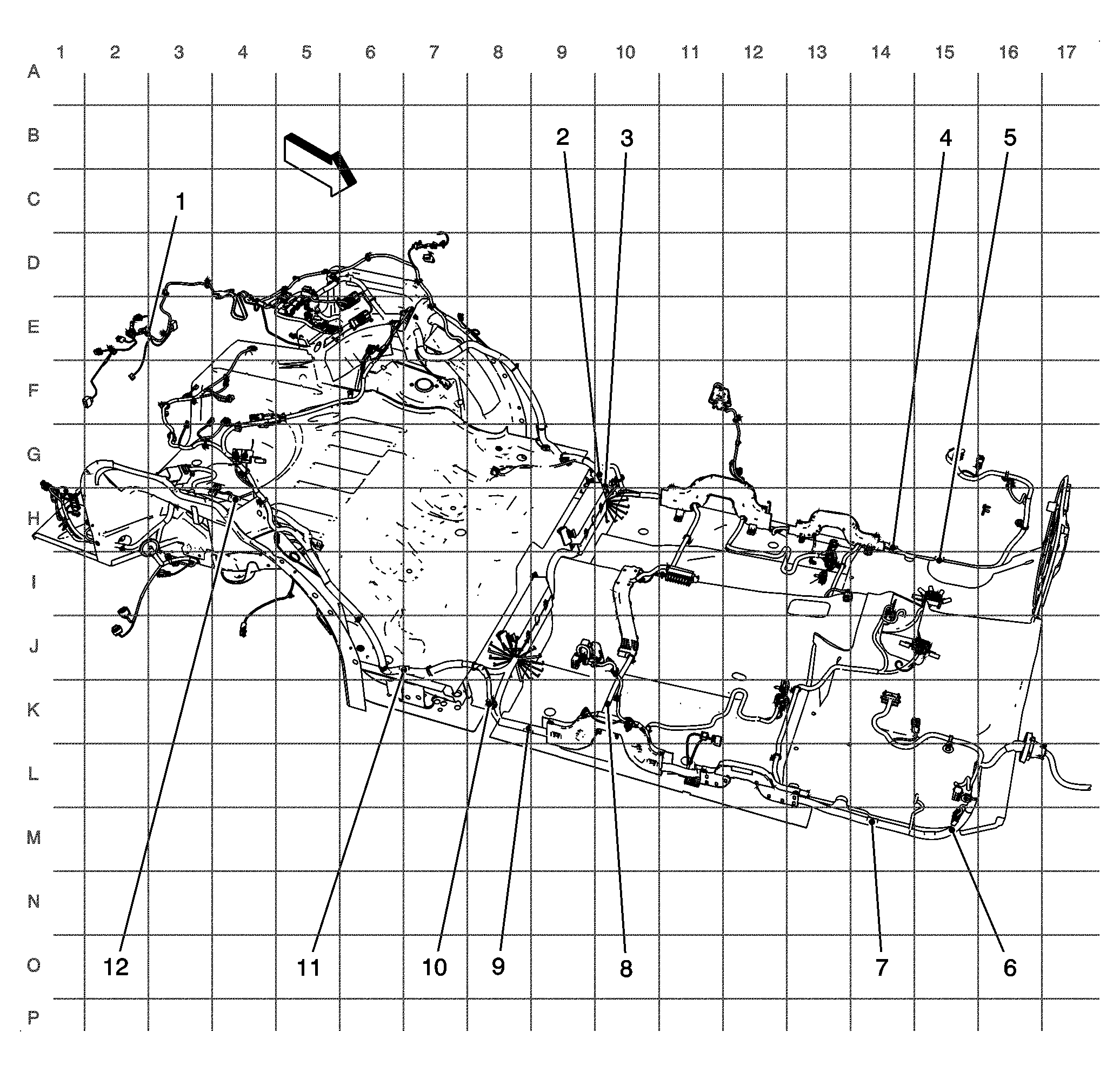

Fig 22: Body Harness Routing - Splices
GM1970266Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J401
2 J305
3 J307
4 J207
5 J205
6 J208
7 J209
8 J303
9 J302
10 J306
11 J317
12 J413

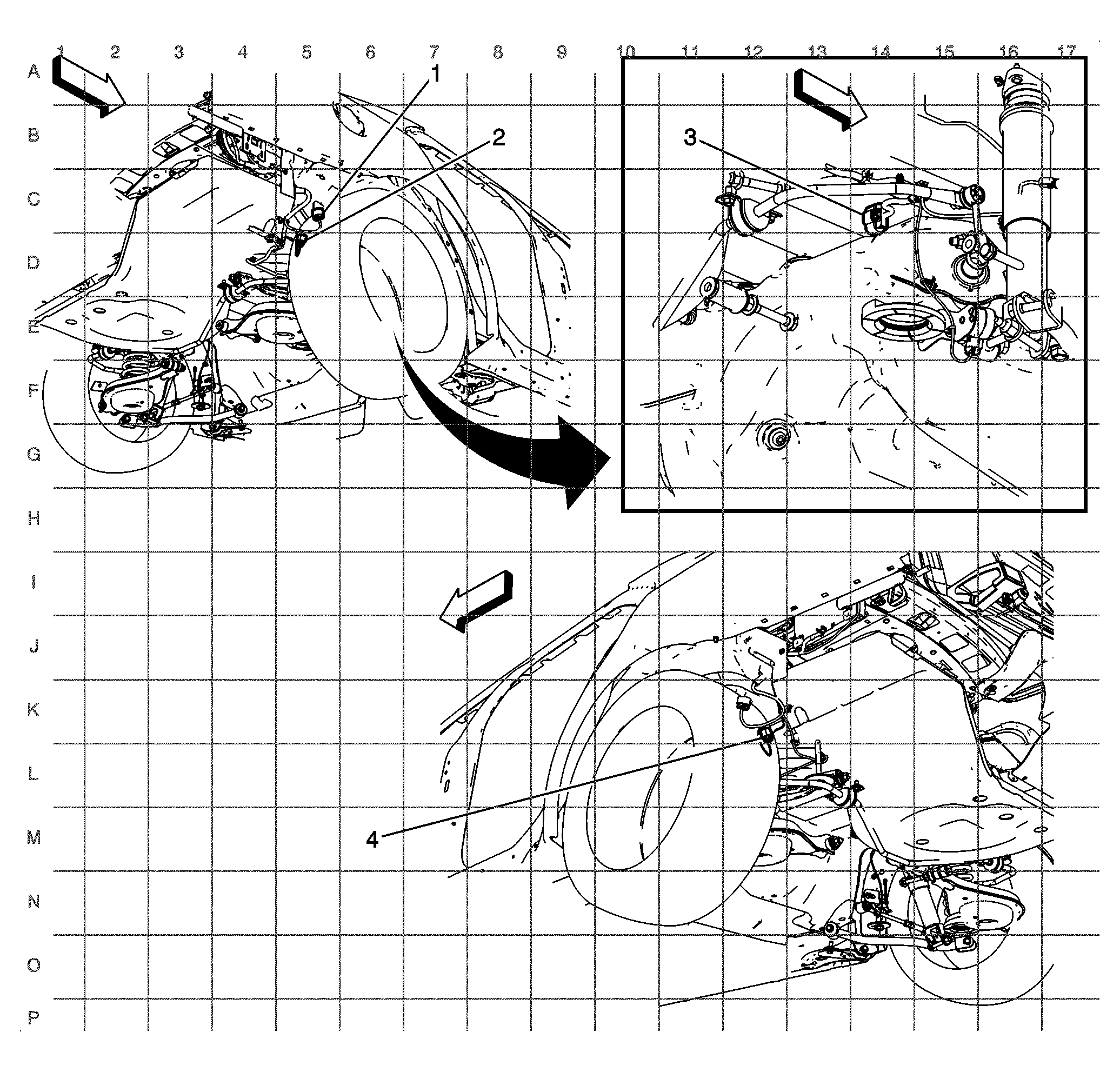

Fig 23: Body Harness Routing - Rear Underbody
GM1970264Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X401
2 X400
3 X420
4 X403

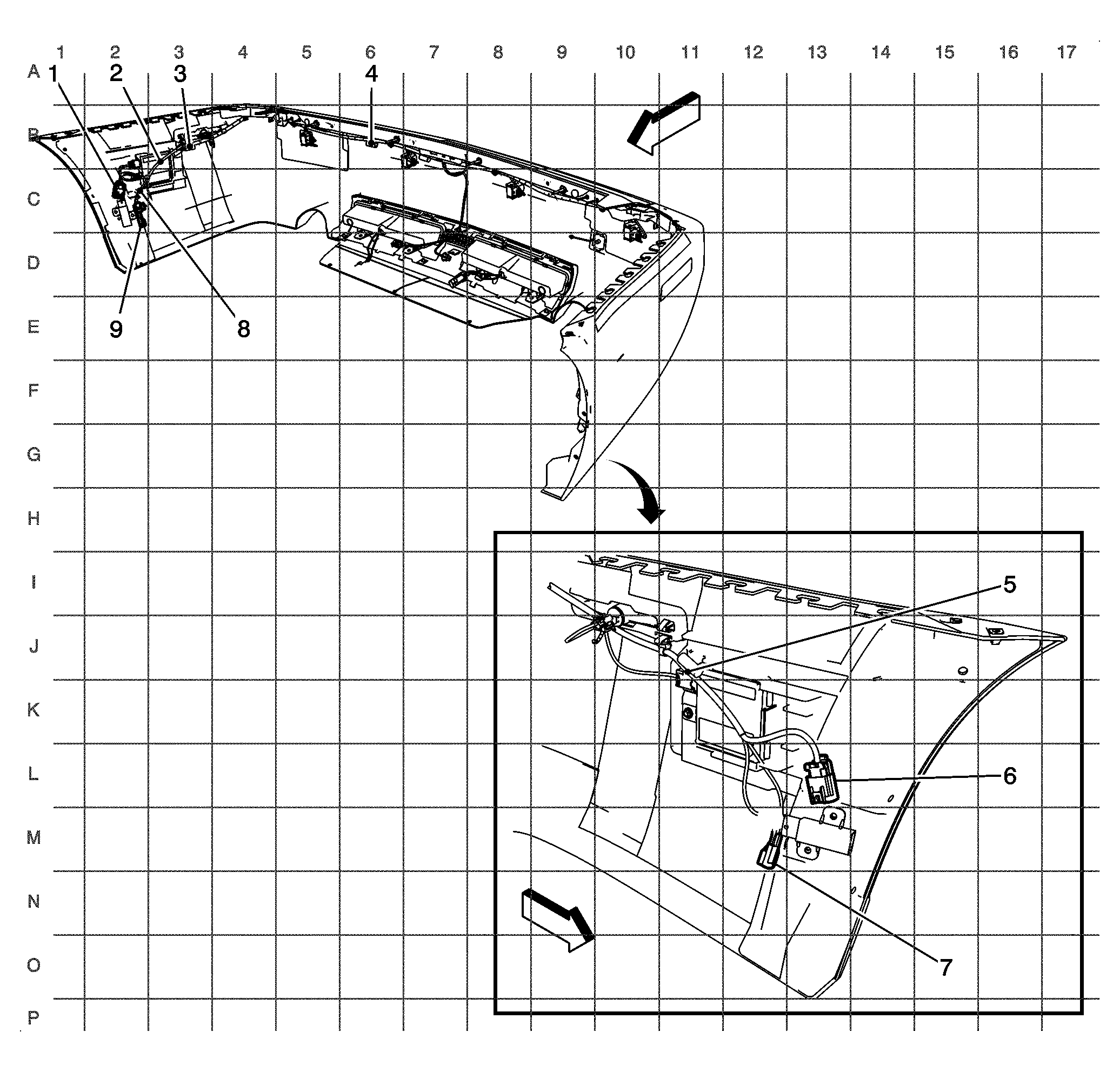

Fig 24: Rear Fascia Harness Routing
GM1970302Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X401
2 J405
3 J404
4 J403
5 J400
6 X402
7 X403
8 J410
9 X400
