Instrument Cluster Schematics

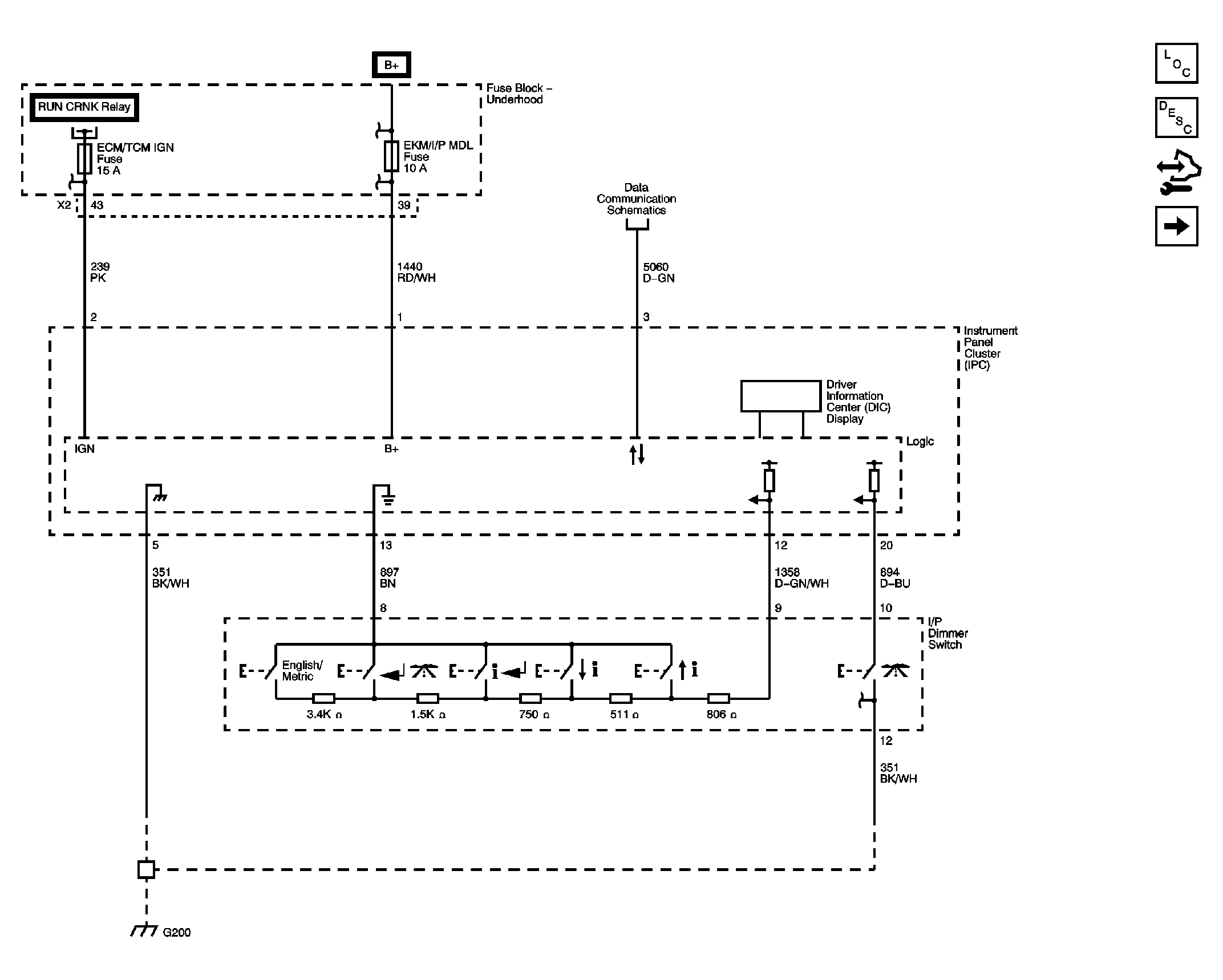

Fig 1: Power, Ground and Driver Information Center
GM2283365Courtesy of GENERAL MOTORS CORP.

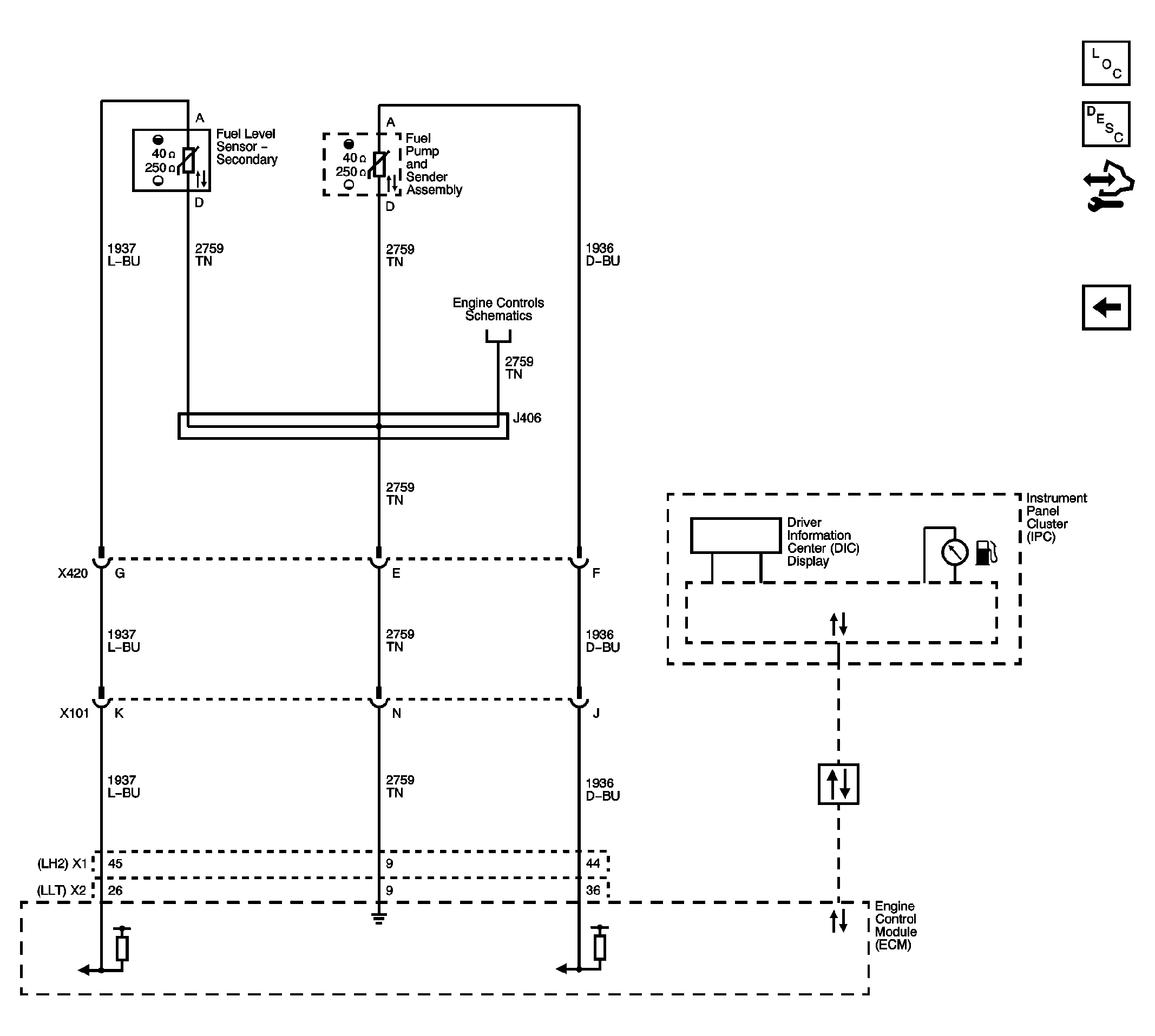

Fig 2: Indicators
GM2283366Courtesy of GENERAL MOTORS CORP.

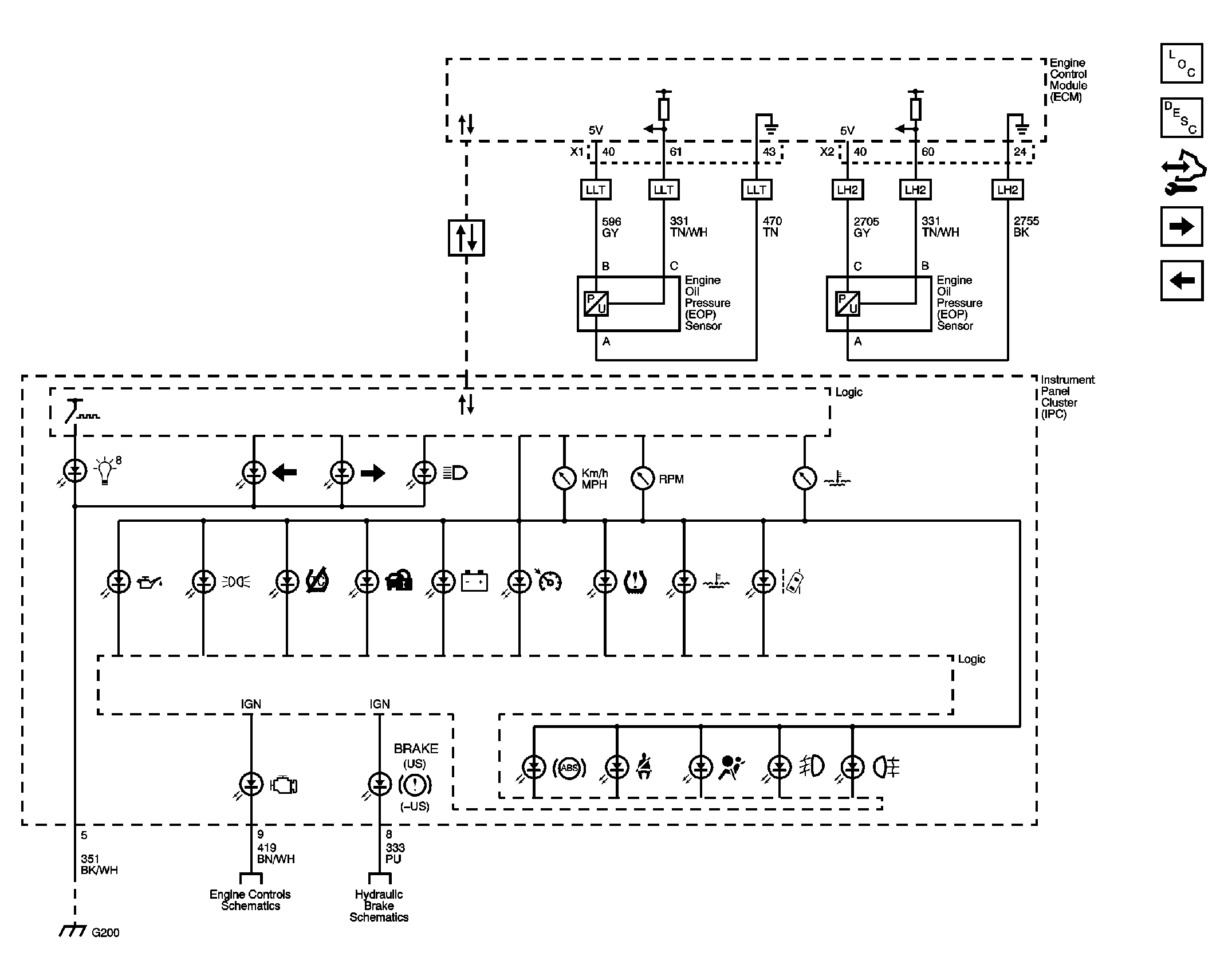

Fig 3: Engine Oil and Fuel Tank Level
GM2283367Courtesy of GENERAL MOTORS CORP.
