Rear Wheelhouse Panel Liner Replacement

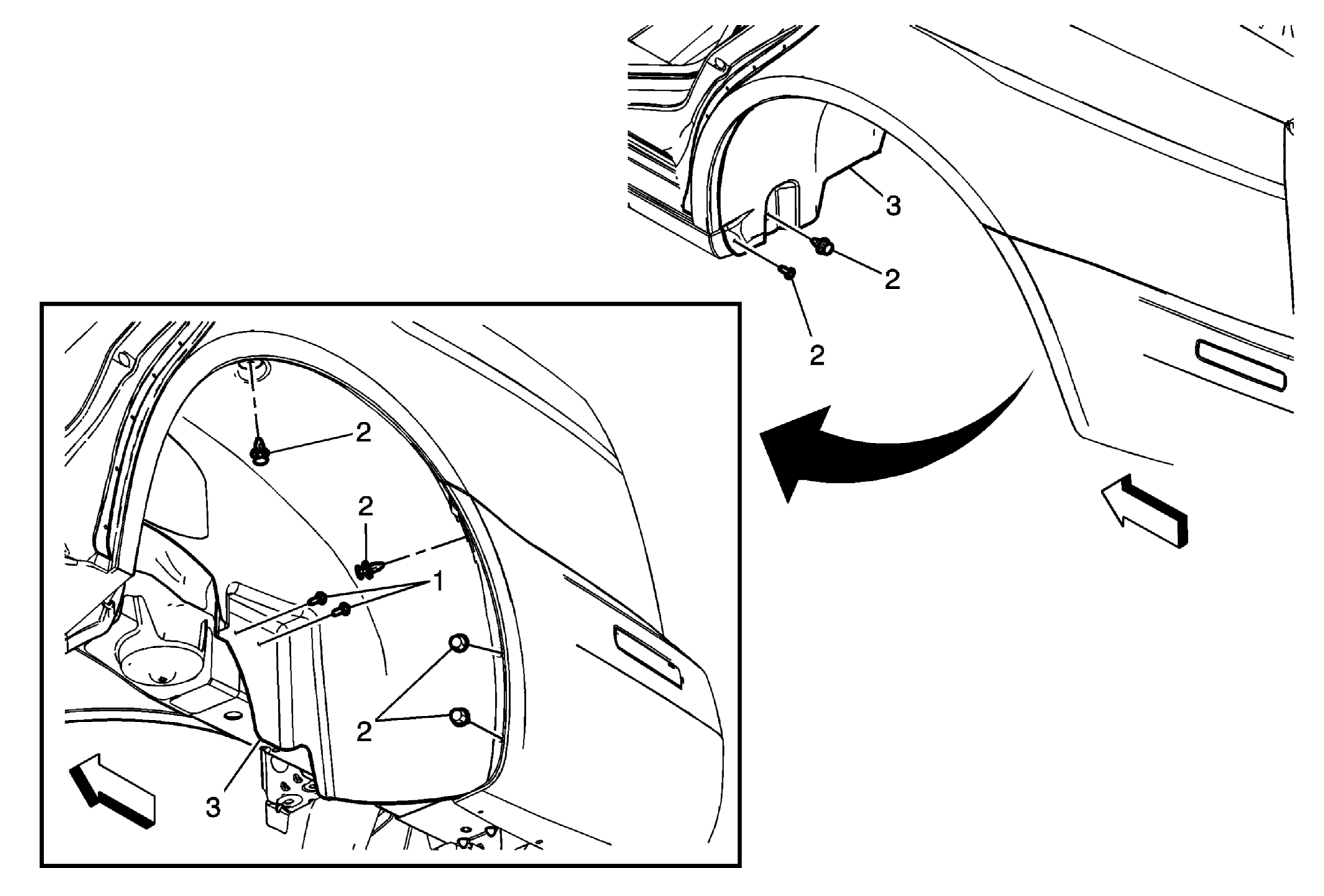

Fig 1: Rear Wheelhouse Panel Liner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the tire/wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Rear Wheelhouse Liner Panel Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	Rear Wheelhouse Liner Panel Plastic Retainers (Qty: 6)
3	Rear Wheelhouse Liner Panel
