Rear Side Door Bottom Auxiliary Sealing Strip Replacement

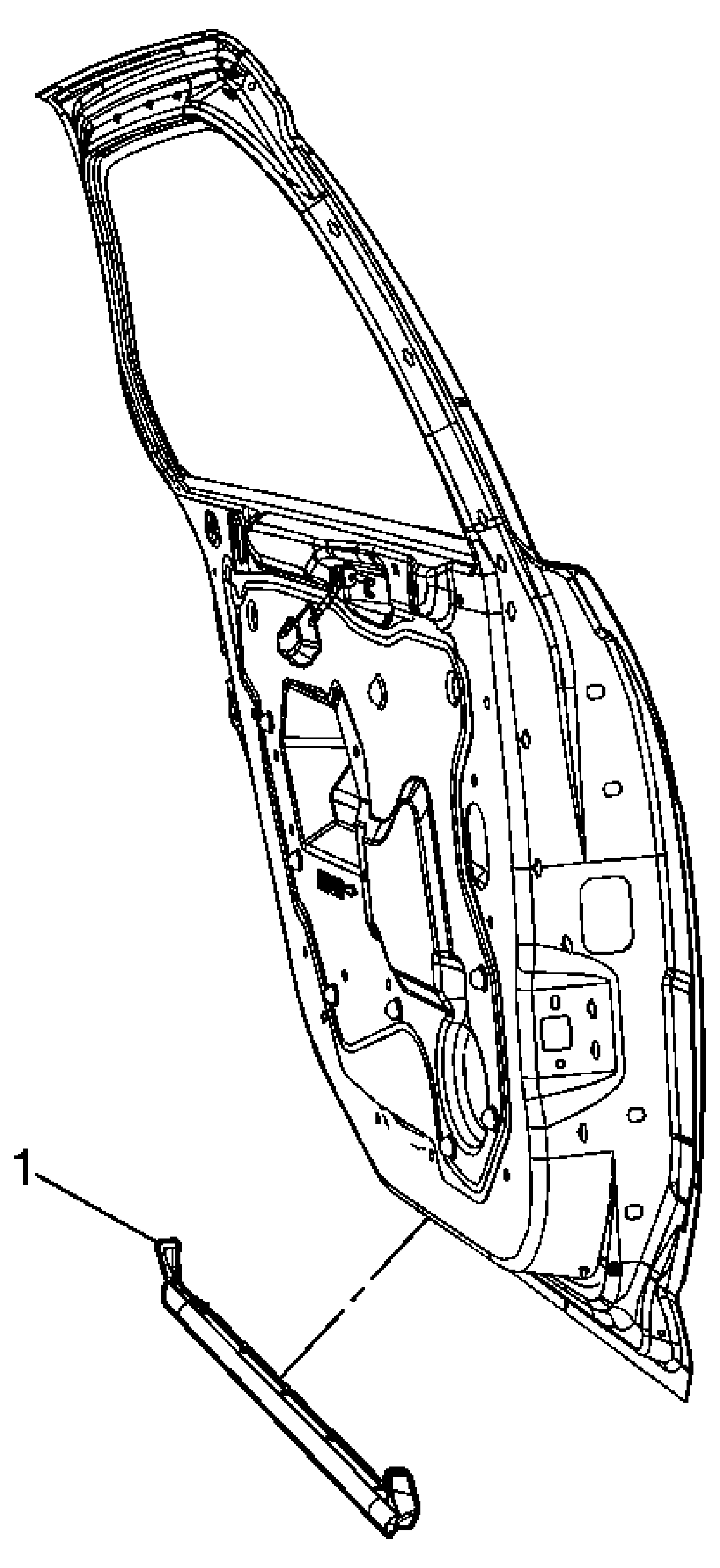

Fig 1: Rear Side Door Bottom Auxiliary Sealing Strip
GM1436608Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Side Door Bottom Auxiliary Sealing Strip
Tip:
  1. Open the door.
  2. The sealing strip is attached to the inner bottom of the door by 4 push-in-retainers.
