Rear Compartment Lid Replacement

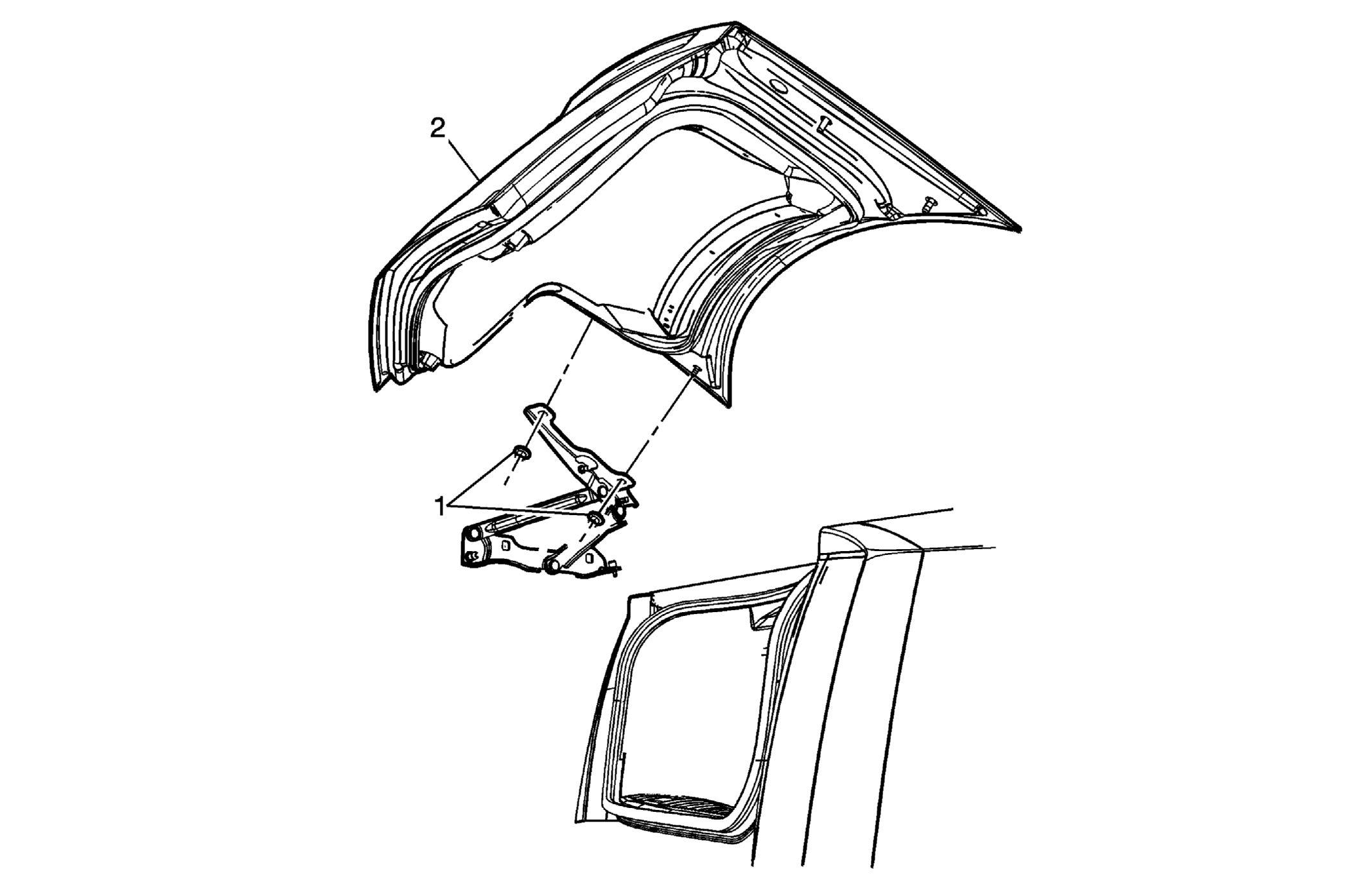

Fig 1: Rear Compartment Lid

GM1731109

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
Remove the rear compartment lid strut. Refer to Rear Compartment Lid Strut Replacement .

1

Rear Compartment Lid Hinge Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

2

Rear Compartment Lid
Tip:

Disconnect any electrical connectors attaching the body harness to the rear compartment lid.
Use help to keep the lid from falling when removing it to prevent personal injury and damage to the lid.
