Door Check Link Replacement (Rear Door)

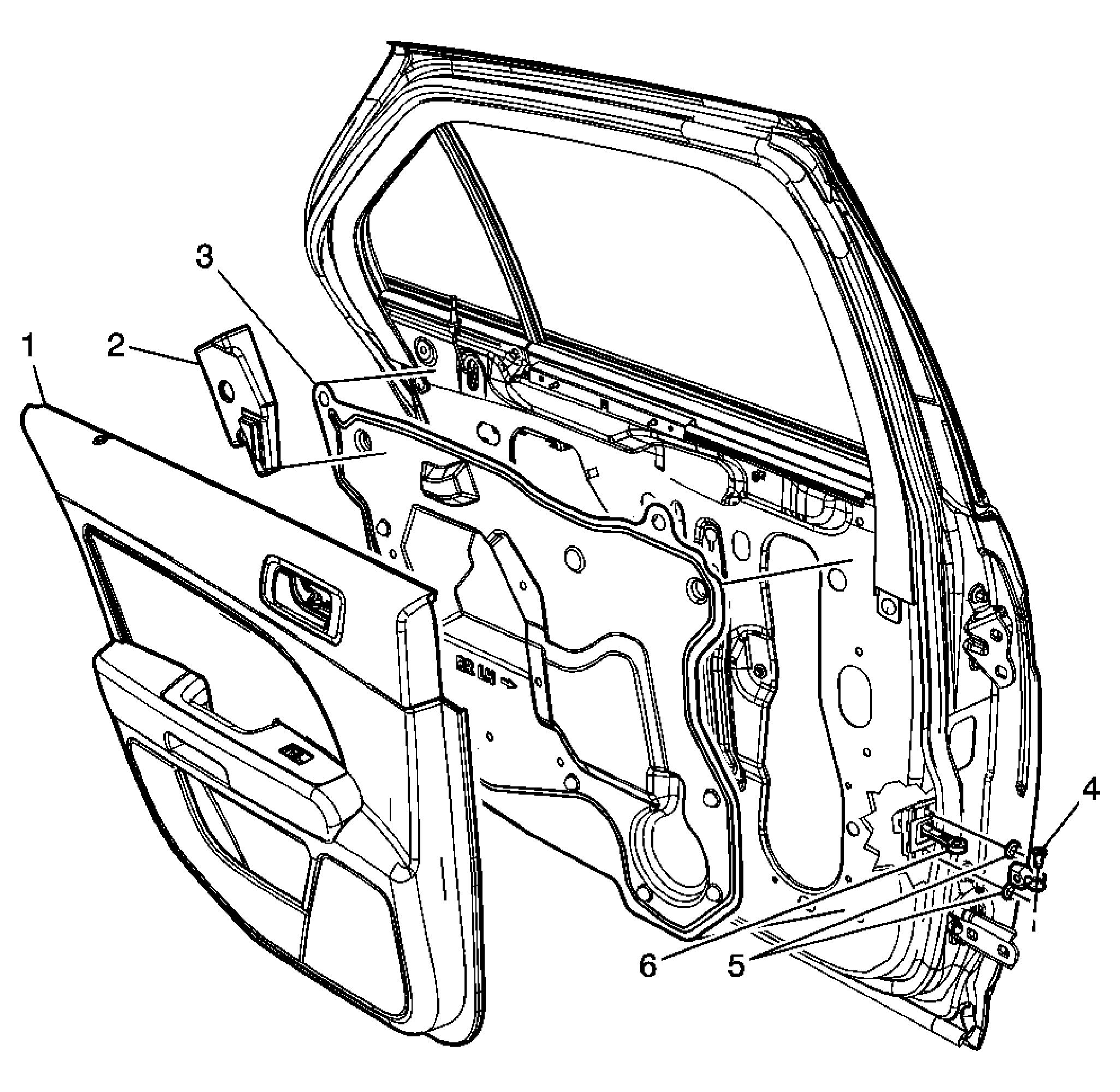

Fig 1: Door Check Link (Rear Door)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Side Door Trim Panel Refer to Front Side Door Trim Panel Replacement .
2	Rear Side Door Energy Absorber
3	Rear Side Door Water Deflector Refer to Front Side Door Water Deflector Replacement .
4	Rear Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Tighten: 32 N.m (24 lb ft)
5	Rear Side Door Check Link Nut (Qty: 2) Tighten: 10 N.m (89 lb in)
6	Rear Side Door Check Link Tip: Check link assembly is removed and installed from the inside of the door.
