Installation Procedure

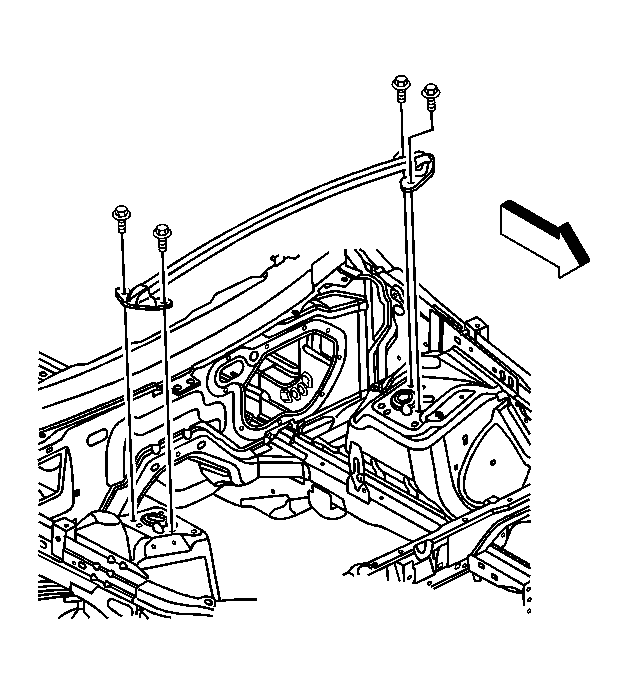

    Fig 1: Cross Vehicle Brace
    GM1216004Courtesy of GENERAL MOTORS CORP.
  1. Install the cross vehicle brace to the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the bolts to the cross vehicle brace and tighten to 112 N.m (83 lb ft).
  3. Close the hood.
