Removal Procedure

  1. Remove the rear seat back. Refer to Rear Seat Back Cushion Replacement .

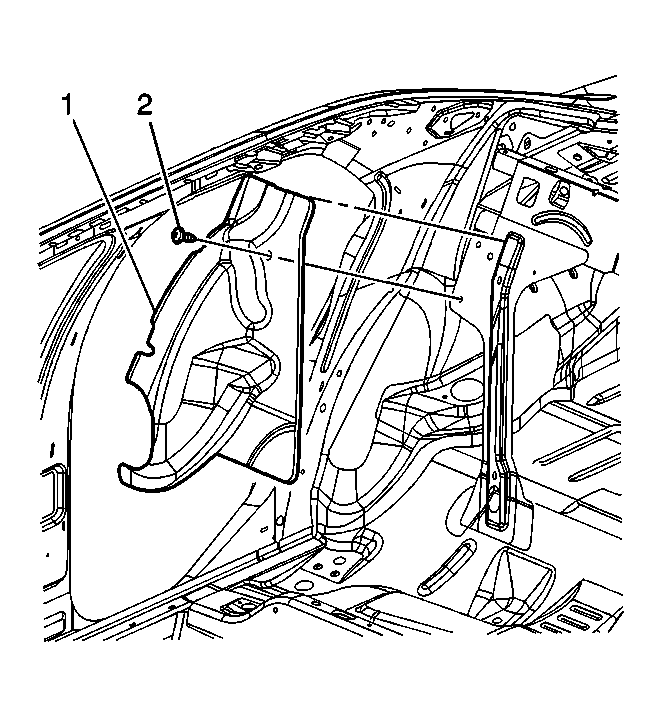

    2. Fig 1: Rear Wheelhouse Sound Barrier
    GM708168Courtesy of GENERAL MOTORS CORP.
  2. Remove the sound barrier (1) to the wheelhouse panel.
  3. Lift the rear compartment front interior trim.
  4. Remove the wheelhouse sound barrier from the vehicle.
