Starting and Charging Schematics

WARNING: This page is about a different car, the 2010 GMC Yukon, 2010 Chevrolet Tahoe, and 2010 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

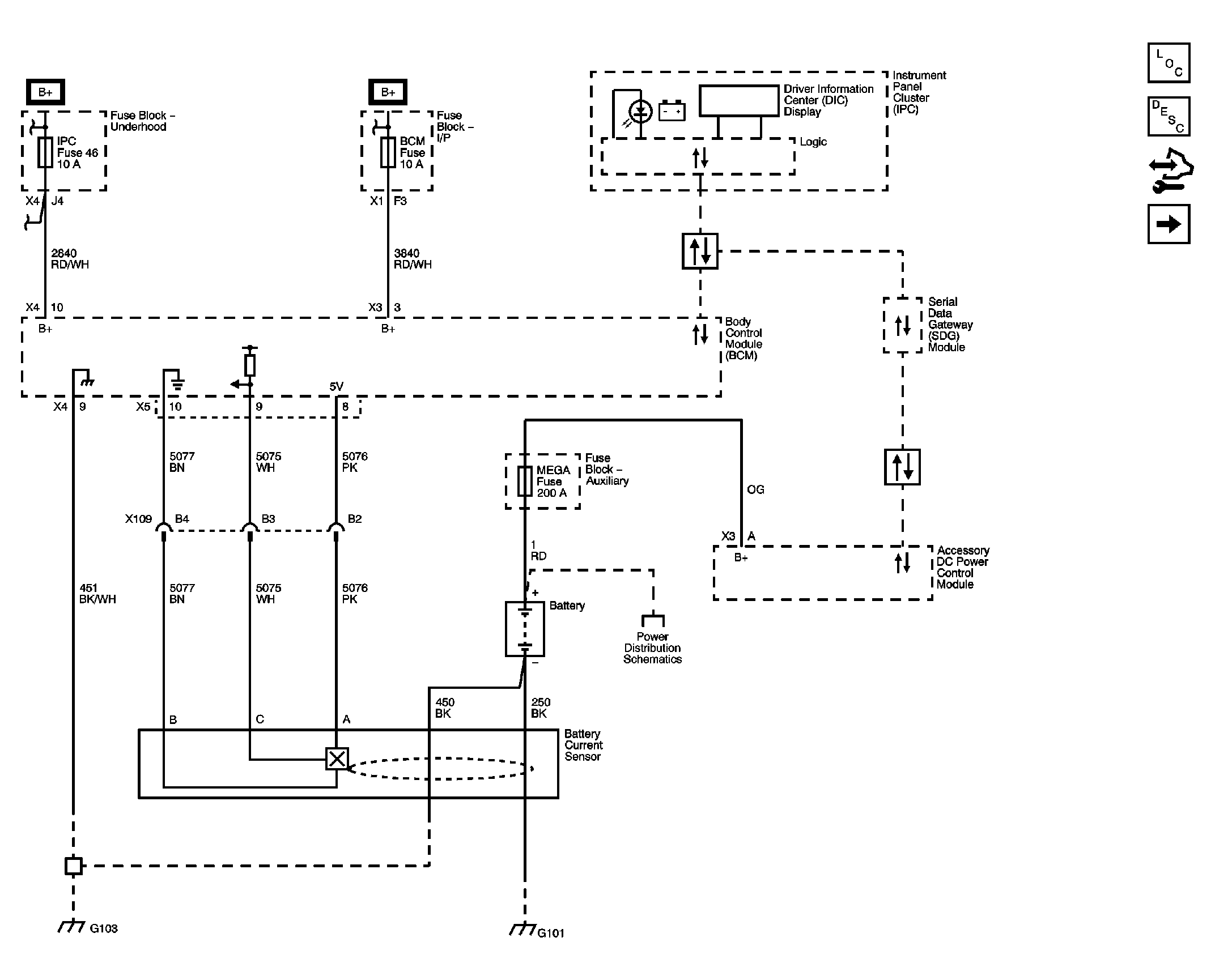

Fig 1: Charging (HP2)
GM2240727Courtesy of GENERAL MOTORS CORP.
