Starting and Charging Schematics

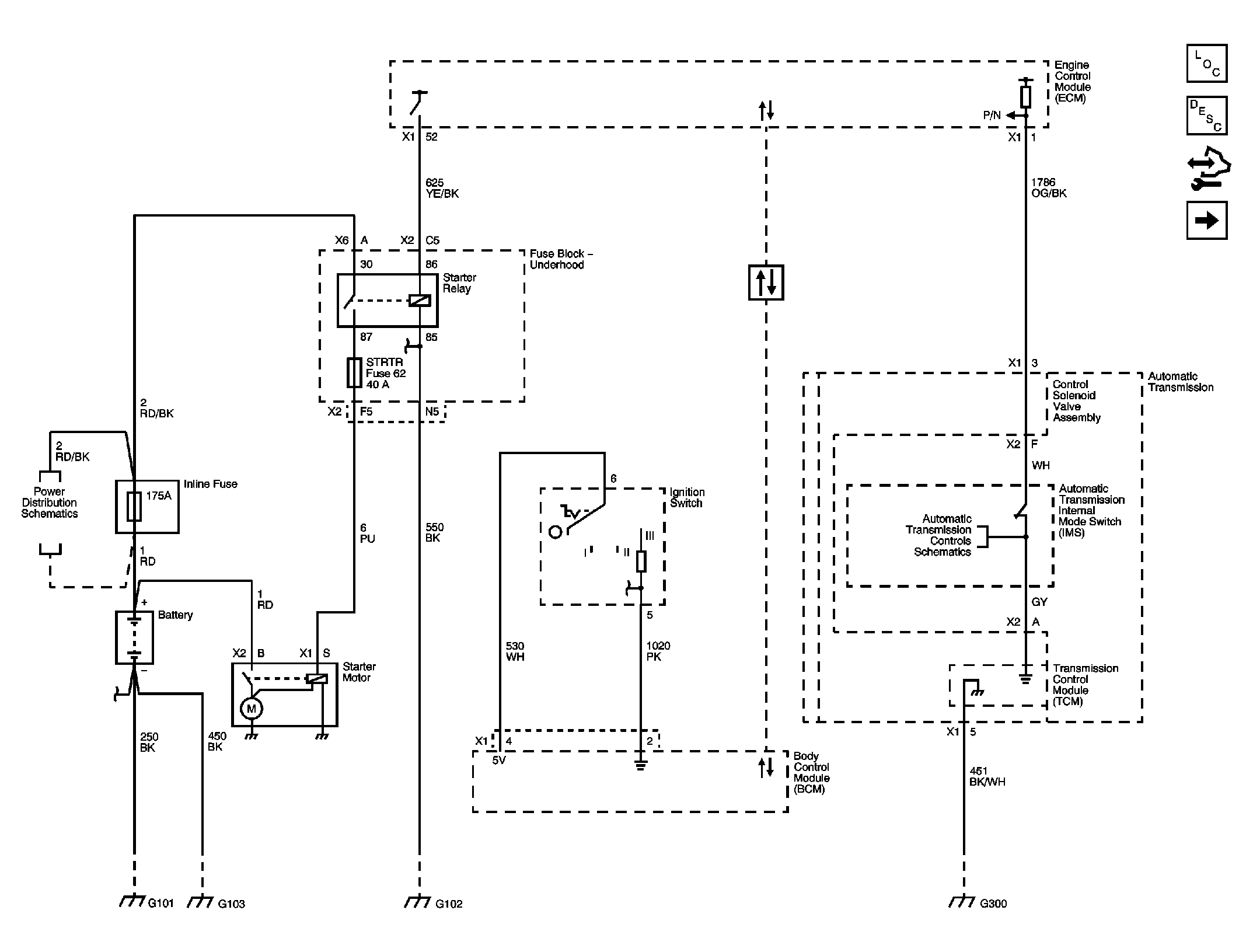

Fig 1: Starting (except HP2)

GM2240724

Courtesy of GENERAL MOTORS CORP.

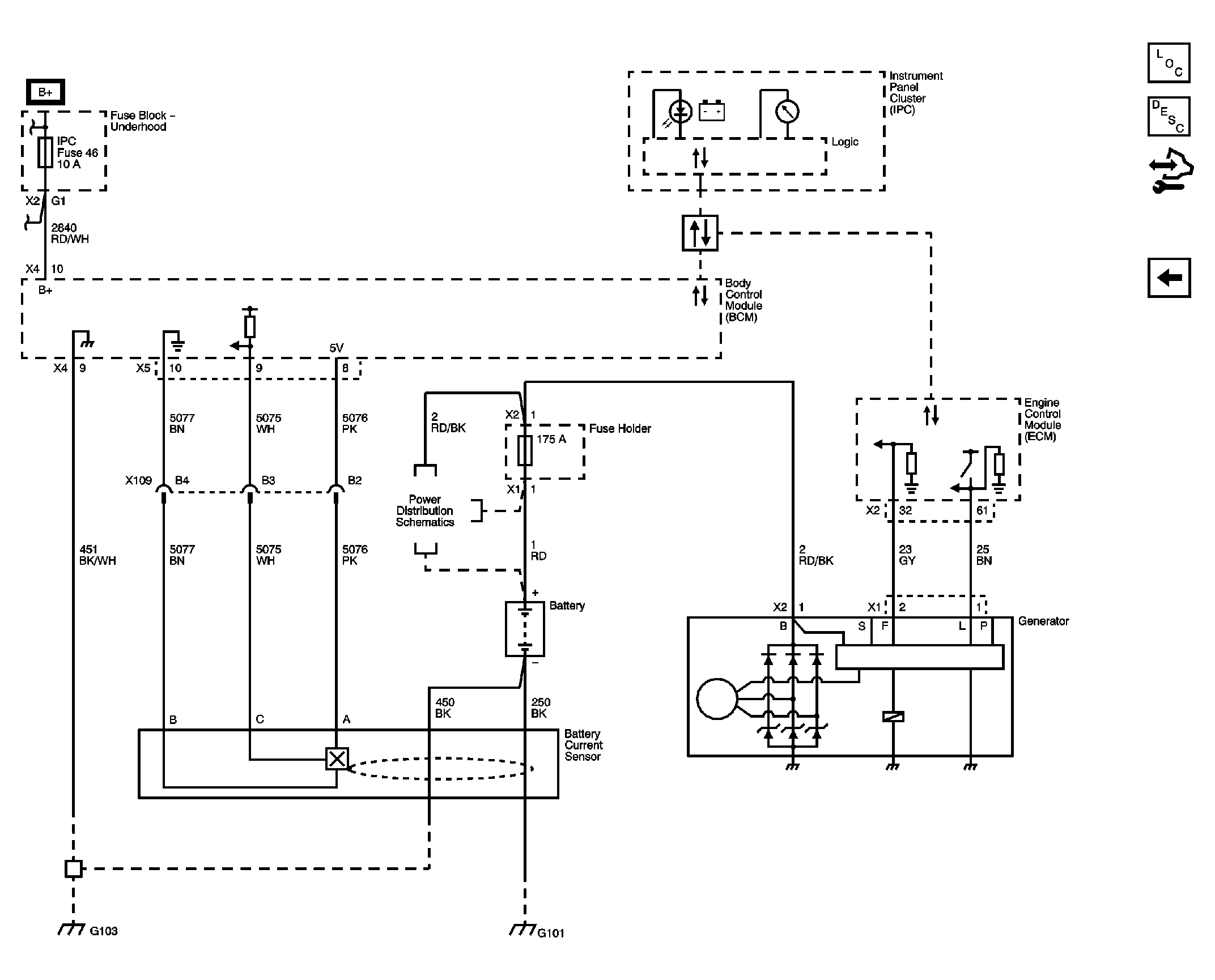

Fig 2: Charging (except HP2)

GM2240725

Courtesy of GENERAL MOTORS CORP.
