Instrument Cluster Schematics

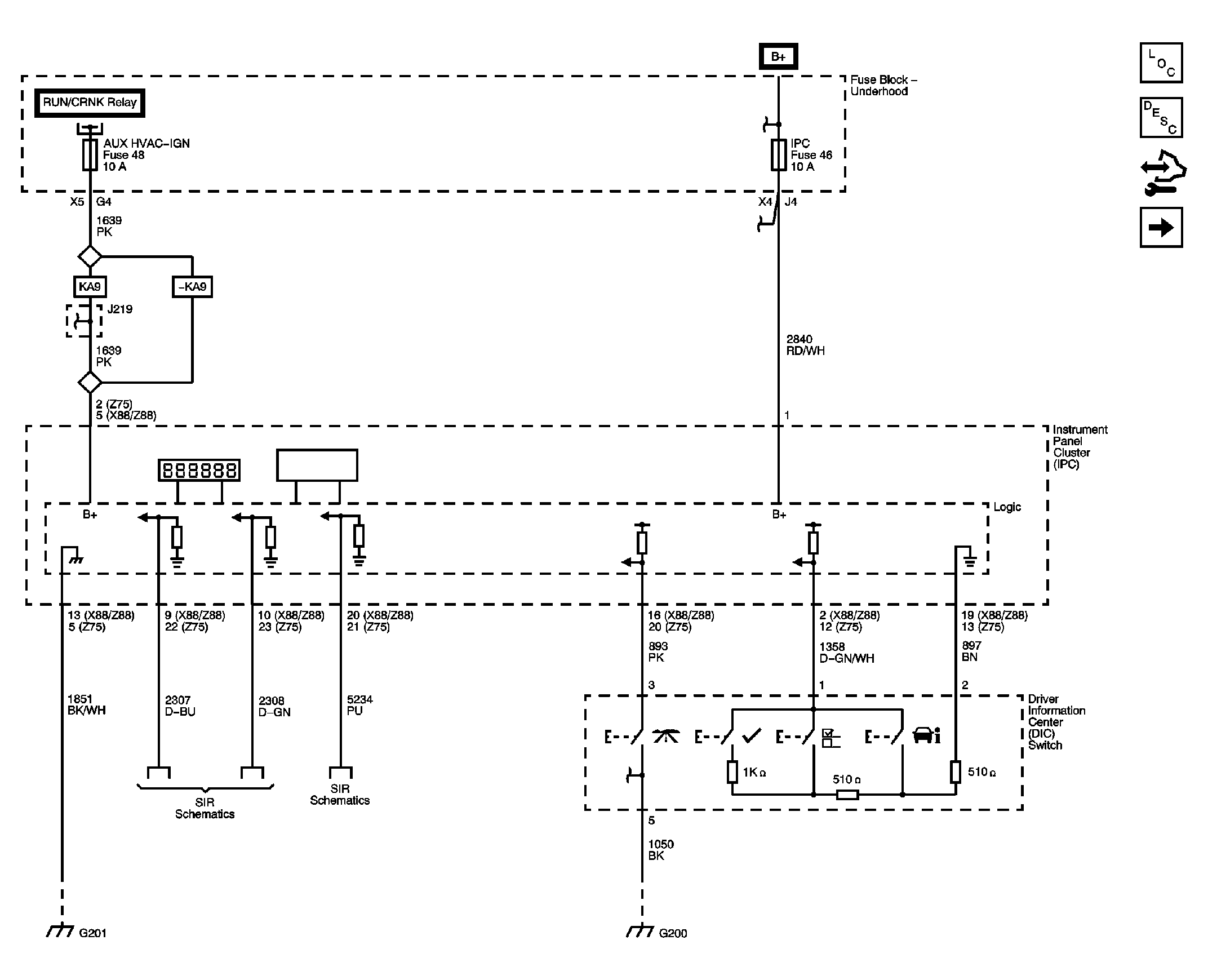

Fig 1: Power, Ground, and Driver Information Center Switch
GM2241206Courtesy of GENERAL MOTORS CORP.

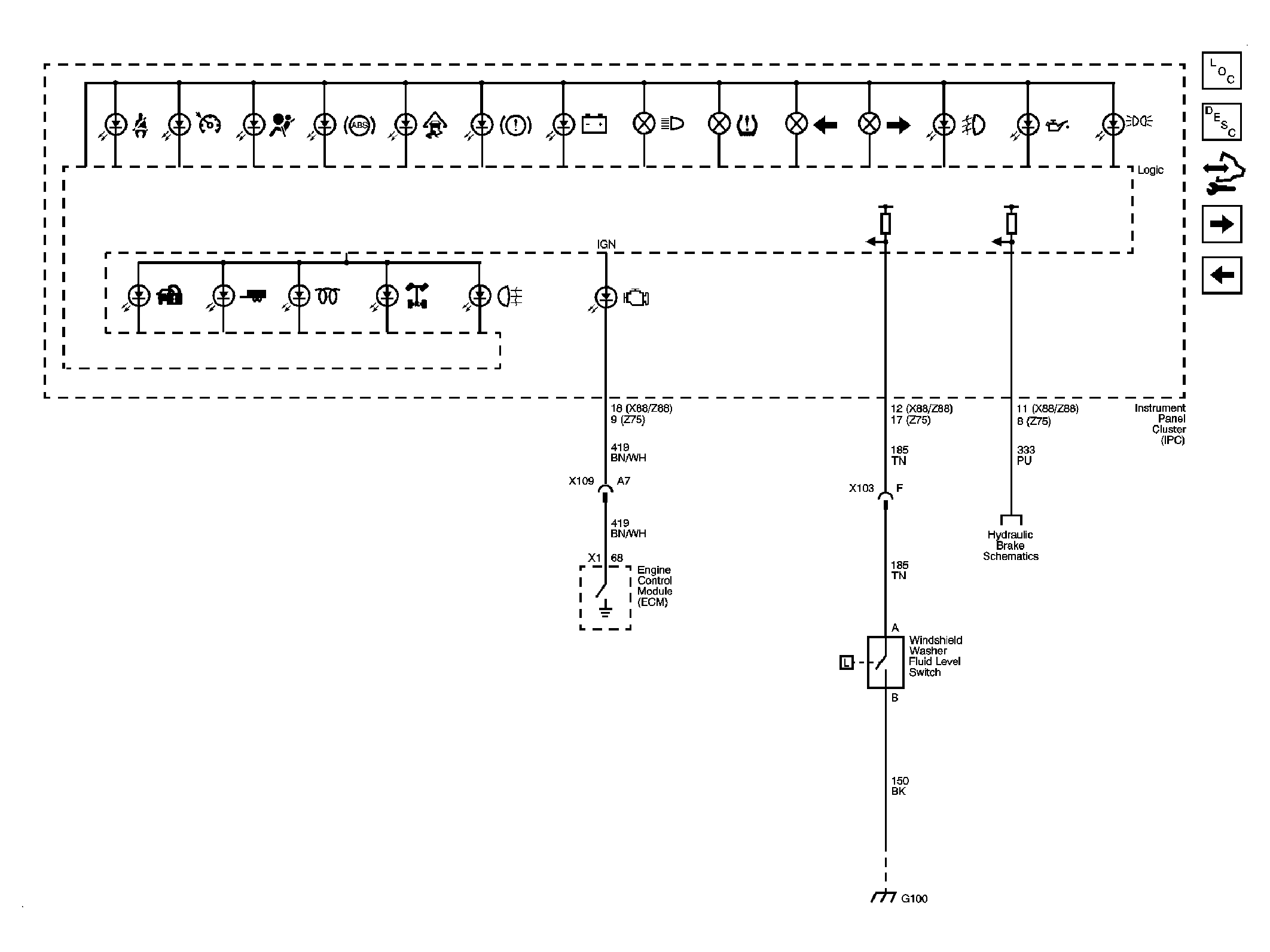

Fig 2: Indicators
GM2241207Courtesy of GENERAL MOTORS CORP.

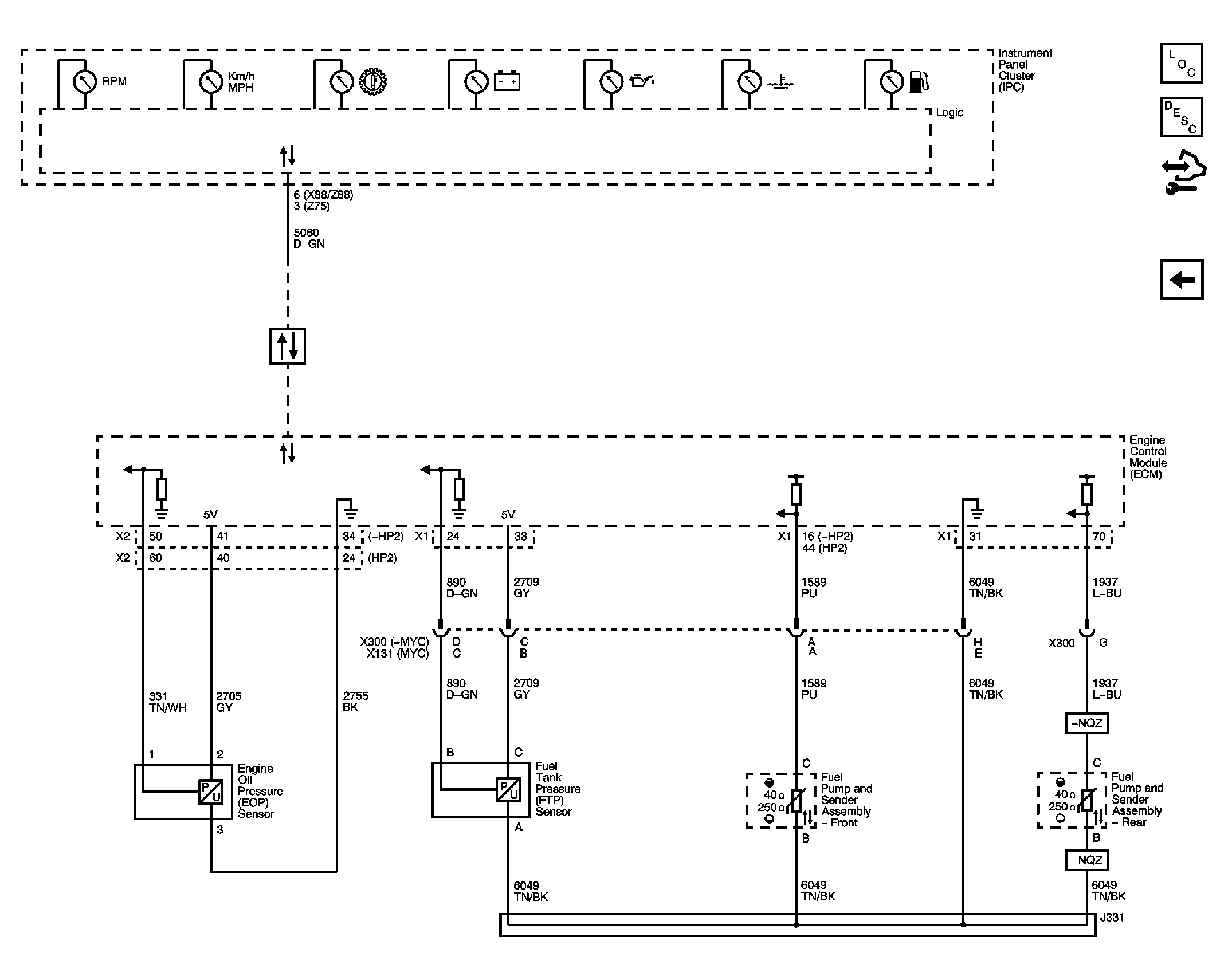

Fig 3: Gauges
GM2241208Courtesy of GENERAL MOTORS CORP.
