Antilock Brake System Schematics

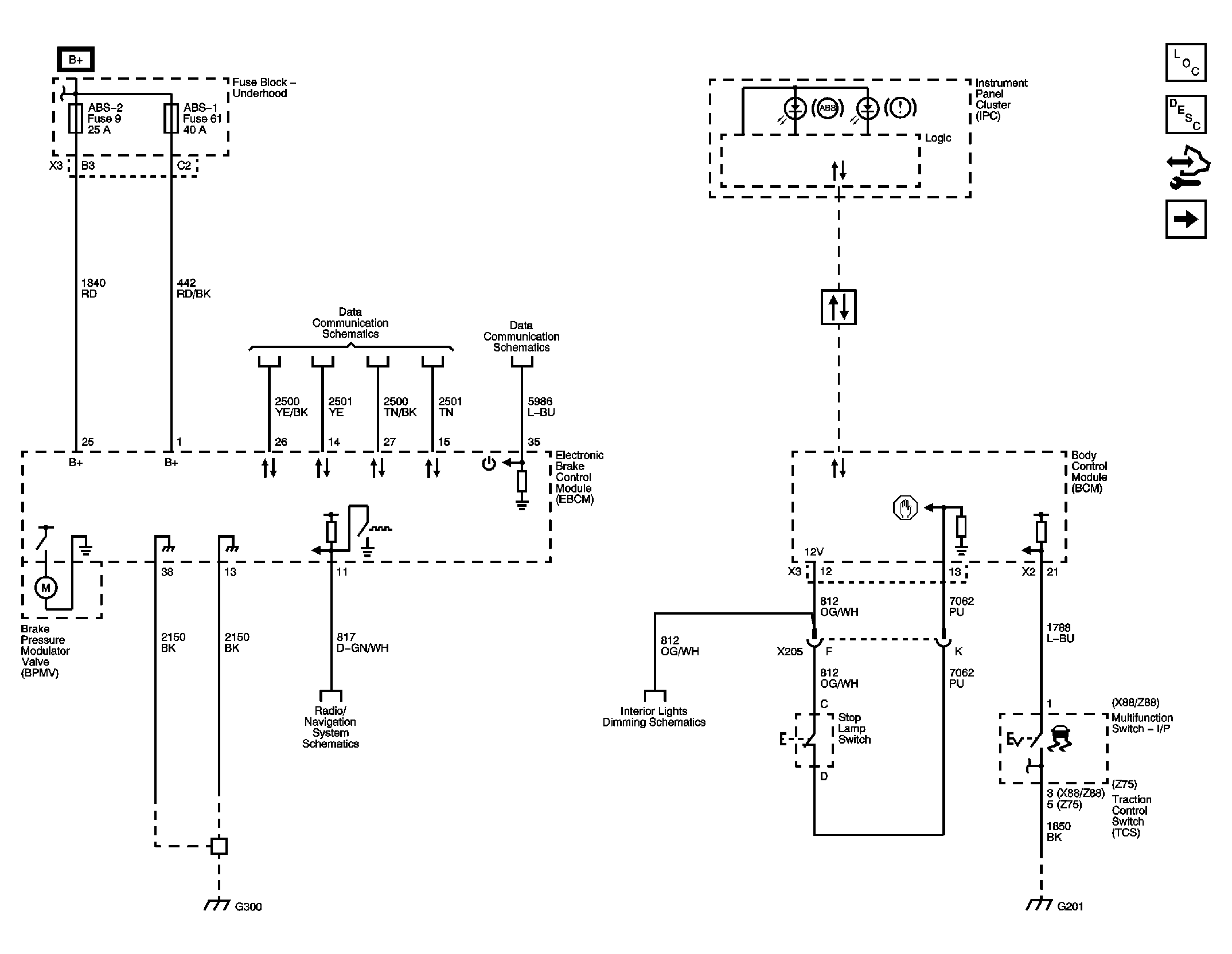

Fig 1: Module Power, Ground, and Serial Data, Pump Motor and Brake Switch
GM2241212Courtesy of GENERAL MOTORS CORP.

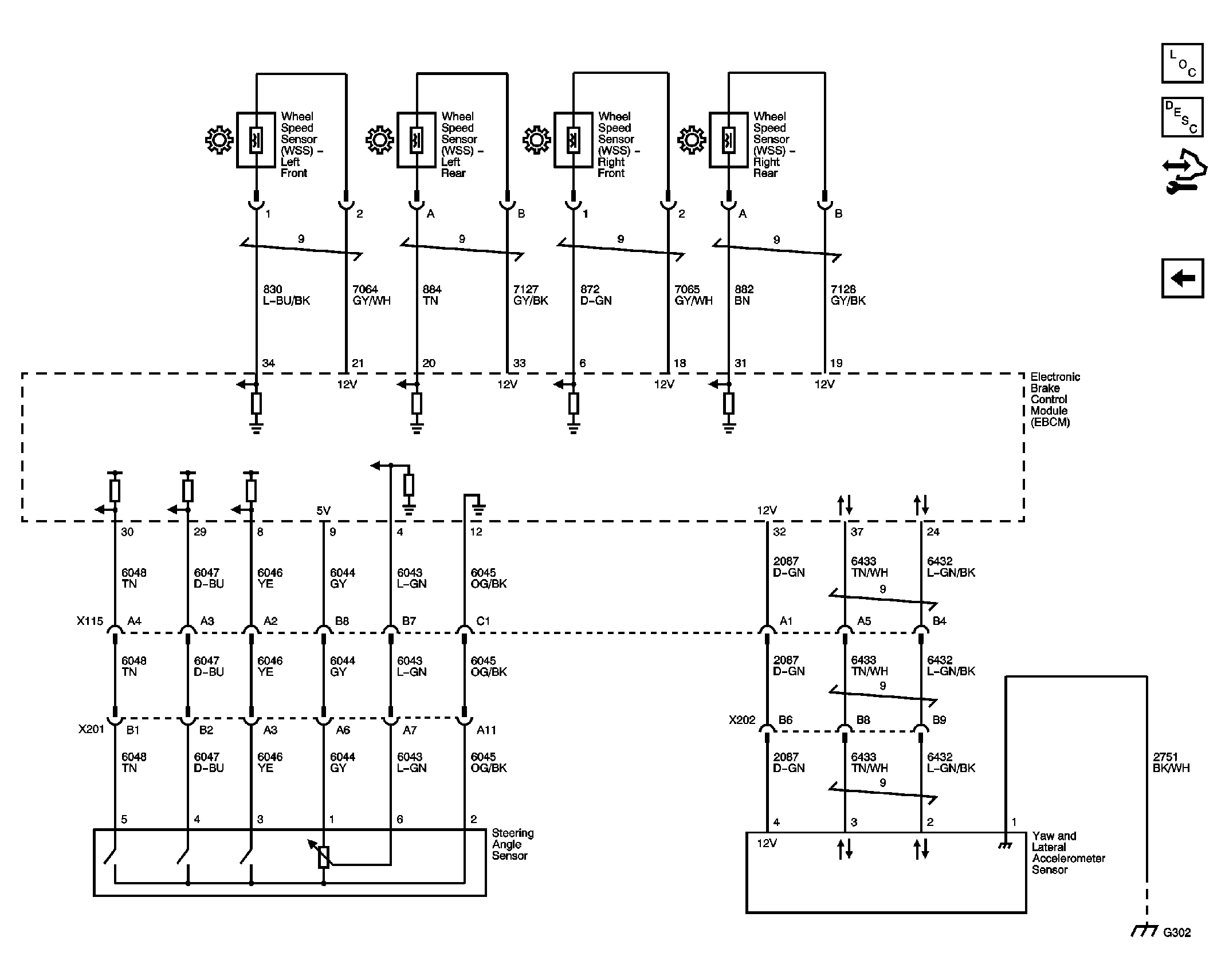

Fig 2: Antilock Brake System Sensors Schematic
GM2241213Courtesy of GENERAL MOTORS CORP.
