Transmission Pressure Test Port: Service and Repair

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure

1. Remove the throttle body air inlet duct. Refer to Air Cleaner Outlet Duct Replacement (Service and Repair).

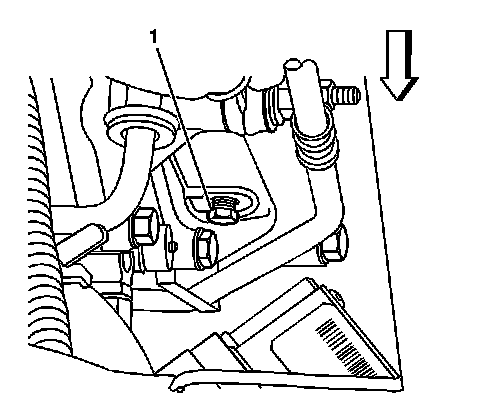

2. Remove the oil pressure test plug (1).

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the oil pressure test plug (1).

Tighten the oil pressure test plug to 12 Nm (106 lb in).

2. Install the throttle body air inlet duct. Refer to Air Cleaner Outlet Duct Replacement (Service and Repair).
