Shifter A/T: Diagrams




Component Connector End Views

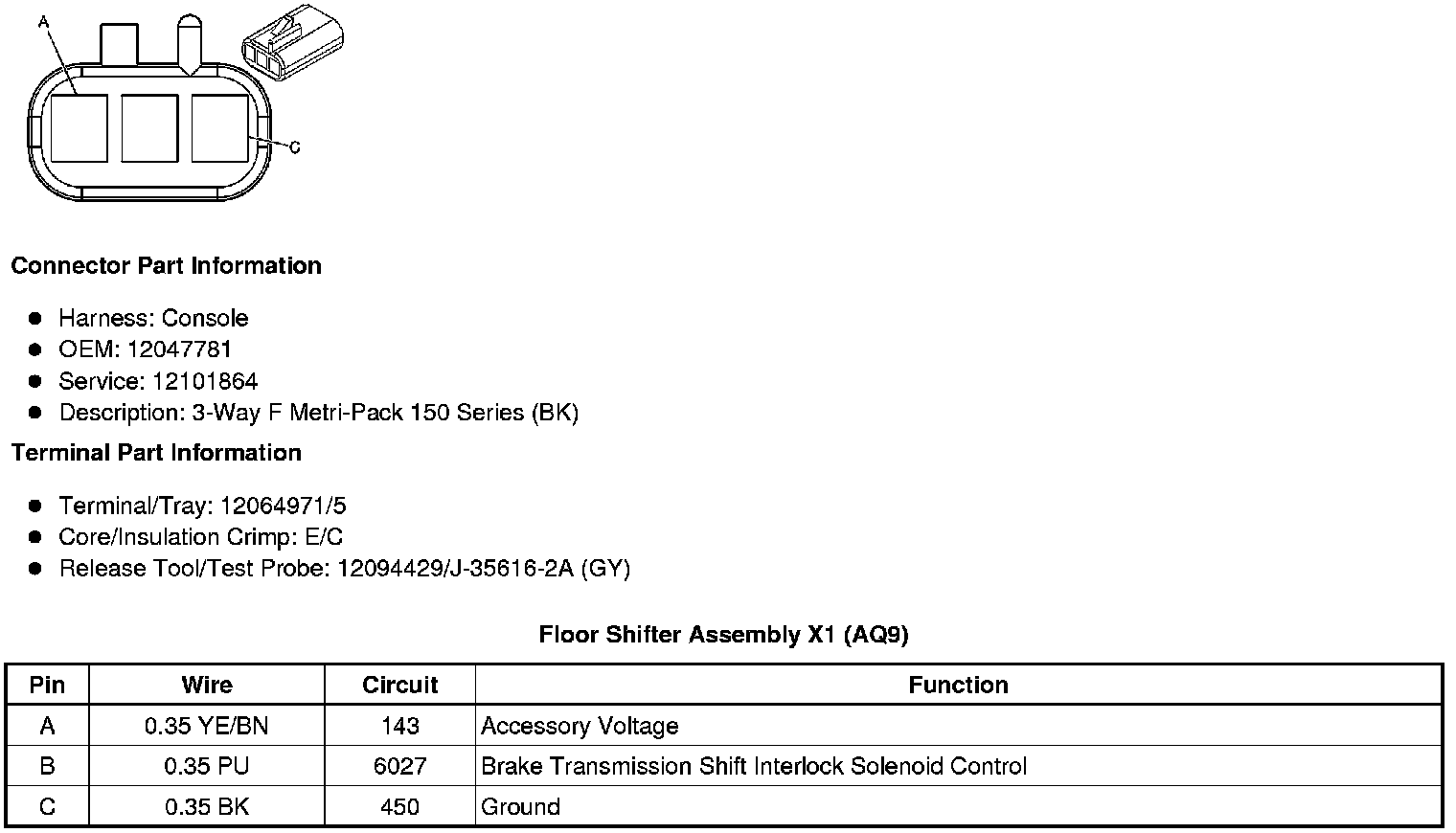

Floor Shifter Assembly X1 (AQ9)

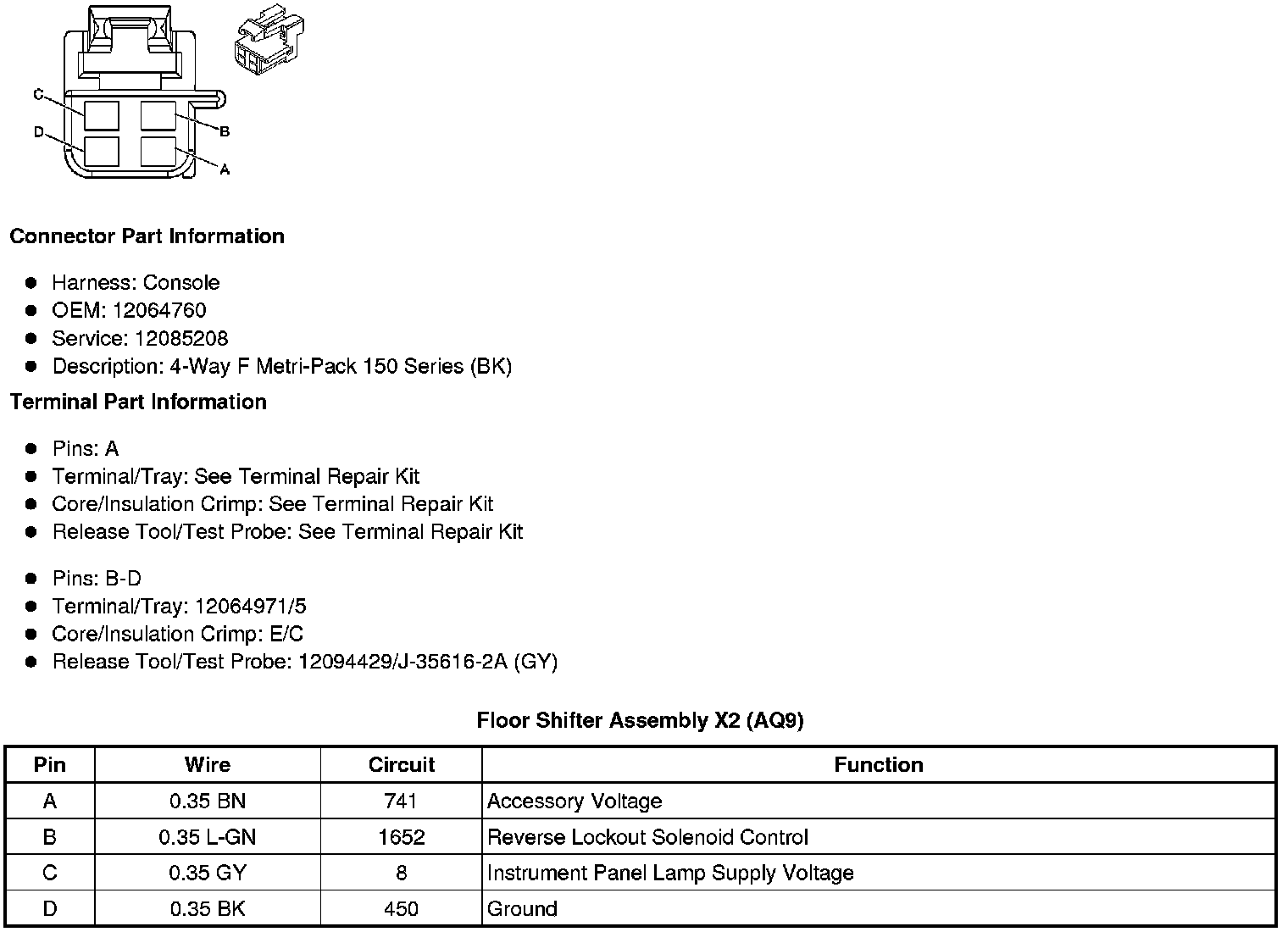

Floor Shifter Assembly X2 (AQ9)
