9. Final Drive Carrier, Sun and Internal Gear Removal

Final Drive Carrier, Sun and Internal Gear Removal




1. Rotate the transmission so the final drive carrier (100) faces up.

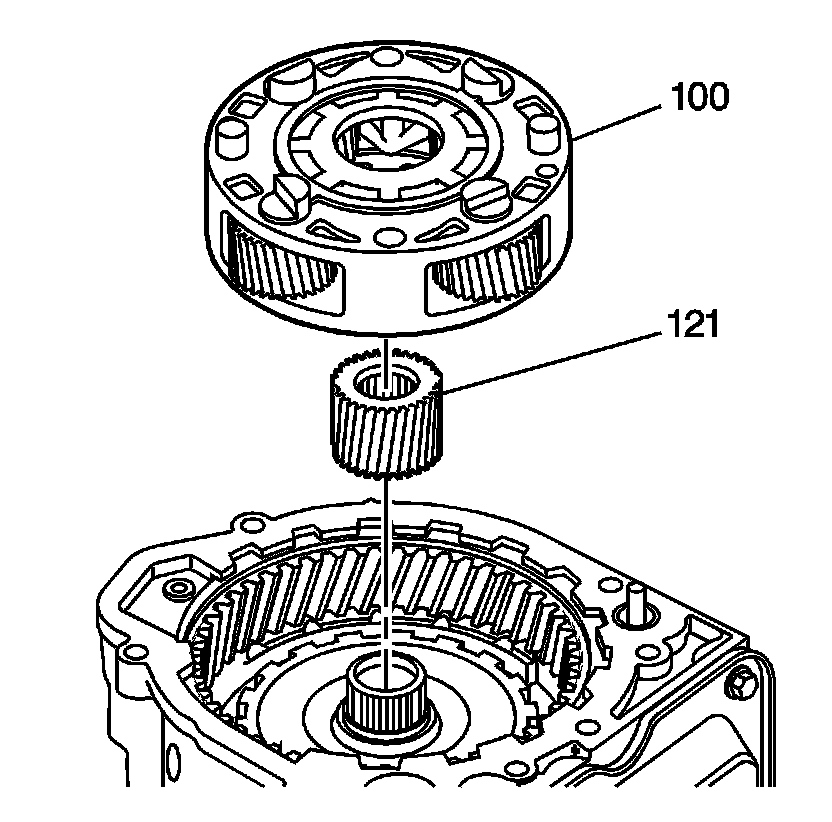

2. Remove the final drive carrier and the thrust bearing (100).
3. Remove the final drive sun gear (121).

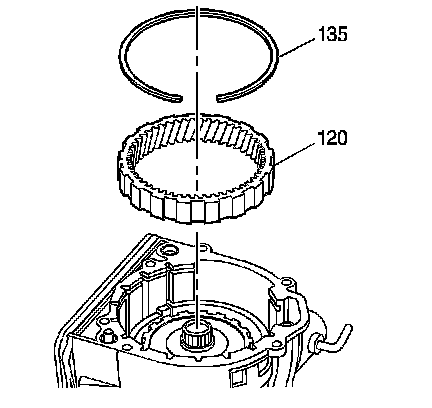

4. Remove the final drive internal gear snap ring (135).
5. Remove the final drive internal gear (120).
