71. Scavenge Pipe Installation

Scavenge Pipe Installation

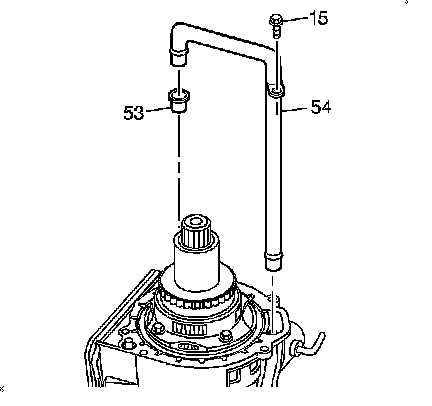

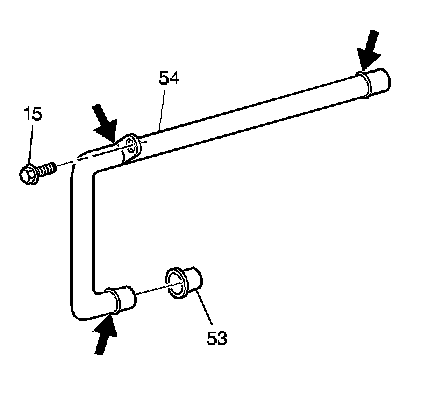

1. Inspect the scavenge tube (54) for damage and clogging.




2. Install the scavenge tube seal (53) into the case.
3. Install the scavenge tube (54) into the scavenge tube seals (53) located in the case and in the driven sprocket support. Tap the scavenge tube (54) lightly with a plastic hammer to ensure a tight fit in both seals.

Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the scavenge tube bolt (15) and tighten to 8-14 Nm (6-10 lb ft).
