7. Front Differential Case Removal

Front Differential Case Removal

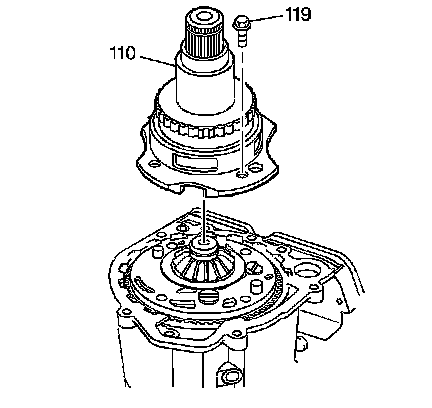

1. Rotate the manual shaft (16) counterclockwise in order to place the transmission in Park and prevent the differential from rotating.




2. Remove the four 15-mm differential bolts (119).
3. Remove the differential carrier (110).
