67. Final Drive Carrier Inspect

Final Drive Carrier Inspect




1. Inspect the pinion gear teeth for chips or damage.

Note: The final drive carrier (100) must be replaced if the gears are out of specification.

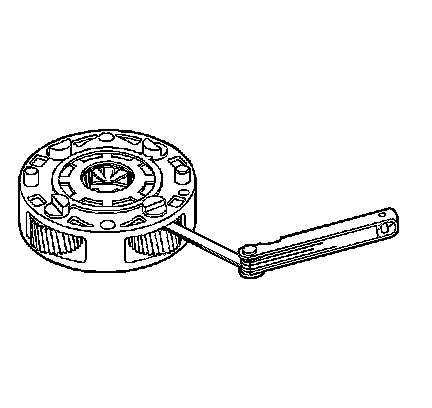

2. Inspect the final drive planet pinion to carrier clearance. The final drive planet pinion to carrier clearance should be 0.20-0.30 mm (0.008-0.012 in).
