51. Secondary Pump Disassemble

Secondary Pump Disassemble

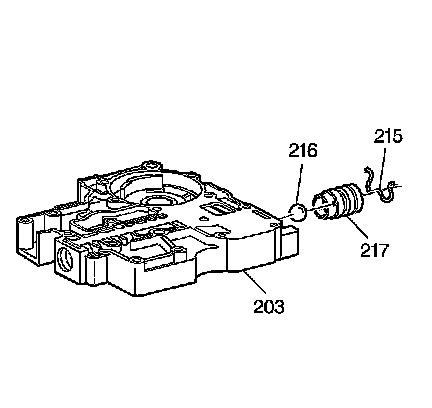

1. Remove the following parts:

* The retainer clip (215)
* The pump ball seat (217)
* The cut off ball (216)

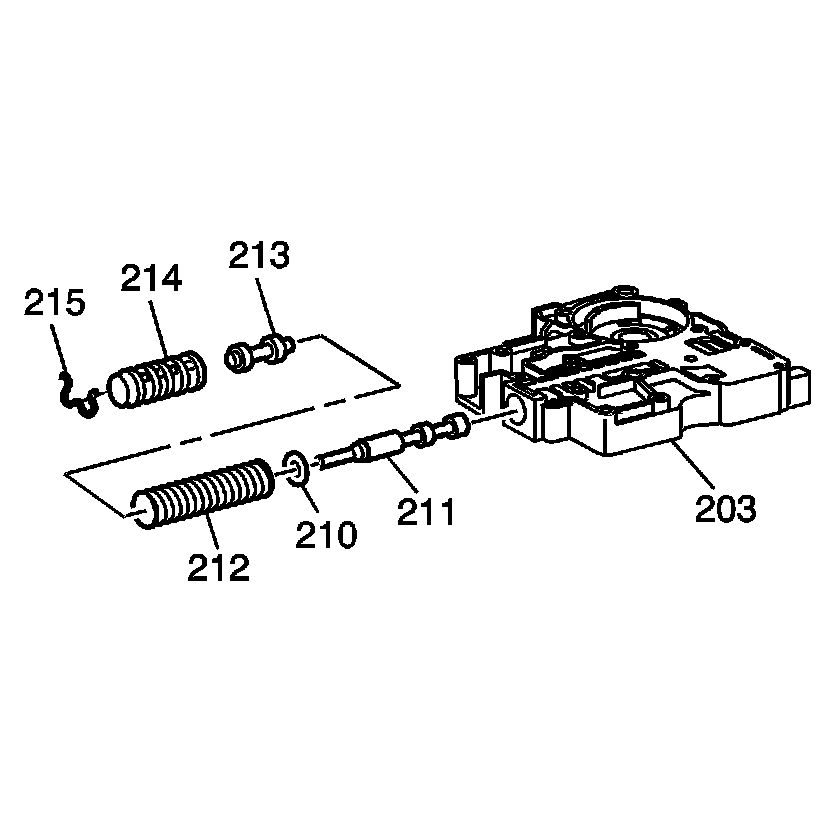

2. Remove the following parts:

* The retainer clip (215)
* The pressure regulator boost valve sleeve (214)
* The pressure regulator boost valve (213)
* The pressure regulator valve spring (212)
* The pressure regulator spring retainer (210)
* The pressure regulator valve (211)
