38. Second Clutch Plates Installation

Second Clutch Plates Installation

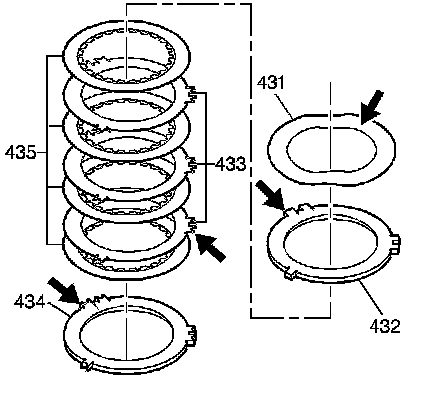

1. Inspect the second clutch wave plate (431) and all of the steel plates (433) for burning or damage.

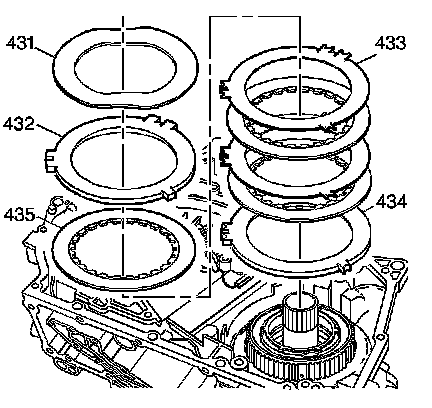

2. Install the following parts:

1. The second clutch backing plate (434) with flat side facing up
2. The four fiber clutch plates (435)
3. The four steel clutch plates (433)
4. The backing plate (432)
5. The wave plate (431)
