3. Vehicle Speed Sensor and Transmission Fluid Cooler Pipe Fitting Removal

Vehicle Speed Sensor and Transmission Fluid Cooler Pipe Fitting Removal




1. Remove the 10 mm bolt (131) from the output shaft speed sensor.
2. Remove the output shaft speed sensor and seal (130).

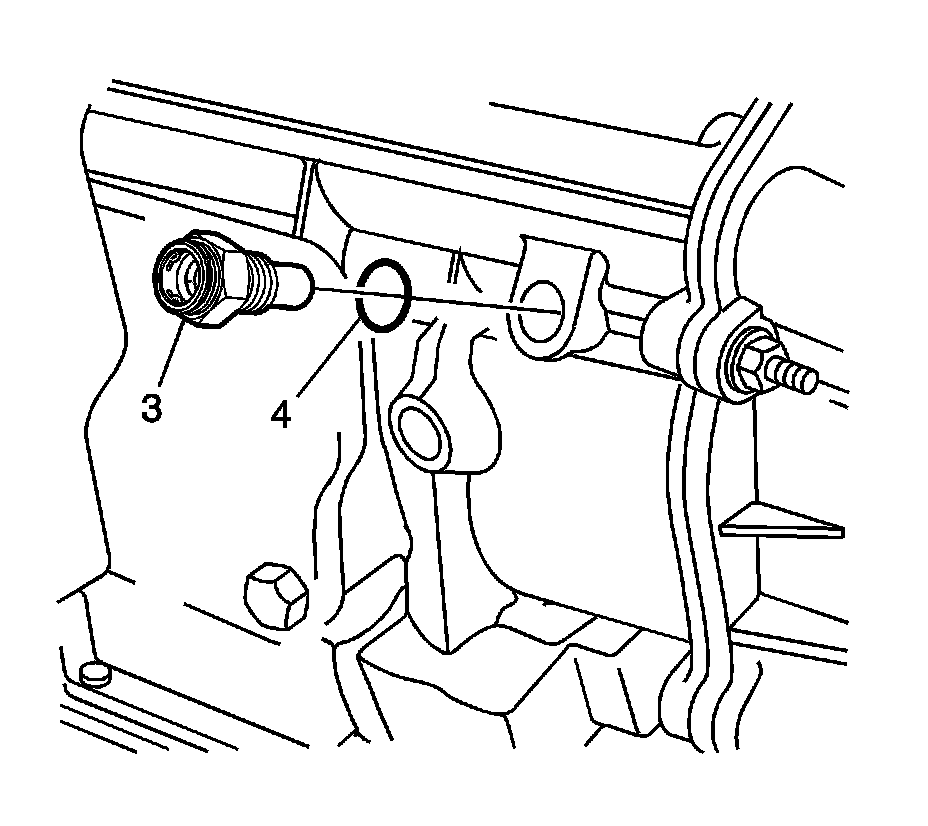

3. Remove the 19 mm cooler line fitting (3) and seal (4).
