18. Second Clutch Plates and Reverse Clutch Removal

Second Clutch Plates and Reverse Clutch Removal

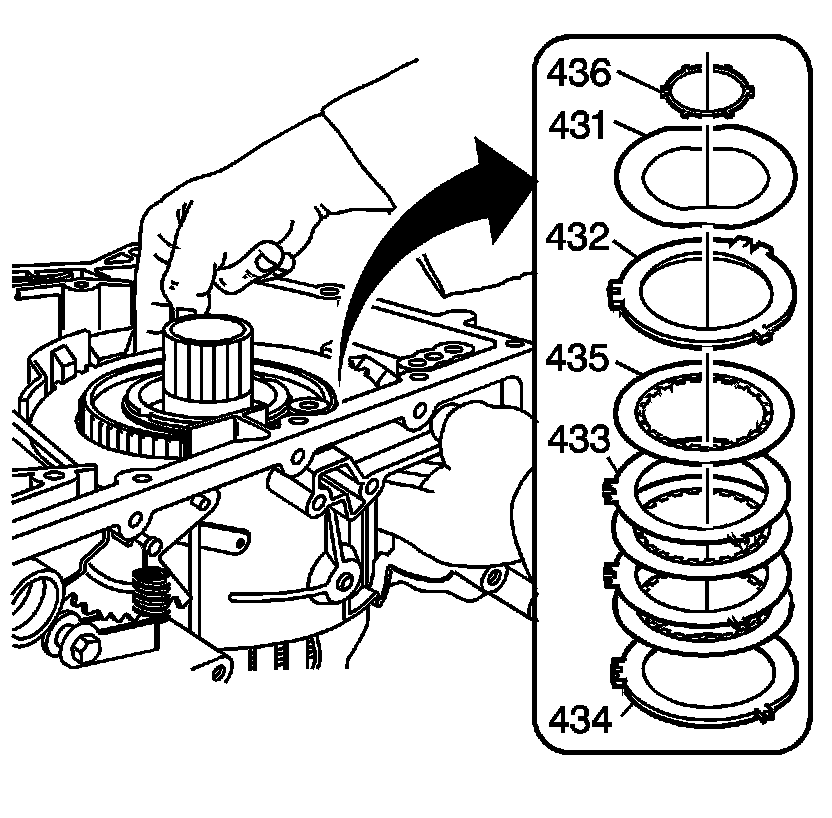

1. Remove the second clutch steel assembly (431-435). Push up near the scavenge tube channel and the bottom pan side.
2. Remove the reverse clutch support thrust washer (436).
