Park Gear: Service and Repair

Parking Gear Replacement

Removal Procedure




1. Remove the final drive assembly. Refer to Final Drive Assembly Replacement (Final Drive Assembly Replacement).

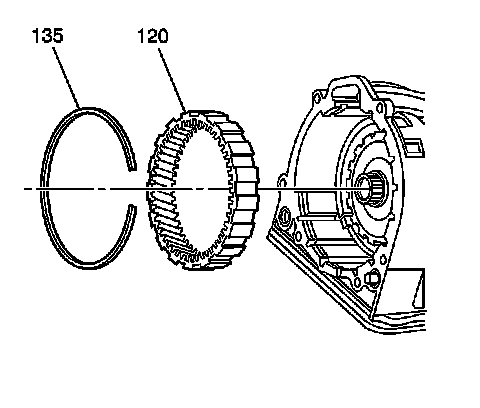

2. Remove the final drive internal gear snap ring (135).
3. Remove the final drive internal gear.
4. Remove snap ring from park gear.
5. Remove park gear from housing.

Installation Procedure

1. Install park gear into housing.
2. Install the snap ring.




3. Install the final drive internal gear.
4. Install the final drive internal gear snap ring (135).
5. Install the final drive assembly. Refer to Final Drive Assembly Replacement (Final Drive Assembly Replacement)
